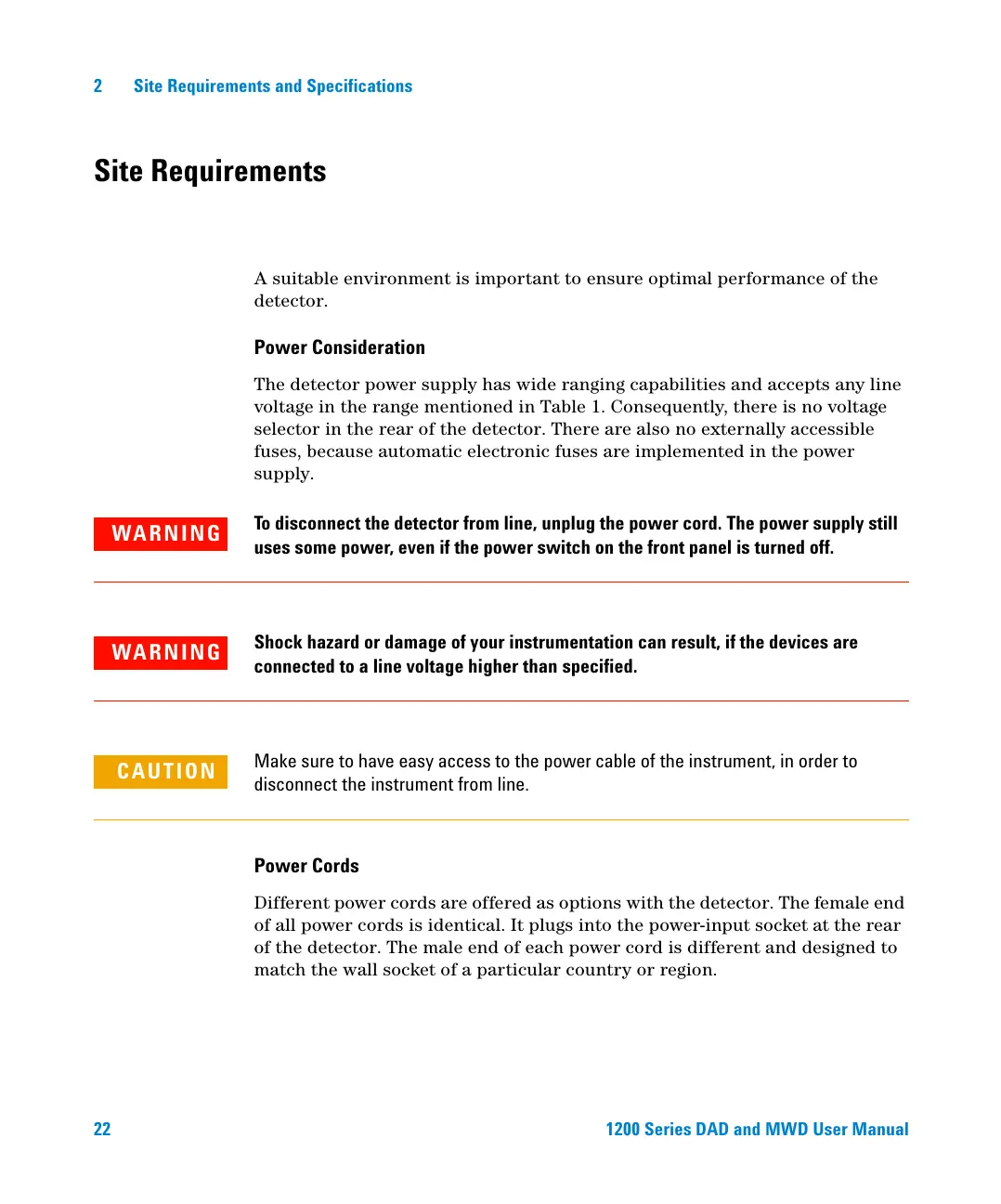

22 1200 Series DAD and MWD User Manual
2 Site Requirements and Specifications
Site Requirements
A suitable environment is important to ensure optimal performance of the
detector.
Power Consideration
The detector power supply has wide ranging capabilities and accepts any line
voltage in the range mentioned in Table 1. Consequently, there is no voltage
selector in the rear of the detector. There are also no externally accessible
fuses, because automatic electronic fuses are implemented in the power
supply.
Power Cords
Different power cords are offered as options with the detector. The female end
of all power cords is identical. It plugs into the power-input socket at the rear
of the detector. The male end of each power cord is different and designed to
match the wall socket of a particular country or region.
WARNING
To disconnect the detector from line, unplug the power cord. The power supply still
uses some power, even if the power switch on the front panel is turned off.
WARNING
Shock hazard or damage of your instrumentation can result, if the devices are
connected to a line voltage higher than specified.
CAUTION
Make sure to have easy access to the power cable of the instrument, in order to
disconnect the instrument from line.
