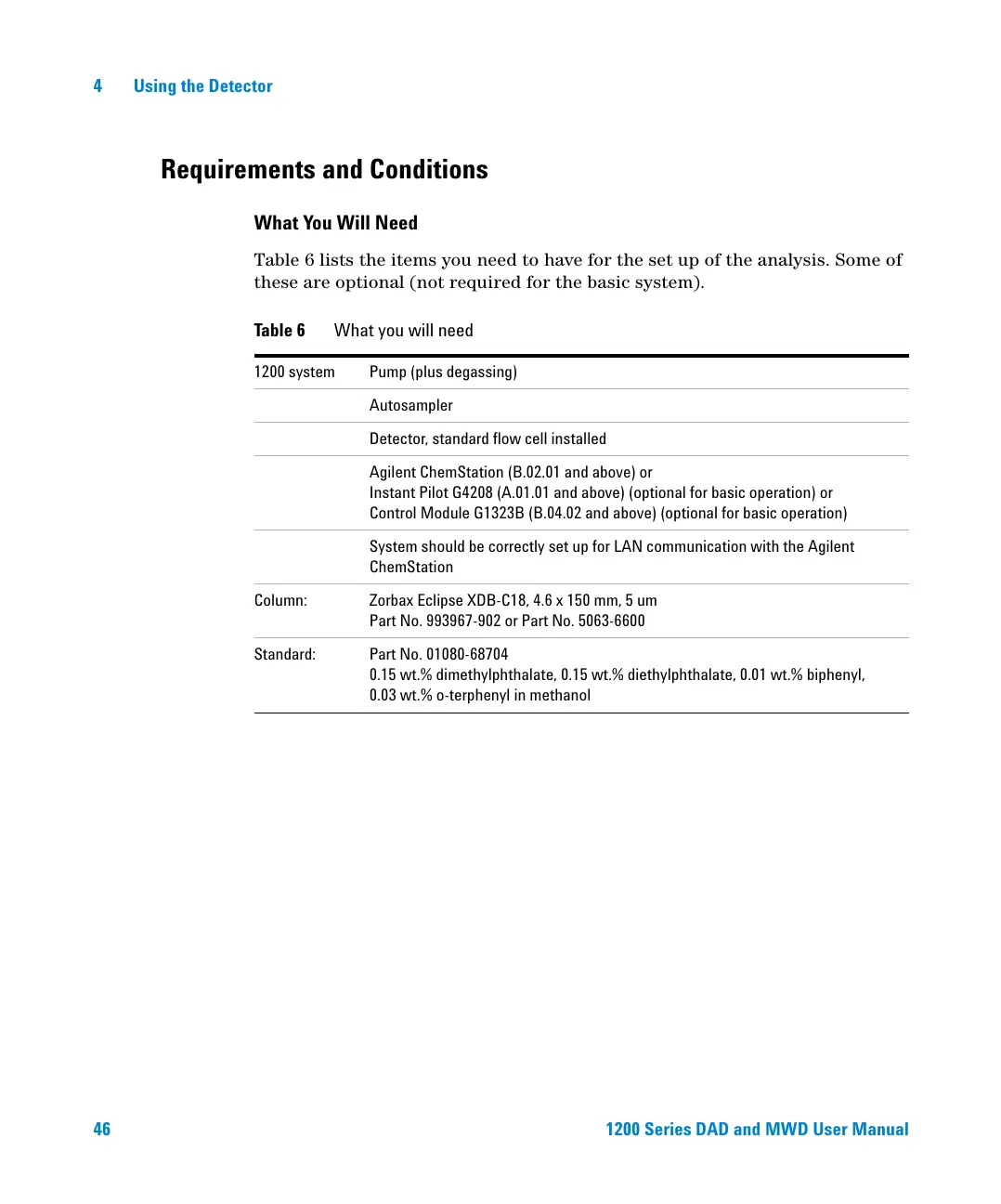

46 1200 Series DAD and MWD User Manual
4Using the Detector
Requirements and Conditions
What You Will Need
Table 6 lists the items you need to have for the set up of the analysis. Some of
these are optional (not required for the basic system).
Tab le 6 What you will need
1200 system Pump (plus degassing)
Autosampler
Detector, standard flow cell installed
Agilent ChemStation (B.02.01 and above) or
Instant Pilot G4208 (A.01.01 and above) (optional for basic operation) or
Control Module G1323B (B.04.02 and above) (optional for basic operation)
System should be correctly set up for LAN communication with the Agilent
ChemStation
Column: Zorbax Eclipse XDB-C18, 4.6 x 150 mm, 5 um
Part No. 993967-902 or Part No. 5063-6600
Standard: Part No. 01080-68704
0.15 wt.% dimethylphthalate, 0.15 wt.% diethylphthalate, 0.01 wt.% biphenyl,
0.03 wt.% o-terphenyl in methanol
