Installing the Detector 3
Installing the Detector
1 Install the LAN interface board in the detector (if required), see “Replacing
the Interface Board” on page 133.
2 Place the detector in the stack or on the bench in a horizontal position.
3 Ensure the line power switch at the front of the detector is OFF.
Preparations Locate bench space
Provide power connections
Unpack the detector
Parts required Detector
Power cord, for other cables see below
ChemStation and/or Control Module G1323B or Instant Pilot G4208A

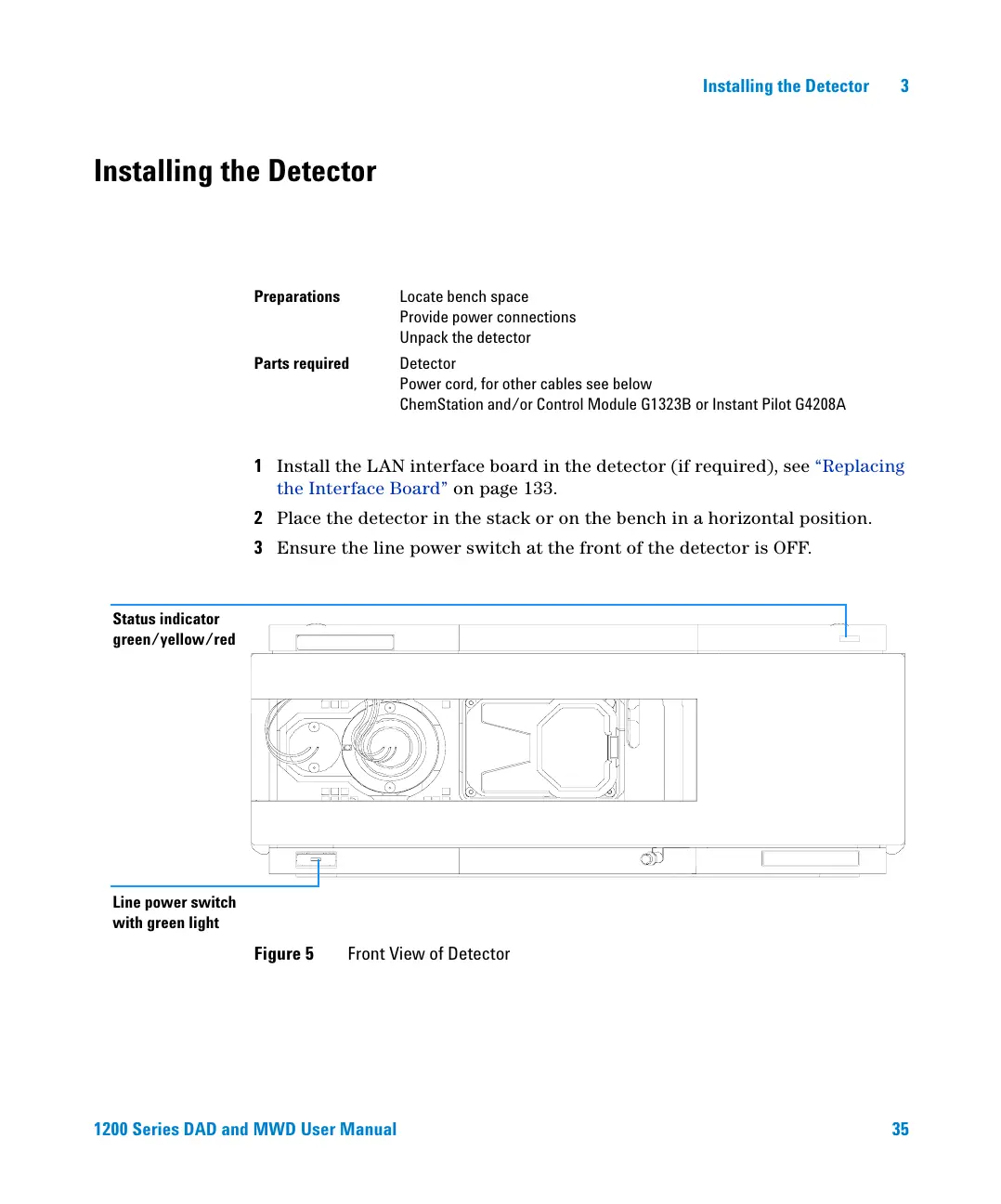

Figure 5 Front View of Detector
Line power switch
with green light
Status indicator
green/yellow/red
