18 1200 Series DAD and MWD User Manual
1 Introduction to the Detector

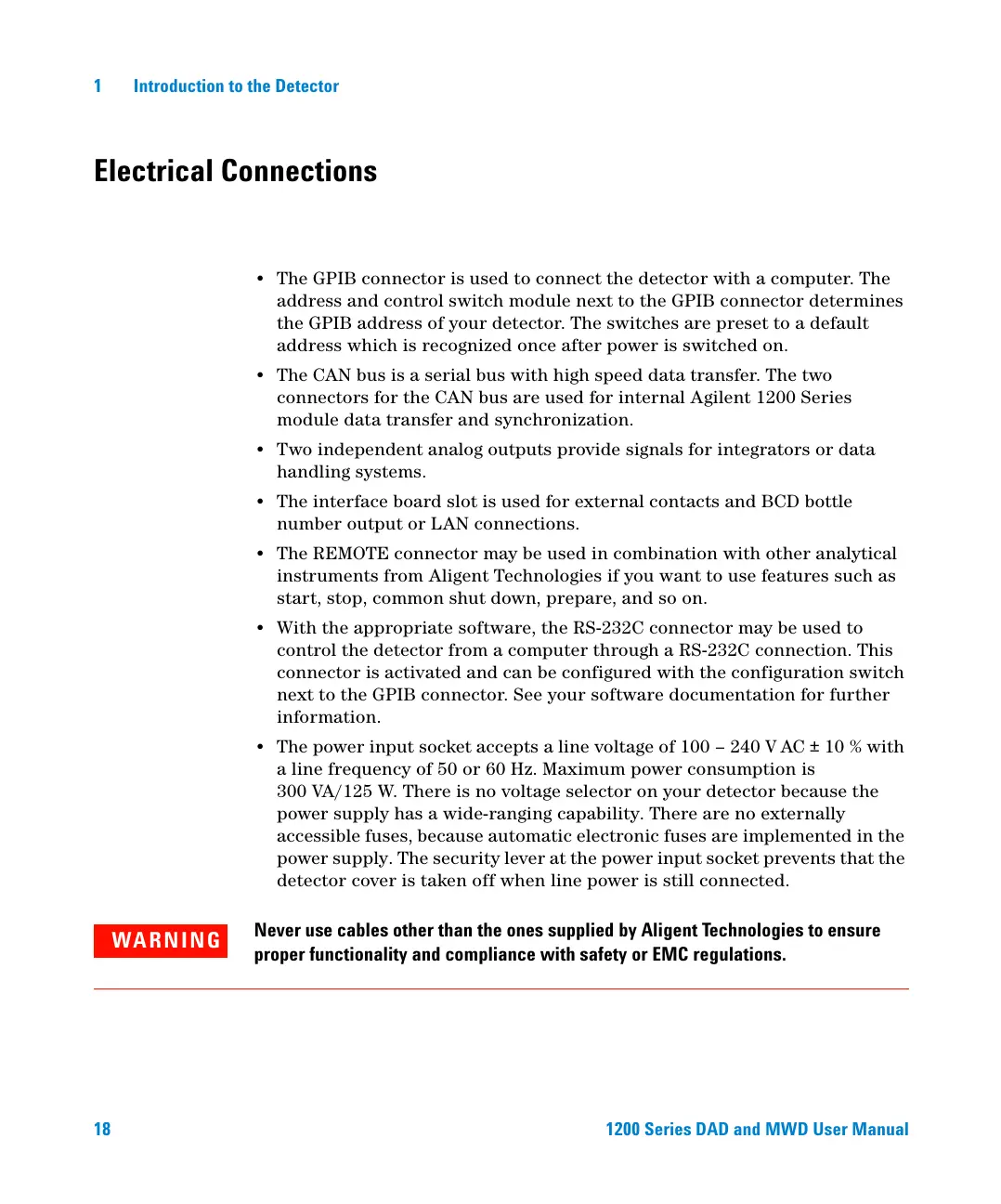

Electrical Connections
• The GPIB connector is used to connect the detector with a computer. The
address and control switch module next to the GPIB connector determines
the GPIB address of your detector. The switches are preset to a default
address which is recognized once after power is switched on.
• The CAN bus is a serial bus with high speed data transfer. The two
connectors for the CAN bus are used for internal Agilent 1200 Series
module data transfer and synchronization.
• Two independent analog outputs provide signals for integrators or data
handling systems.
• The interface board slot is used for external contacts and BCD bottle
number output or LAN connections.
• The REMOTE connector may be used in combination with other analytical
instruments from Aligent Technologies if you want to use features such as
start, stop, common shut down, prepare, and so on.
• With the appropriate software, the RS-232C connector may be used to
control the detector from a computer through a RS-232C connection. This
connector is activated and can be configured with the configuration switch
next to the GPIB connector. See your software documentation for further
information.
• The power input socket accepts a line voltage of 100 – 240 V AC ± 10 % with
a line frequency of 50 or 60 Hz. Maximum power consumption is
300 VA/125 W. There is no voltage selector on your detector because the
power supply has a wide-ranging capability. There are no externally
accessible fuses, because automatic electronic fuses are implemented in the
power supply. The security lever at the power input socket prevents that the
detector cover is taken off when line power is still connected.
WARNING
Never use cables other than the ones supplied by Aligent Technologies to ensure
proper functionality and compliance with safety or EMC regulations.
