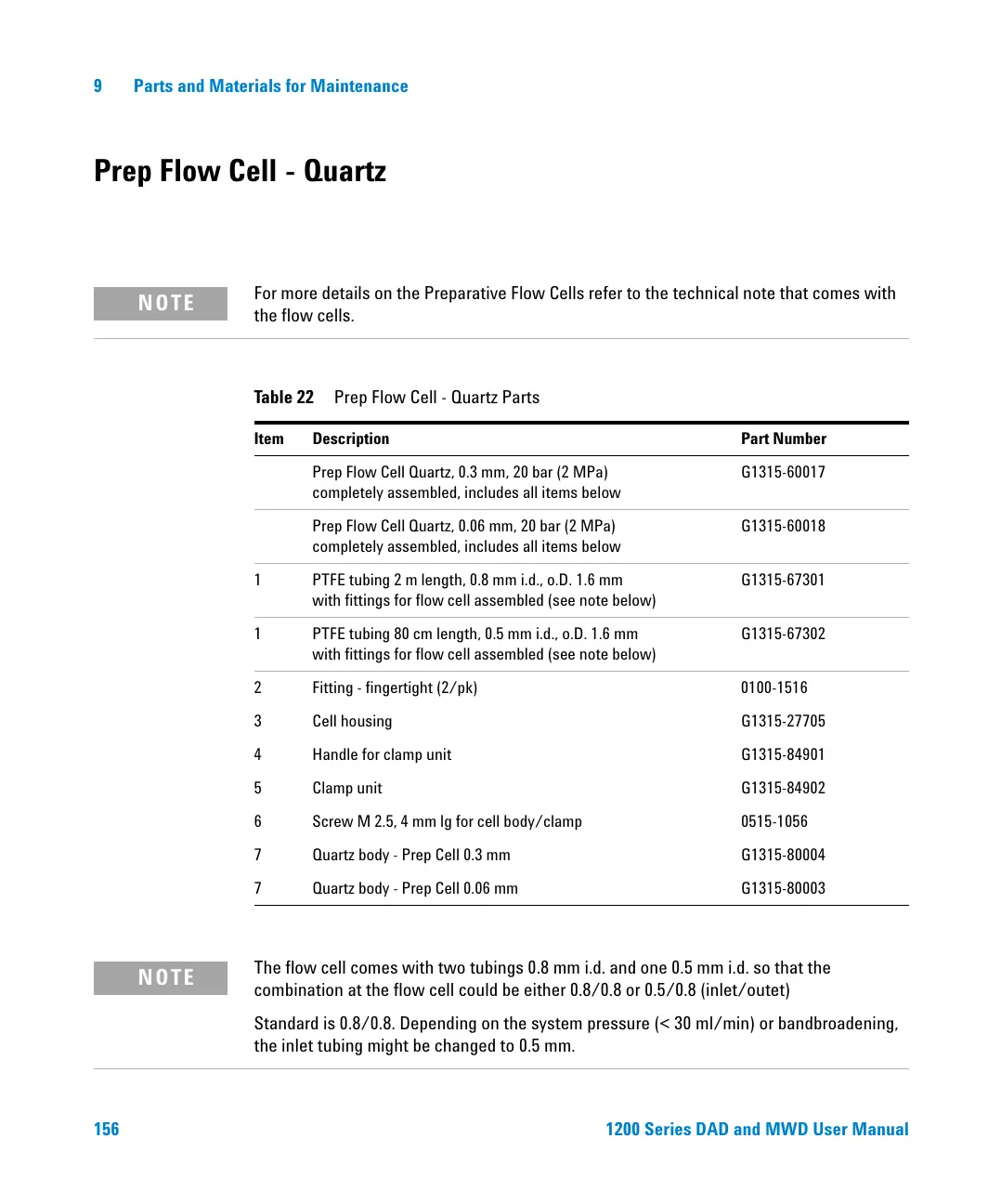

156 1200 Series DAD and MWD User Manual
9 Parts and Materials for Maintenance
Prep Flow Cell - Quartz
NOTE
For more details on the Preparative Flow Cells refer to the technical note that comes with
the flow cells.
Tab le 22 Prep Flow Cell - Quartz Parts
Item Description Part Number
Prep Flow Cell Quartz, 0.3 mm, 20 bar (2 MPa)
completely assembled, includes all items below
G1315-60017
Prep Flow Cell Quartz, 0.06 mm, 20 bar (2 MPa)
completely assembled, includes all items below
G1315-60018
1 PTFE tubing 2 m length, 0.8 mm i.d., o.D. 1.6 mm
with fittings for flow cell assembled (see note below)
G1315-67301
1 PTFE tubing 80 cm length, 0.5 mm i.d., o.D. 1.6 mm
with fittings for flow cell assembled (see note below)
G1315-67302
2 Fitting - fingertight (2/pk) 0100-1516
3 Cell housing G1315-27705
4 Handle for clamp unit G1315-84901
5 Clamp unit G1315-84902
6 Screw M 2.5, 4 mm lg for cell body/clamp 0515-1056
7 Quartz body - Prep Cell 0.3 mm G1315-80004
7 Quartz body - Prep Cell 0.06 mm G1315-80003
NOTE
The flow cell comes with two tubings 0.8 mm i.d. and one 0.5 mm i.d. so that the
combination at the flow cell could be either 0.8/0.8 or 0.5/0.8 (inlet/outet)
Standard is 0.8/0.8. Depending on the system pressure (< 30 ml/min) or bandbroadening,
the inlet tubing might be changed to 0.5 mm.
