150 1200 Series DAD and MWD User Manual
9 Parts and Materials for Maintenance

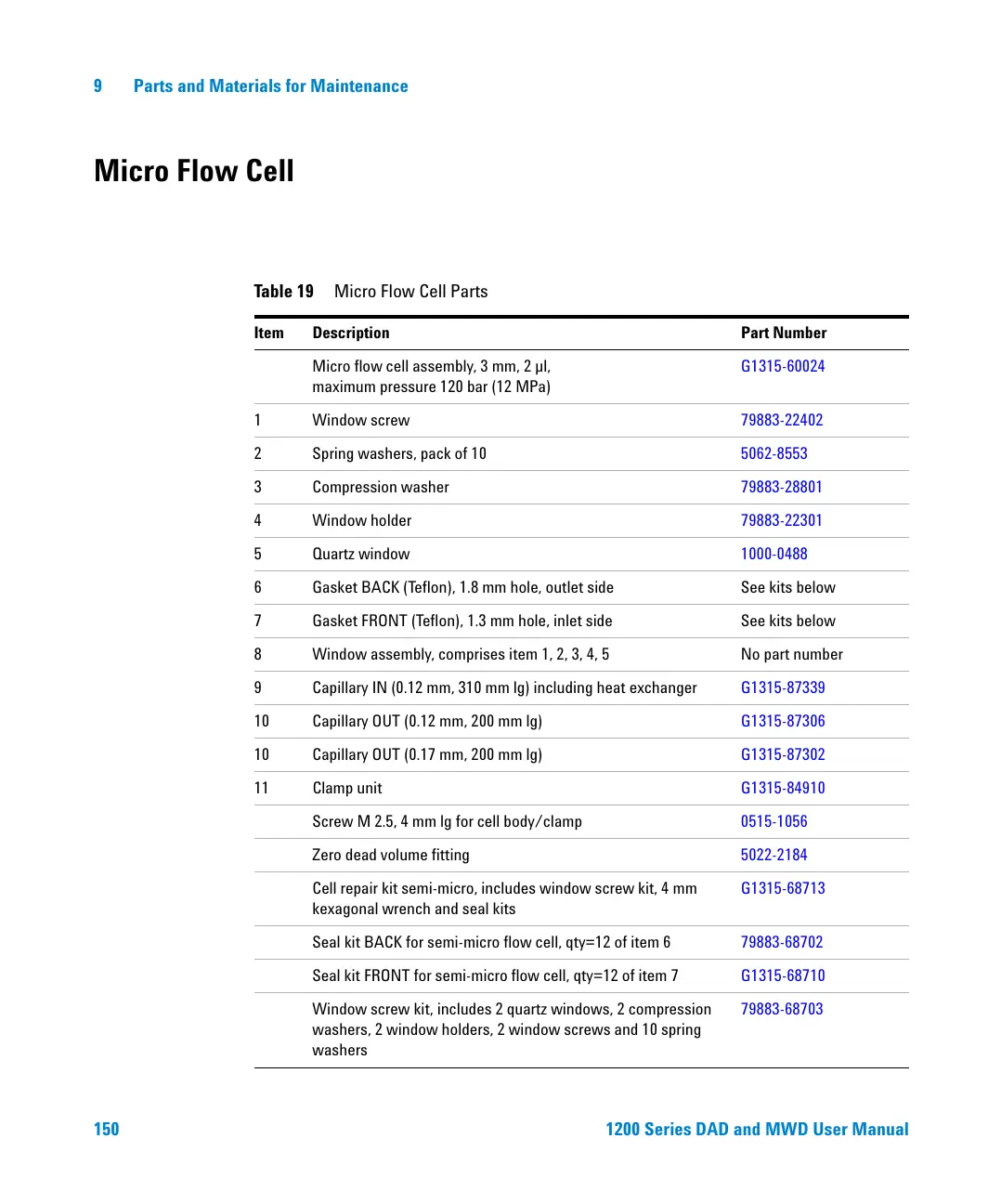

Micro Flow Cell
Tab le 19 Micro Flow Cell Parts
Item Description Part Number
Micro flow cell assembly, 3 mm, 2 µl,
maximum pressure 120 bar (12 MPa)
G1315-60024
1Window screw 79883-22402
2 Spring washers, pack of 10 5062-8553
3 Compression washer 79883-28801
4 Window holder 79883-22301
5 Quartz window 1000-0488
6 Gasket BACK (Teflon), 1.8 mm hole, outlet side See kits below
7 Gasket FRONT (Teflon), 1.3 mm hole, inlet side See kits below
8 Window assembly, comprises item 1, 2, 3, 4, 5 No part number
9 Capillary IN (0.12 mm, 310 mm lg) including heat exchanger G1315-87339
10 Capillary OUT (0.12 mm, 200 mm lg) G1315-87306
10 Capillary OUT (0.17 mm, 200 mm lg) G1315-87302
11 Clamp unit G1315-84910
Screw M 2.5, 4 mm lg for cell body/clamp 0515-1056
Zero dead volume fitting 5022-2184
Cell repair kit semi-micro, includes window screw kit, 4 mm
kexagonal wrench and seal kits
G1315-68713
Seal kit BACK for semi-micro flow cell, qty=12 of item 6 79883-68702
Seal kit FRONT for semi-micro flow cell, qty=12 of item 7 G1315-68710
Window screw kit, includes 2 quartz windows, 2 compression
washers, 2 window holders, 2 window screws and 10 spring
washers
79883-68703
