34 1200 Series DAD and MWD User Manual
3 Installing the Detector

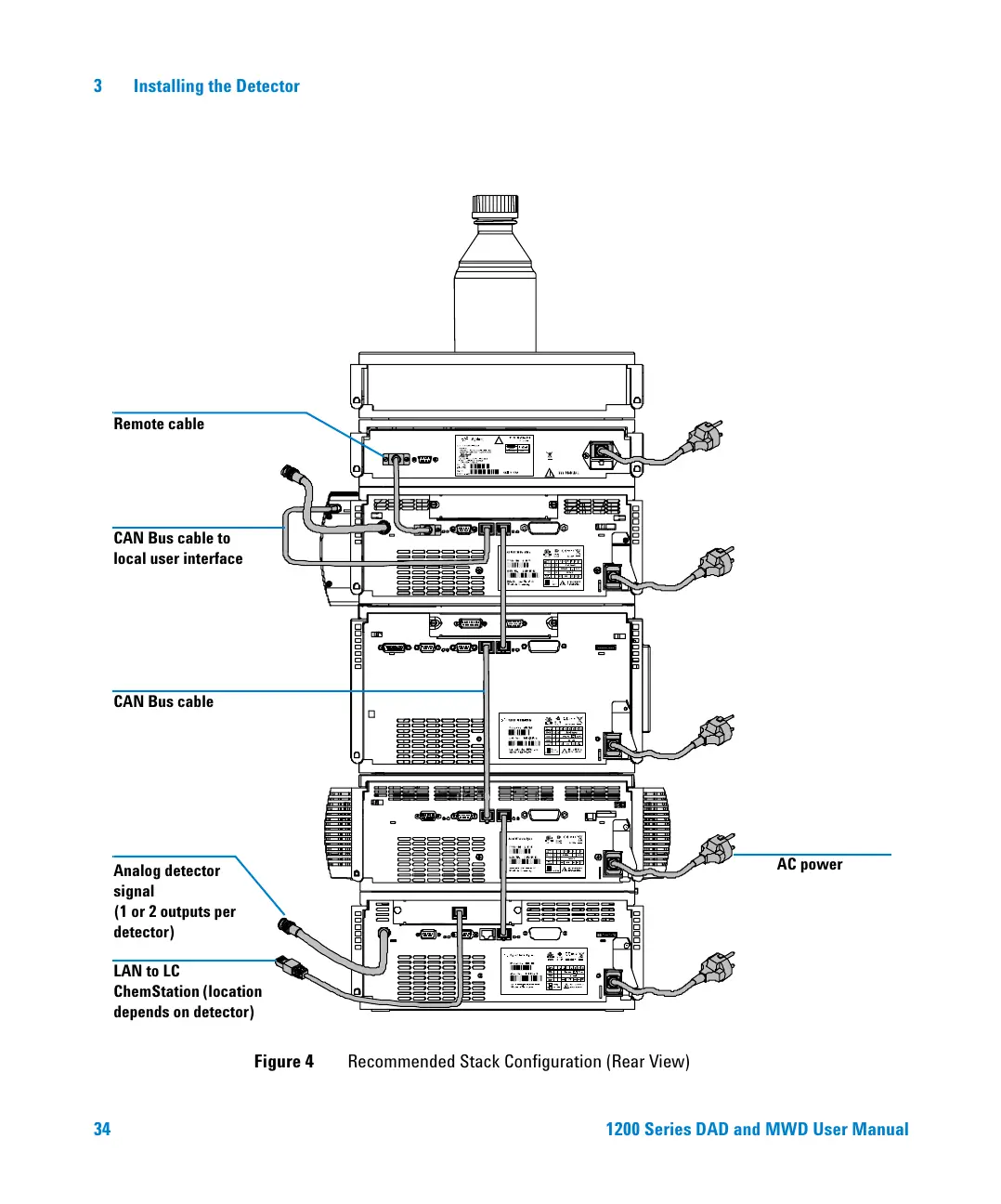

Figure 4 Recommended Stack Configuration (Rear View)
LAN to LC
ChemStation (location
depends on detector)
Remote cable
CAN Bus cable to
local user interface
CAN Bus cable
Analog detector
signal
(1 or 2 outputs per
detector)
AC power
