1200 Series DAD and MWD User Manual 41
Installing the Detector 3

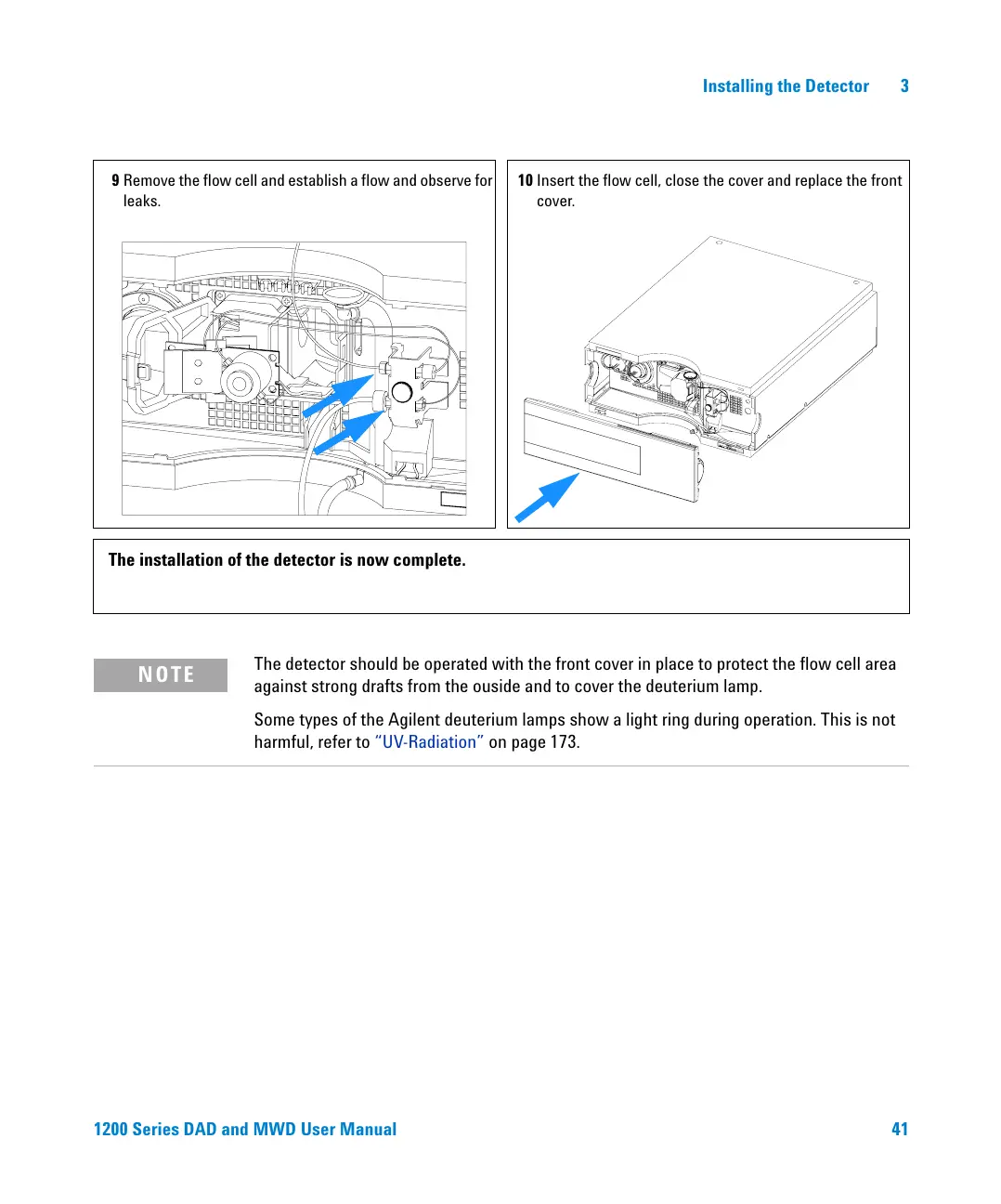

9 Remove the flow cell and establish a flow and observe for
leaks.
10 Insert the flow cell, close the cover and replace the front
cover.
The installation of the detector is now complete.
NOTE
The detector should be operated with the front cover in place to protect the flow cell area
against strong drafts from the ouside and to cover the deuterium lamp.
Some types of the Agilent deuterium lamps show a light ring during operation. This is not
harmful, refer to “UV-Radiation” on page 173.
