Installation
NovoCyte Quanteon Flow Cytometer Operator's Guide 55
NovoCyte Fluidics Station II to the ports at the back of the instrument. These ports
are labeled with NovoRinse, NovoFlow, NovoClean, Waste 1, and Waste 2,
respectively. NovoRinse is the rinsing solution and is connected by the blue tubing.
NovoFlow is the sheath fluid and is connected by the green tubing. NovoClean is
the decontamination solution and is connected by the yellow tubing. Waste 1 and
Waste 2 connect to the red tubing.

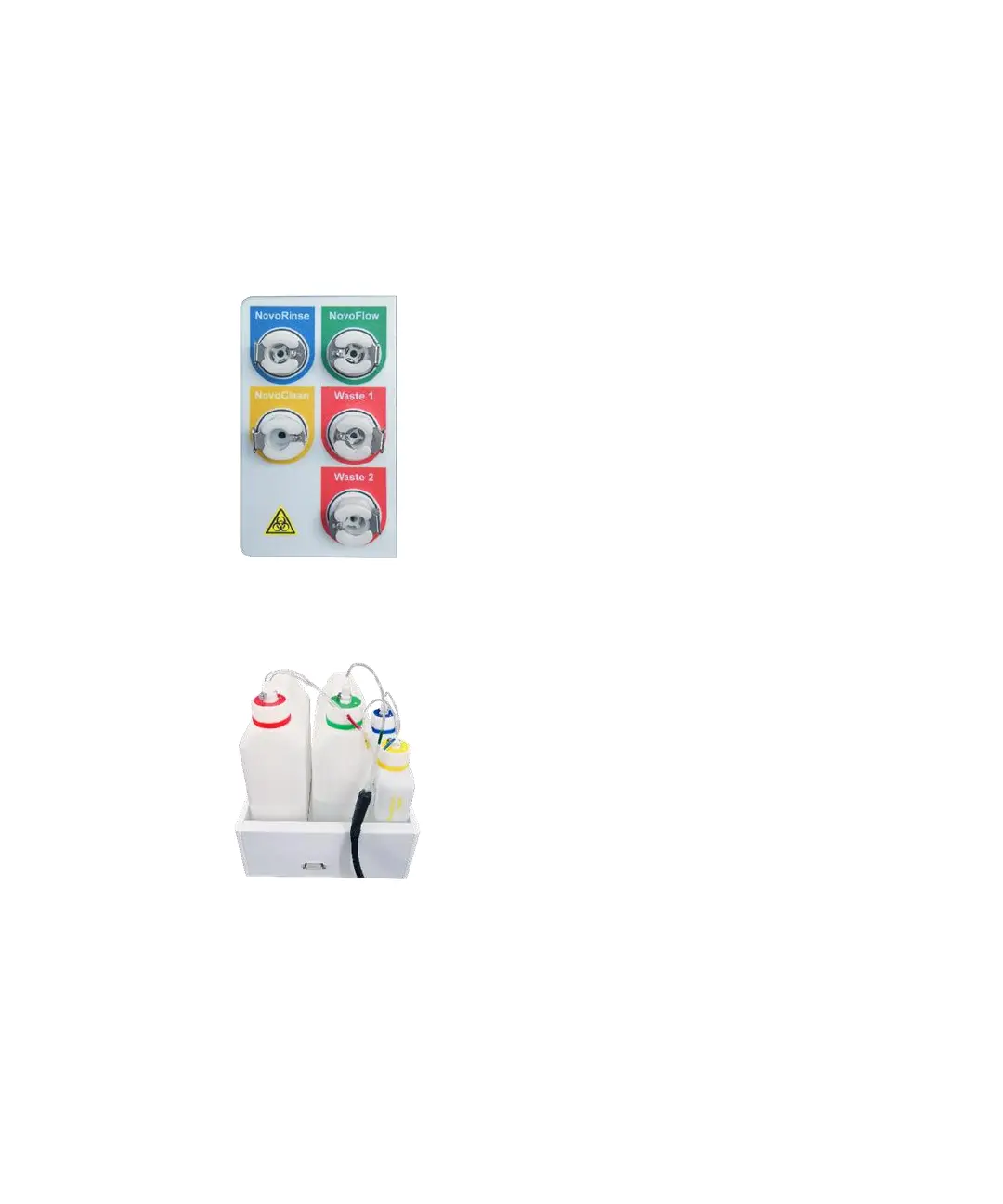

Figure 25. Interface of the Fluidics Ports
The reagent containers are connected through the same color coded tubing to the
ports at the back of the NovoCyte Quanteon instrument, as shown in Figure 26.
Figure 26. Tubing Connections of the Reagent Containers
Connect NovoCyte Fluidics Cart (Optional)
Please refer to NovoCyte Fluidics Cart Operator's Guide for the detailed procedure.
Connect NovoSampler Q (Optional)
Please refer to NovoSampler Q Operator’s Guide for the detailed procedure.
