AIREDALE EasiCool - Page 141

EasiCoolPrecision Air Conditioning
0
100
200
300
400
500
600
700
800
900
0.00 0.50 1.00 1.50 2.00 2.50 3.00 3.50 4.00 4.50 5.00 5.50 6.00
Static Pressure [Pa]
AirFlow [m
3
/s]

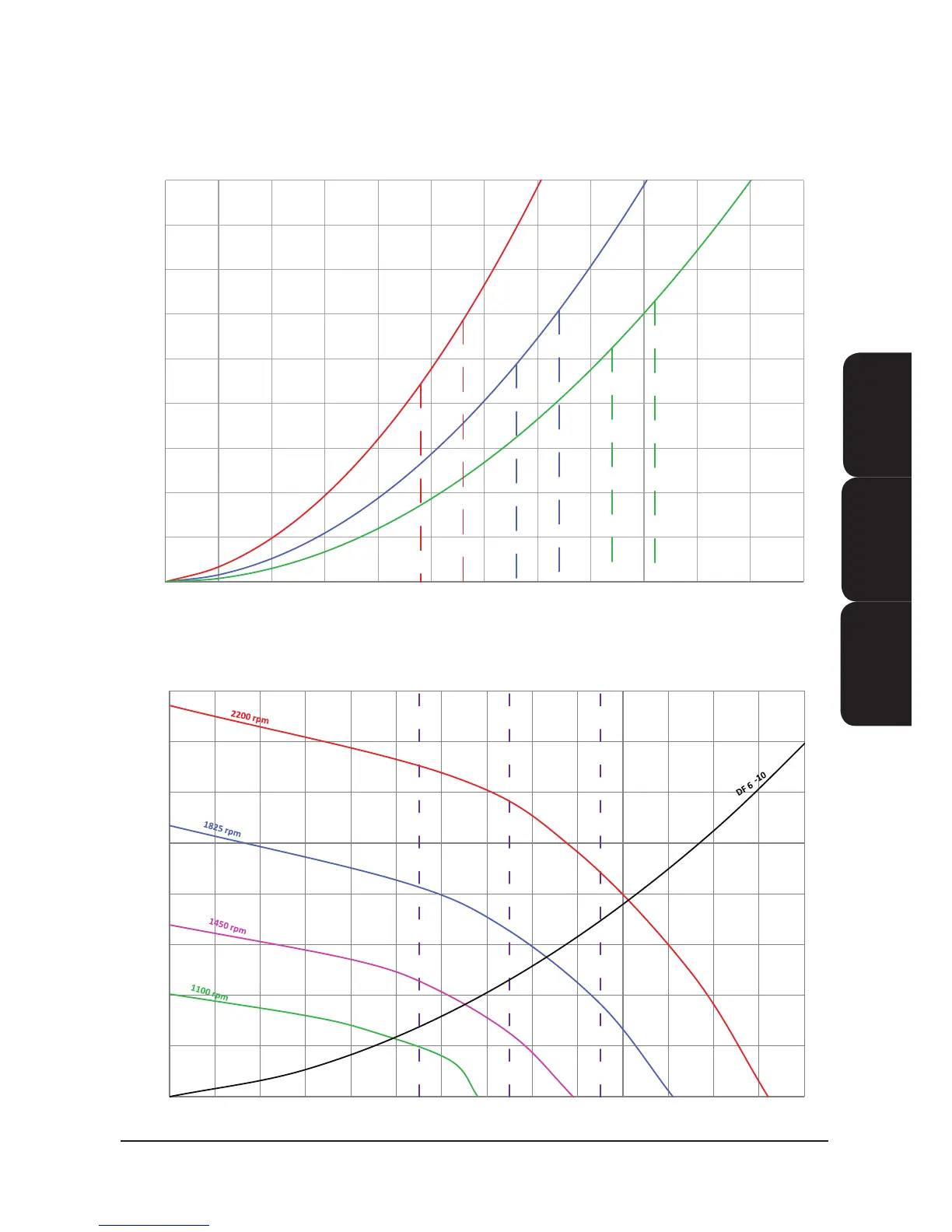

V 28-60 - EC Forward Fan Curve
V 28 - 31
V 35 -45
V 50- 60
V 28
V 31
V 35
V 40/45
V 50/55
V 60
0
100
200
300
400
500
600
700
800
0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40
Static Pressure [Pa]
Air Volume [m
3
/s]
DF6 -10 EC Backward Fan Curve
DF6
DF8
DF10
V28 - 60 - EC Forward Fan Curve
DF6 - 10 - EC Backward Fan Curve
EZRE Direct Expansion 400V 50Hz (-0)
141
EasiCool Technical Manual 7525389 V1.8.0_05_2016
