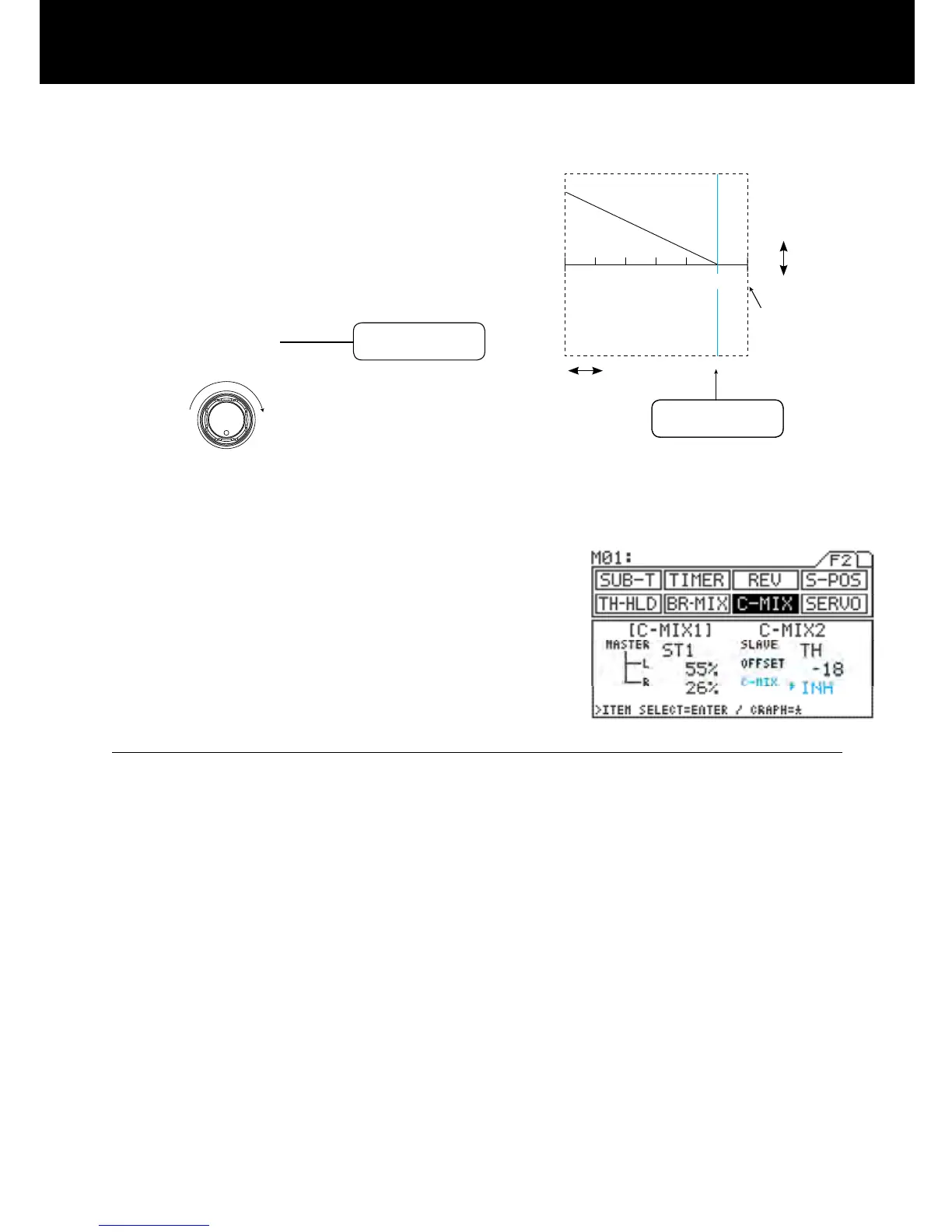

-150 -100 -50 0 50 100 150
MASTER
H
B
H L
H 50%
L 0%
MAX0
(DIAL)
SLAVE
(2) Adjusting the master mixing origin so that that no
mixing occurs when the dial (AUX) is turned fully to
the left, but maximum mixing occurs when it is turned
fully to the right.
6) Setting INH/ACT for C-MIX
Move u to the right of C-MIX with the ENTER key,
and then select INH or ACT by pressing the Inc.+
or Dec.- key.
IMPORTANT
- About the INH/ACT setting of C-MIX
The INH/ACT setting of C-MIX can be changed using the key assign switch as well as through the menus. Using
this function, adjustment is possible from any menu, C-MIX “ON” or “OFF” can be easily adjusted with the selected
switch even during operation.
NOTE
* When the slave and master are both on the same channel, mixing takes place within the channel itself, causing
the steering angle to increase for positive values, and to decrease for negative values. By switching mixing ON
and OFF, you may want to choose with desired feeling of the steering during the driving.
Since no operation occurs beyond 100
when the master channel is AUX1, this
can be set to 100.
This is set to 0% because no operation
results on the L side with an offset.
