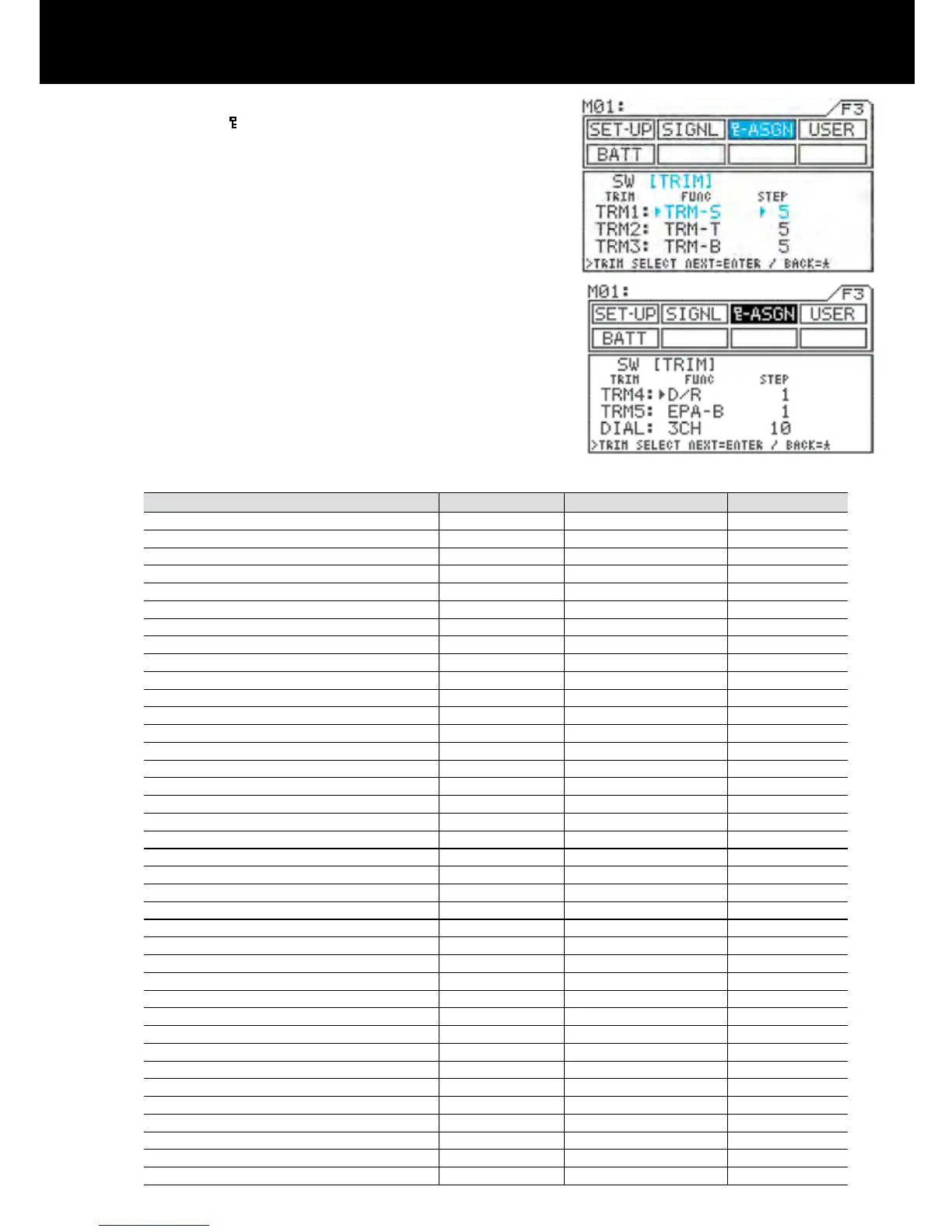

Page 49
1) Using the function select keys, move the cursor to
[TRIM] in -ASGN.
2) Function selection
Using the H key or the ENTER keys, move u to the
trimmer function to be selected, and then select a
function by pressing the Inc.+ or Dec.- key.
3) Setting the number of steps
Using the H key or the ENTER keys, move u to
the STEP for the trimmer you want to adjust, and
then set the number of steps by pressing the Inc.+
or Dec.- key.
* The number of steps determines the amount of
trim that is applied for one click of the trimmer
switch.
* Selectable functions and step ranges
Function Menu screen Constant display area Factory default
Dual rate D/R 1 - 10 [SW4]
End point adjustment, brake EPA-B 1 - 10 [SW5]
Exponential steering EX-S 1 - 10
Exponential throttle, high EX-H 1 - 10
Exponential throttle, brake EX-B 1 - 10
Adjustable rate control, steering rate AR-S-R 1 - 10
Adjustable rate control, steering point AR-S-P 1 - 10
Adjustable rate control, throttle high rate AR-H-R 1 - 10
Adjustable rate control, throttle brake rate AR-B-R 1 - 10
Adjustable rate control, throttle high point AR-H-P 1 - 10
Adjustable rate control, throttle brake point AR-B-P 1 - 10
Speed steering forward SP-S-F 1 - 10
Speed steering return SP-S-R 1 - 10
Speed steering point SP-S-P 1 - 10
Speed brake forward SP-B-F 1 - 10
Speed brake point SP-B-P 1 - 10
Anti-lock braking point ALB-PT 1 - 10
Anti-lock braking stroke ALB-ST 1 - 10
Anti-lock braking lag ALB-LG 1 - 10
Anti-lock braking speed ALB-SP 1 - 10
Traction control, traction TRC 1 - 10
Traction control, delay TRC-DY 1 - 10
Traction control, point TRC-PT 1 - 10
Starting position SPOS 1 - 10
Throttle hold HLD 1 - 10
Brake mixing delay, 2CH BM-2CH
1 - 10
Brake mixing delay, 3CH BM-3CH
1 - 10
Brake mixing delay, 4CH BM-4CH 1 - 10
Compensation mixing 1, offset CX1-OF 1 - 10
Compensation mixing 1, high CX1-Hi 1 - 10
Compensation mixing 1, low CX1-Lo 1 - 10
Compensation mixing 2, offset CX2-OF
1 - 10
Compensation mixing 2, high CX2-Hi
1 - 10
Compensation mixing 2, low CX2-Lo
1 - 10
Steering trim TRM-S 1 - 10 [TRM1]
Throttle trim TRM-T 1 - 10 [TRM2]
Brake trim TRM-B 1 - 10
3CH (AUX) 3CH
1 - 10,20,50,100,200
