PATCH
Here, you can patch internal audio sources to any of the DPS24’s outputs. Basically, in this page, any audio source
within the DPS24 can be assigned to any of the physical output connectors on the rear panel. The available audio
sources are:
INPUTS 1-12 SOLO L FX1 L (FX 1 output L)
TRACKS 1-24 SOLO R FX1 R (FX 1 output R)
ADC 1-12 FX SEND BUS 1 FX2 L (FX 2 output L)
DIGI L FX SEND BUS 2 FX2 R (FX 2 output R)
DIGI R FX SEND BUS3 FX3 L (FX 3 output L)
AUX IN L FX SEND BUS 4 FX3 R (FX 3 output R)
AUX IN R AUX SEND BUS 1 FX4 L (FX 4 output L)
2-TRACK IN L AUX SEND BUS 2 FX4 R (FX 4 output R)
2-TRACK IN R AUX SEND BUS 3 - - - - - (no assignment)
ADAT 1-8 AUX SEND BUS 4
GROUPS 1-8
Stereo L - default
Stereo R - default
STEREO OUTPUTS ASSIGN allows you set which of the above audio sources will appear at the STEREO outputs
(the default, of course, is ST L and ST R - stereo bus left and right).
AUX OUTPUT ASSIGN allows you to set which of the above audio sources is sent to the four aux send outputs (the
default is AUX 1-4).
DIGITAL OUTPUT ASSIGN allows you to set which of the above audio sources will appear at the stereo digital
outputs (the default, of course, is ST L and ST R - stereo bus left and right).
ADAT OUTPUT ASSIGN allow you to set which of the above audio is sent to the optical digital output. The default
is no assignment (- - - - - ).

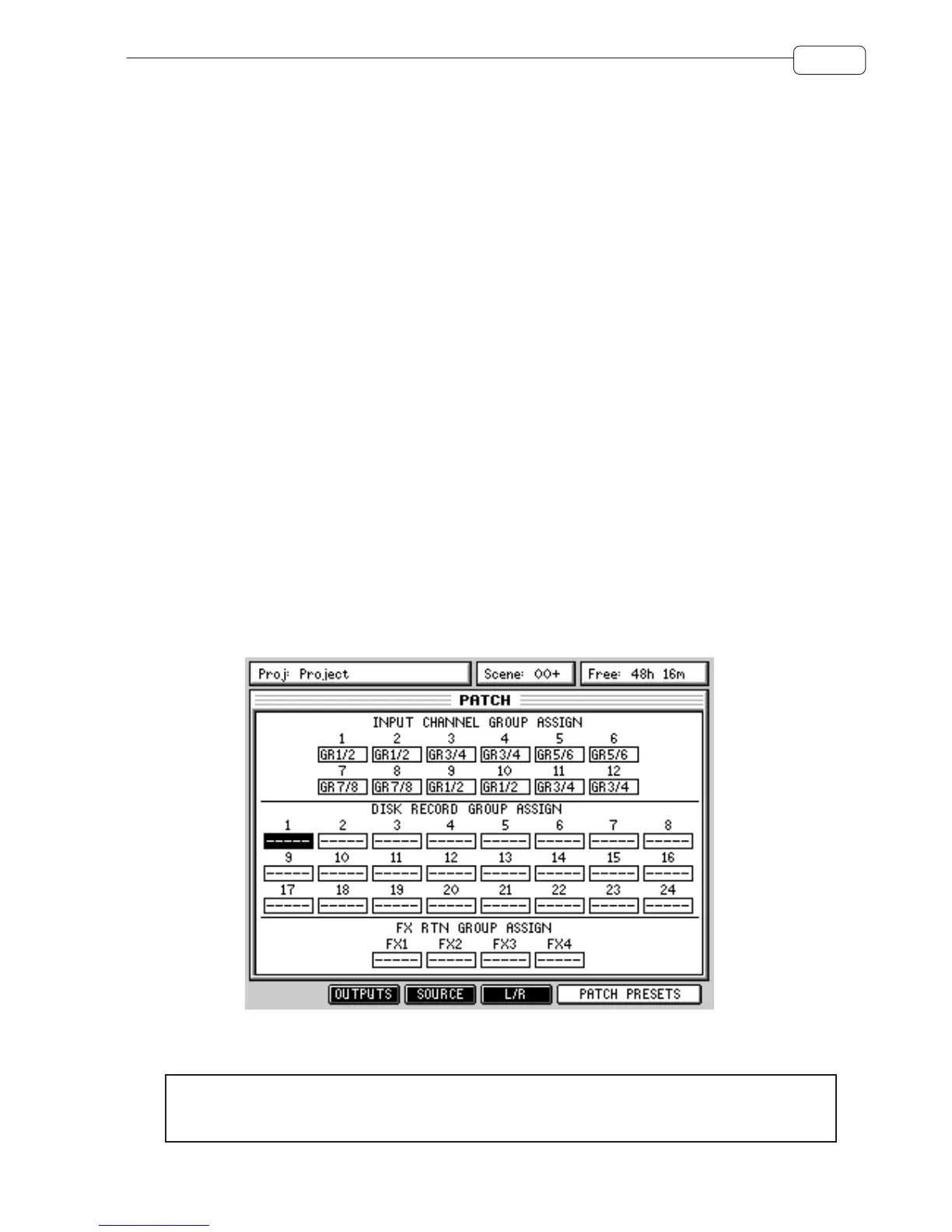

Pressing GROUPS shows this screen:
INPUT CHANNEL GROUP ASSIGN allows you to decide which groups the input channels will be assigned to and
any channel may be assigned to any group 1-8. Note, however, that routing is done in pairs.
➸
NOTE :
Although it is perfectly feasible to route channels to groups in this page, you may find it easier to use
the front panel keys - i.e. press the appropriate GROUP ASSIGN key and then press the channels you want to
assign to that group.
