Akai MPC2000XL

Chapter 9: Effects
Page 140
When REV4MOD/ECHO is selected

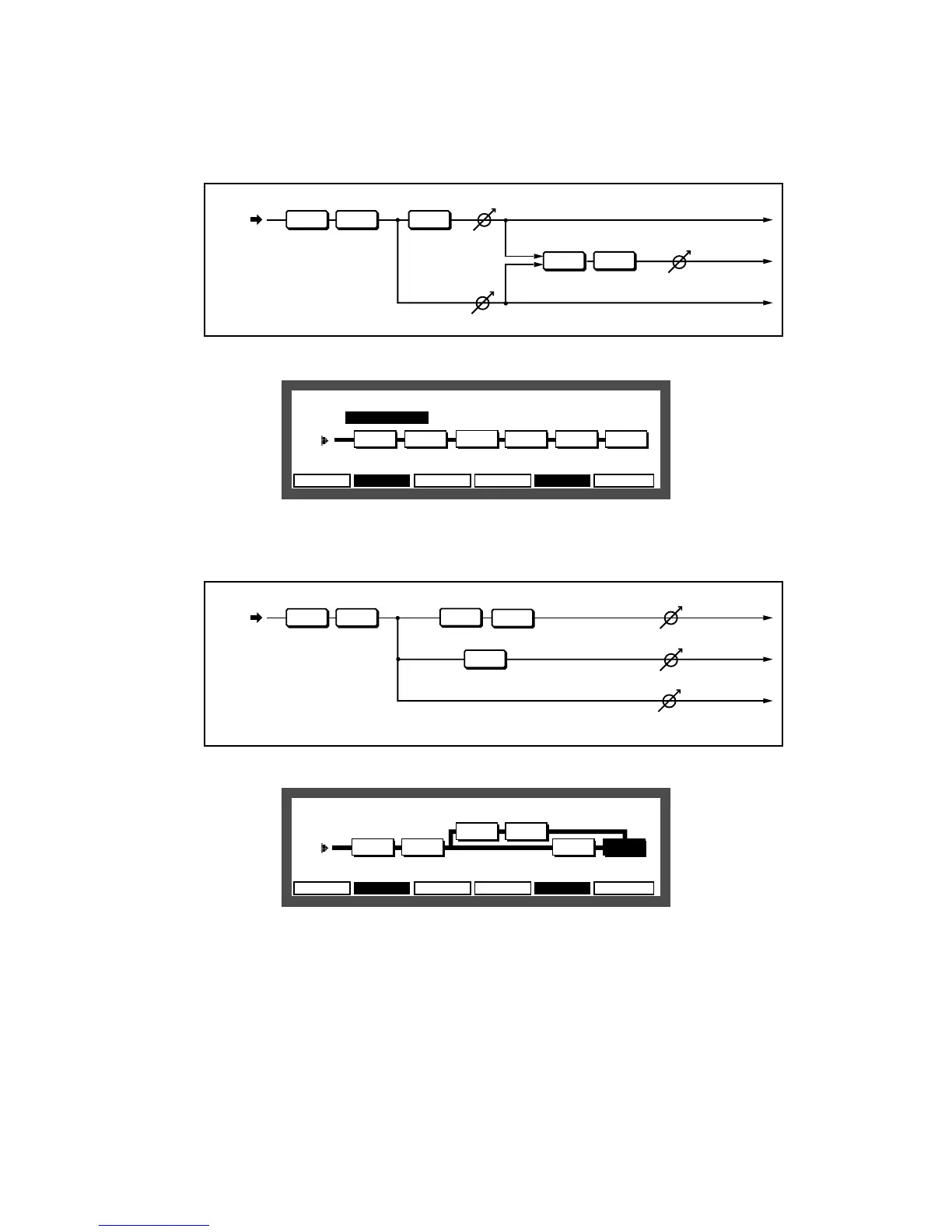

The signal flow is as follows:
DIST
FILT
MOD
REV
M1/M2
ECHO
Dist/Filt
Reverb
Mod/Echo
ON/OFFDRUM 2DRUM 2DRUM 1DRUM 1 DRUM 3DRUM 3 DRUM 4DRUM 4 SETUP
Drum:1 Pgm: 1-NewPgm-A
Edit:MULTI FX1
M1
REV
MIX
DIST FILT MOD ECHO
When MOD/ECHO+REV is selected
The signal flow is as follows:
DIST
FILT
M1/M2
ECHO
MOD
REV
Mod/Echo
Reverb
Dist/Filt
ON/OFFDRUM 2DRUM 2DRUM 1DRUM 1 DRUM 3DRUM 3 DRUM 4DRUM 4 SETUP
Drum:1 Pgm: 1-NewPgm-A
Edit:MULTI FX1
M1
REVDIST FILT MIX
MOD ECHO
