- 23-

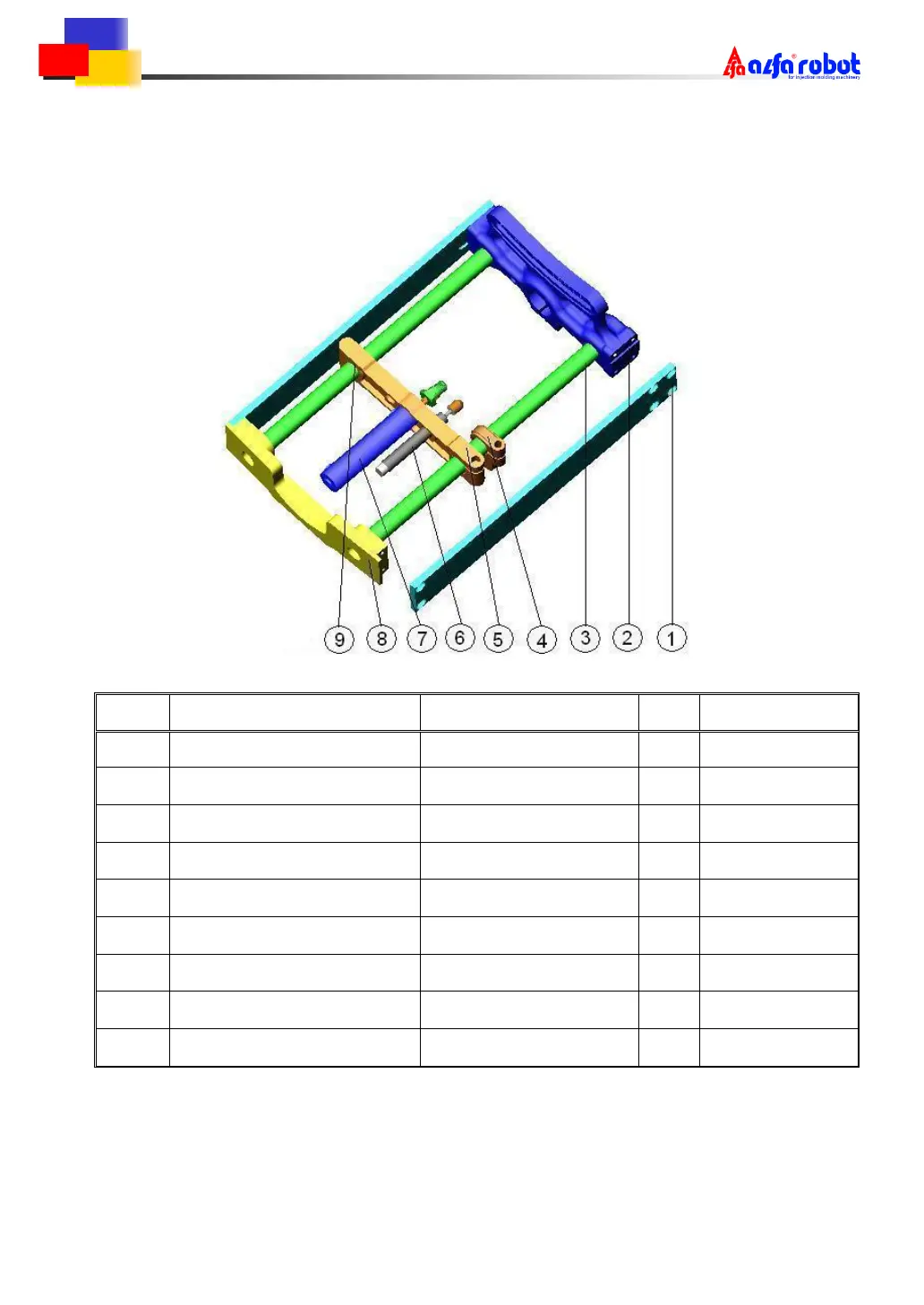

3.4.2 Crosswise Compartment (Single-stage version)
Phoenix350~450 Crosswise Compartment (Single-stage version)
ITEM
DESCRIPTION
PART NO.
Q`TY
REMARK
1
Structural Beam
PI00B020
2
2
Rear Bracket
PV00B010
1
3
Guide Rod
MRD1-YE200550
1
4
Stroke End-Stopper
AI00B070
1
5
Cylinder Mounting
PV00B050
1
6
Shock Absorber
MAR1416
1
7
Crosswise Cylinder
PCY20-YC200120S
1
8
Front Bracket
PV00B040
1
9
DU Dry Bearing
MBG2-2012
1
