alfa robot Phoenix Series User Manual

- 13-

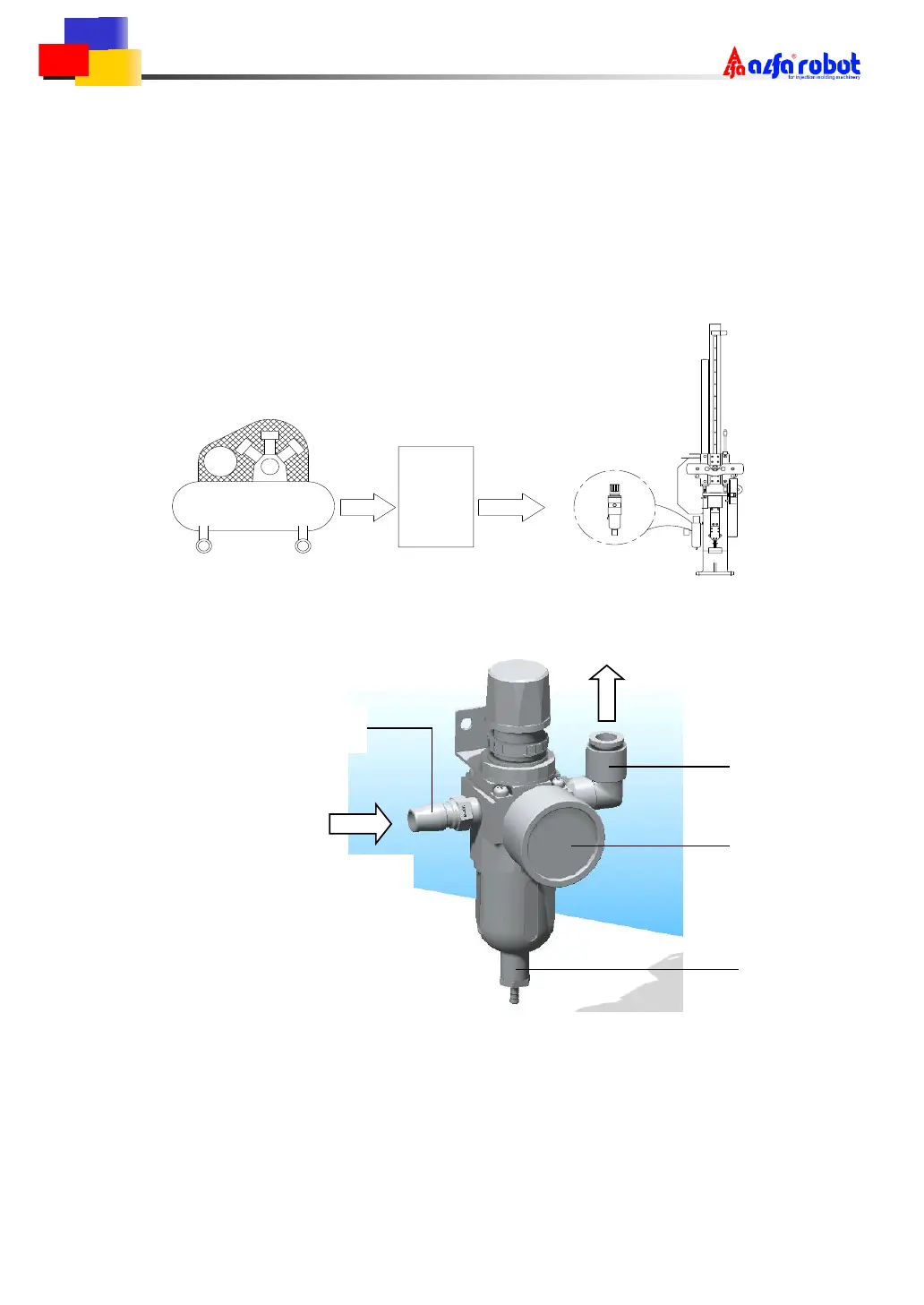

2.6 Connection with Pneumatic Supply Source
 Supply of Pneumatic Source
In order to maintain the robot's normal operation, be sure to fit refrigerating dryer at the outlet
of air compressor to remove the wet and moisture from the air, thus to obtain the extended
service life of robot.
AIR COMPRESSOR
Refrig
Dryer
Output
5kgf/cm
2
Air Filter
 Connection with Pneumatic Source of Supply
Important:
(1) To minimize air pressure loss in the pipe for a long distant source (10 meters away), be
sure to use a rigid pipeline.
(2)After completing the connection, adjust the pressure on the Air Filter/Regulator until it
reaches 5 kgf/cm2
(3) Check the water trapped in Air Filter/Regulator and removes it every day.
Note: CE specifications can be equipped with a slow start valve.
Tube Fitting
– Outlet
Tube Fitting– Inlet
Input Pressure 5kgf/cm²
Output Pressure 5kgf/cm²
Pressure Gauge
Drain Button
