About weatherproof cameras
Weatherproof cameras can be mounted in any open area, such as on a telephone pole or on the side of a building. For best results,
we recommend you mount your cameras in a sheltered area, such as under the eave or roof of a building, if possible.
Weatherproof cameras compatible with your DVR may have cables attached to the camera body and not routed through the camera
base. If these cameras are installed in a moist environment, a drip loop should be constructed in the drop cable such that moisture
will tend to ow away from the camera and drop cable connectors.

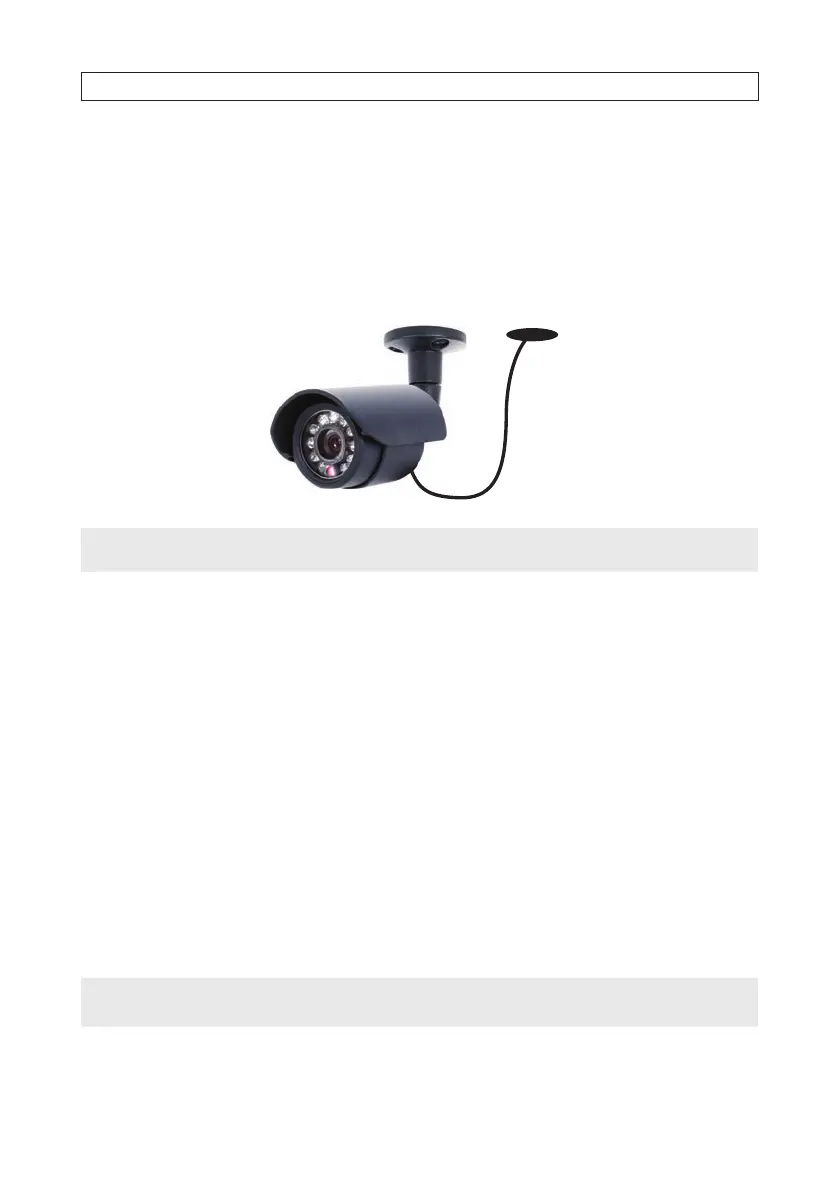

Drip Loop
Drop
Cable
NOTE
Cable connectors are not weatherproof.
LAN/power cables can be run almost anywhere, and are frequently routed through attics or above drop/acoustic ceilings because
of the ease of installation. For added security, we recommend that you run your cables in areas with limited access to prevent
tampering. Avoid running the cable near high voltage appliances such as uorescent lighting. Electrical noise and magnetic elds
produced by these devices may aect video and communication signal quality.
2.4.2 Install cameras
Install your security cameras as needed to support your security requirements. Always refer to the documentation provided with the
camera for installation instructions.
2.5 Connecting it together – initial system setup
1. Plug the coaxial cables from the cameras into the BNC camera input connectors on the back of the DVR.
2. Power on the DVR using the power on / o (I / O) switch on the back panel.
3. Power on the monitor.
NOTE
Some monitors have multiple inputs such including VGA ,HDMI, BNC, etc. If you are using this kind of monitor, congure your
monitor to display the input connected to your DVR (HDMI or VGA).
4. Power on your cameras.
