35ALI-DVR3000H Series 960H DVR User Manual
— Aux Monitor: Switch to the auxiliary output mode (CVBS). The operation of the main output is disabled.
4.2.1 Live View settings
Live View settings can be customized according to diering needs. You can congure the screen frame split, placement of camera
channels on the screen, dwell time for screen to be shown, mute or turning on the audio, the screen number for each channel, etc.

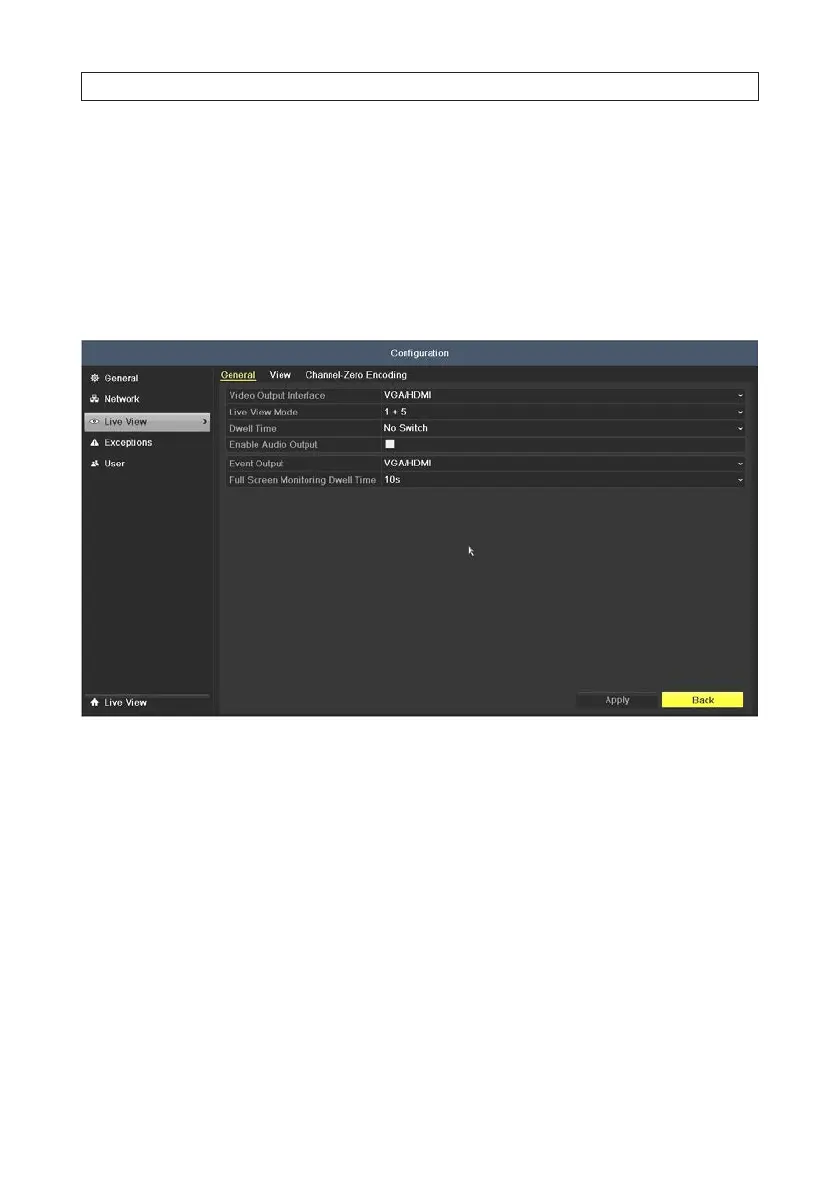

1. Open the Live View Settings menu. Go to Menu | Conguration | Live View
Adjust the settings in the screen as needed:
— Video Output Interface: Designates the output to congure the settings for. Option includes Main CVBS and
VGA/HDMI.
— Live View Mode: Designates the display mode (screen split) to be used for Live View.
— Dwell Time: The time in seconds to dwell between switching channels when auto-switch is enabled in Live View.
— Enable Audio Output: Enables/disables audio output for the selected video output.
— Event Output: Designates the output to show event video. Option includes only VGA/HDMI.
— Full Screen Monitoring Dwell Time: The time in seconds to show alarm event screen.
2. After changing settings in the screen shown above, click the Apply button at the bottom of the screen, and then click Back.
3. Click the View tab at the top of the screen.
SECTION 4: LIVE VIEW INTERFACE
