Alicat MC Series User Manual

21
Navigating and Customizing Your Flow Controller
Option: Collecting Totalized Flow Data and Batch Dispensing
Your ow controller may have an optional ow totalizer, which enables batch
dispensing. The totalizer displays the total amount of mass or volume that
has owed through the instrument since its last reset, like a gasoline pump.
Access the totalizer screen by pressing TOTAL/MENU on the Main Display.
Totalizer Rollover Functions
Your ow totalizer has been congured to report a maximum of 7 digits. By
default, the placement of the decimal is the same as the live ow rate. The
totalizer can be congured at the time of order for the following behaviors.
(By default, the totalizer rolls over and displays OVR.)
• Rollover: Totalizer resumes counting from 0 as soon as the maximum count
has been reached.
• Freeze: Totalizer stops counting at max count, until it is reset manually.
• Error: Displays OVR status message when maximum count has been
reached; compatible with Rollover and Freeze.
The elapsed time counter has a maximum value of 9999:59:59 (h:m:s). If ow is
still being totalized at that point, the timer freezes, regardless of the behavior
chosen above for the totalized ow readings.
SETPT
+16.60
MENU/
MAIN
SLPM
+16.57
TOTAL/
TIMER
-NONE-
BATCH RESET
2:56 h:m:s
+48.75
M AVG +16.62 SL

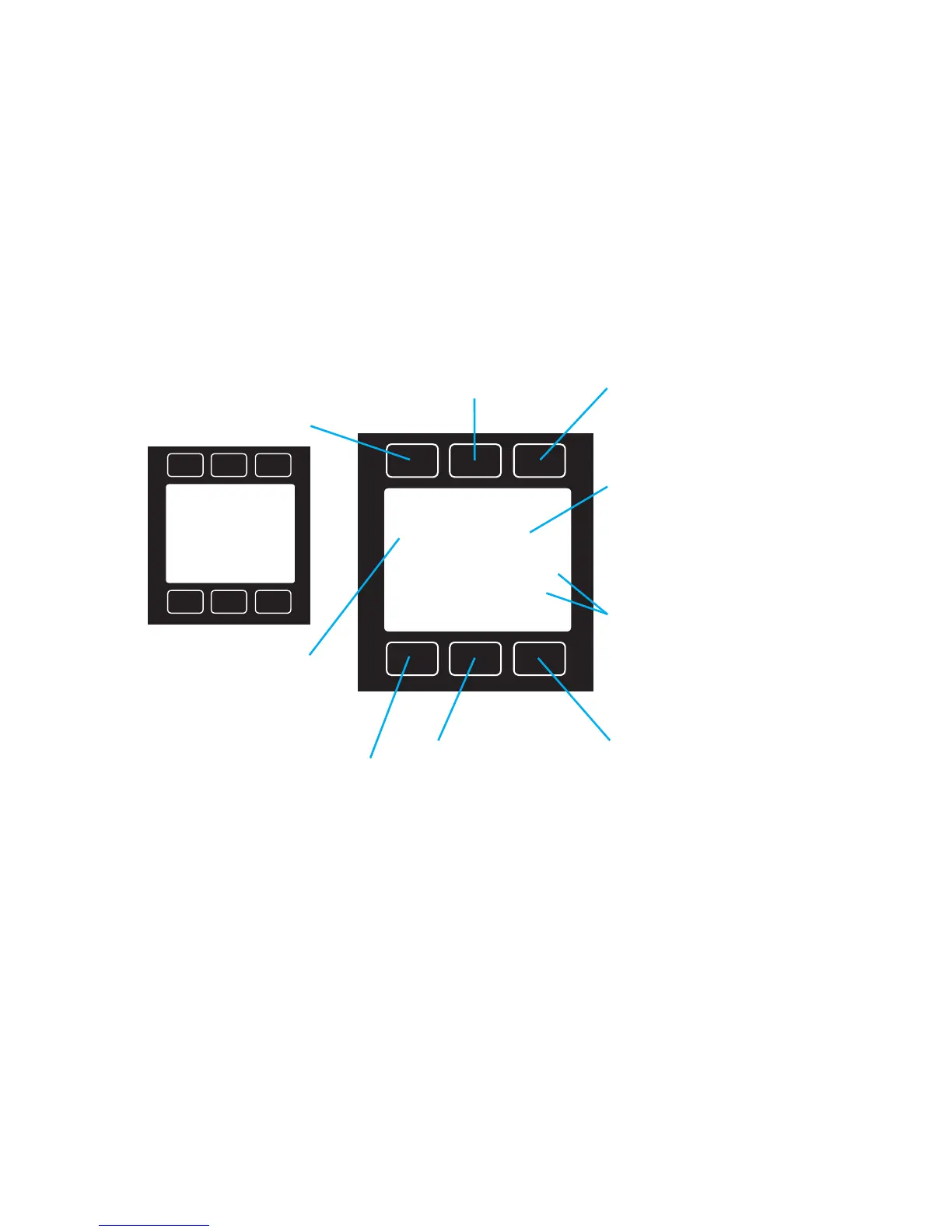

Totalizer - Batch O (Optional)
MENU/MAIN Enters the Menu
system (page 24). From
there, press MAIN to exit to the
Main Display of live data.
RESET Clears all totalized
data and resets the timer
to 0. The next batch, if set,
begins immediately.
Displays live ow rate. Press
to select engineering units.
TOTAL/TIMER Toggles between
totalized ow and elapsed
time as the parameter
highlighted in the center.
SETPT Displays the current setpoint.
Press to set a new setpoint or to clear
the setpoint.
M AVG or V AVG Optional
totalizer averaging: Displays
average ow rate since last
reset, updated live.
SETPT
+16.60
MENU/
MAIN
SLPM
+16.57
TOTAL/
TIMER
BATCH RESET
+48.75 SL
2:56
M AVG +16.62 h:m:s
Alternating display of:
• Selected engineering unit
for totalized ow or time
(page 30).
• Selected gas calibration
(page 31).
Displays totalized ow and
elapsed time since last reset.
Time units alternate with
status messages when any
are present (page 8).
BATCH Selects the quantity to
be dispensed in each batch.
Displays -NONE- when it is 0.
