18 Rockwell Automation Publication 1732E-UM001A-EN-P - December 2019
Chapter 2 Configure and Startup
Module Definition Dialog
To configure the Module Definition parameters, click Change on the General
page of the New Module/Module Properties window.

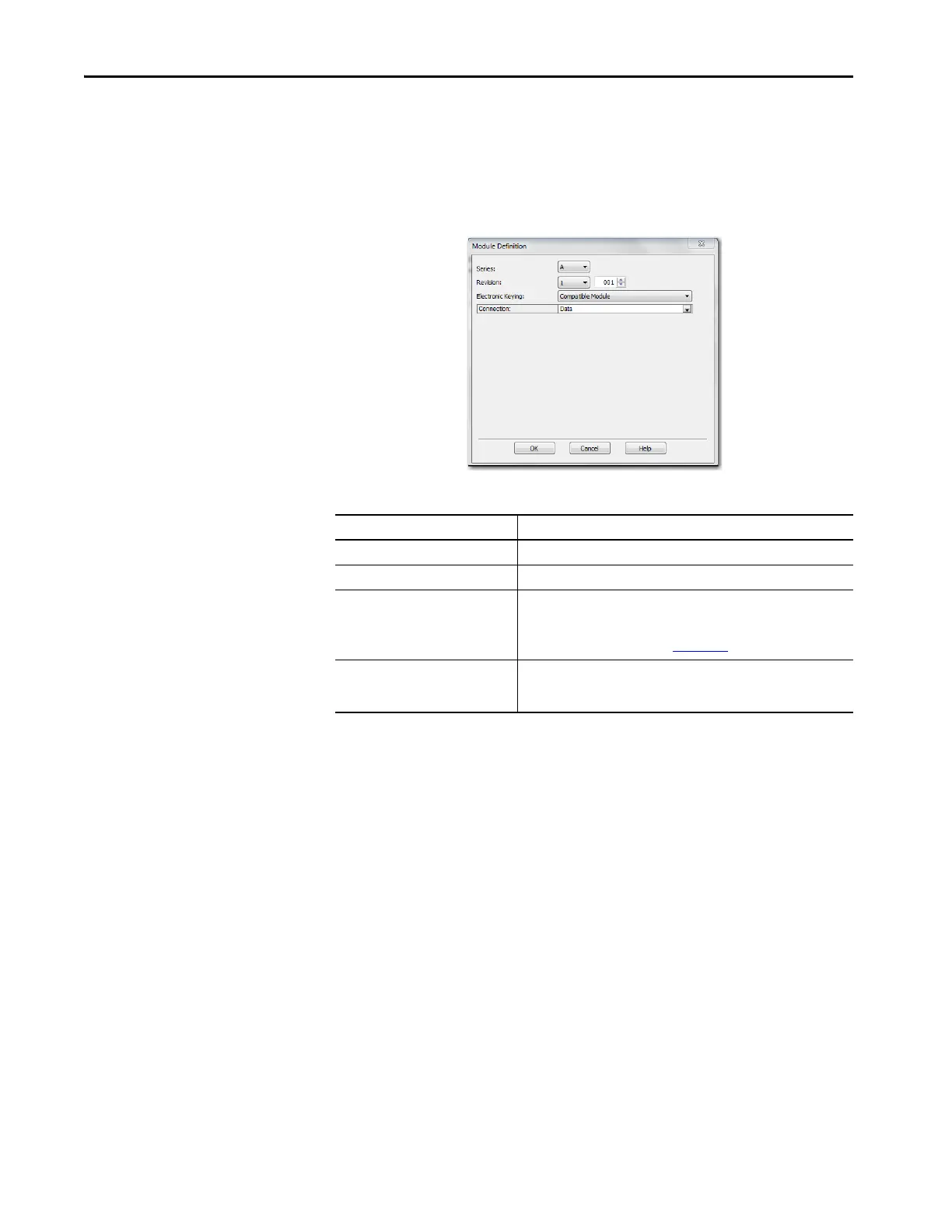

Figure 3 - Example of Module Definition Dialog
Table 10 - Module Definition Parameters
Parameter Definition
Series Module hardware series
Revision Module firmware revision, including major and minor revision levels
Electronic Keying Software method by which you reduce the possibility of using the wrong
device in a control system.
For more information, see Electronic Keying in Logix5000 Control Systems
Application Technique, publication LOGIX-AT001.
Connection Determines the following for the module type you configure:
• Available configuration parameters
• Data type transferred between the module and the controller
