Allen-Bradley ArmorBlock 1732E-16CFGM12M12LDR User Manual

Rockwell Automation Publication 1732E-UM001A-EN-P - December 2019 31

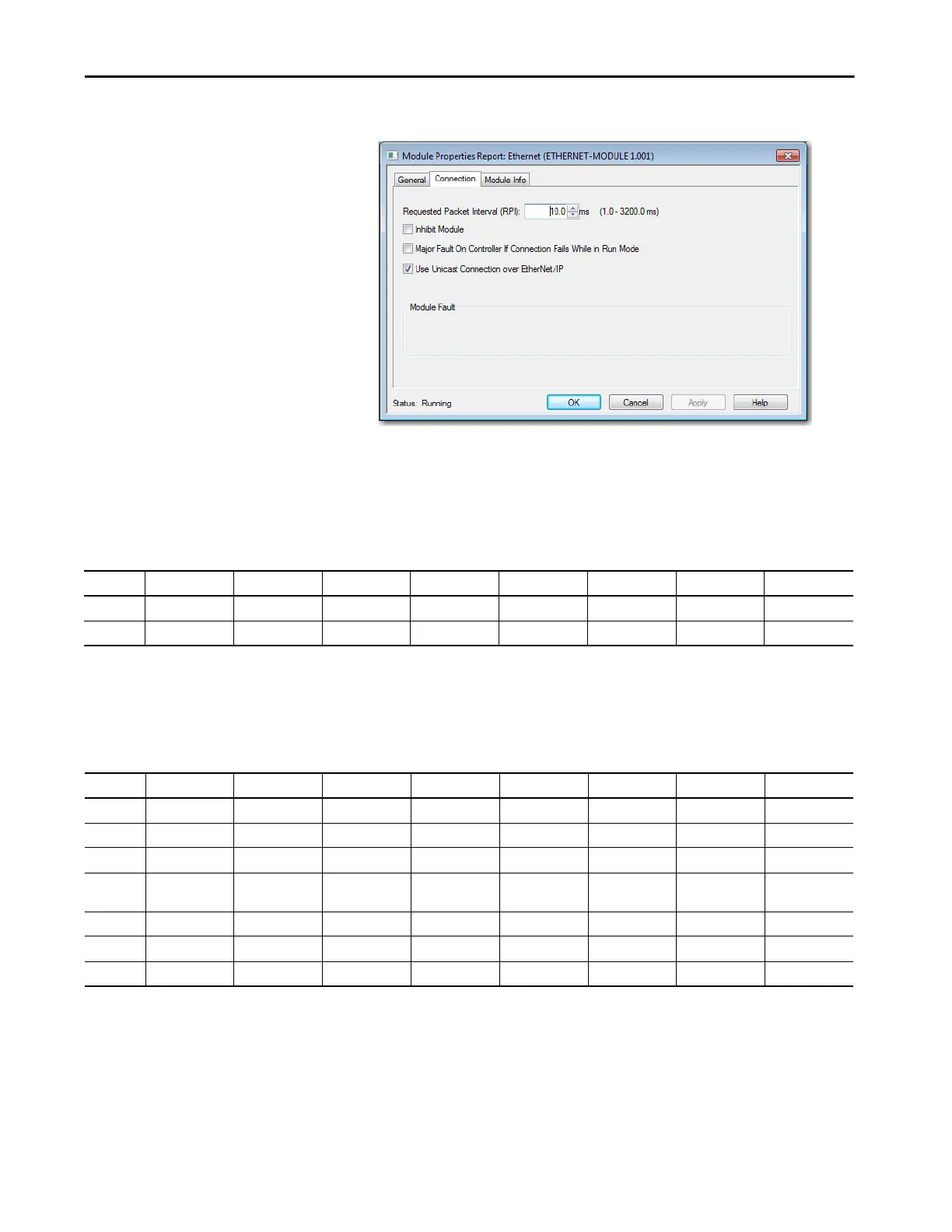

Configure Module Using Generic Profile Chapter 3
3. Download the configuration to the controller and go online.
Process Data for the
Module
Output Data
16-bit output data, default I/O mapping, assembly Instance 100.
Input Data
16-bit input data with diagnostics, default I/O mapping, assembly Instance 101.
OutputBit 7Bit 6Bit 5Bit 4Bit 3Bit 2Bit 1Bit 0
Byte 0C7C6C5C4C3C2C1C0
Byte 1 C15 C14 C13 C12 C11 C10 C9 C8
Input Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
Byte 0C7C6C5C4C3C2C1C0
Byte 1 C15 C14 C13 C12 C11 C10 C9 C8
Byte 2InternalFault000OutputGroupFaultInputGroupFaultFieldPowerLowPowerFault
Byte 3 Pt14_15InputSho
rtCirctui
Pt12_13InputSho
rtCircuit
Pt10_11InputSho
rtCircuit
Pt08_09InputSho
rtCircuit
Pt06_07InputSho
rtCircuit
Pt04_05InputSho
rtCircuit
Pt02_03InputSho
rtCircuit
Pt00_01InputSho
rtCircuit
Byte 400000000
Byte 5 Pt07OutputFault Pt06OutputFault Pt05OutputFault Pt04OutputFault Pt03OutputFault Pt02OutputFault Pt01OutputFault Pt00OutputFault
Byte 6 Pt15OutputFault Pt14OutputFault Pt13OutputFault Pt12OutputFault Pt11OutputFault Pt10OutputFault Pt09OutputFault Pt08OutputFault
