Chapter 2 Configure and Startup
Module Info Page
This page displays information about the identity of your module and its fault
status.

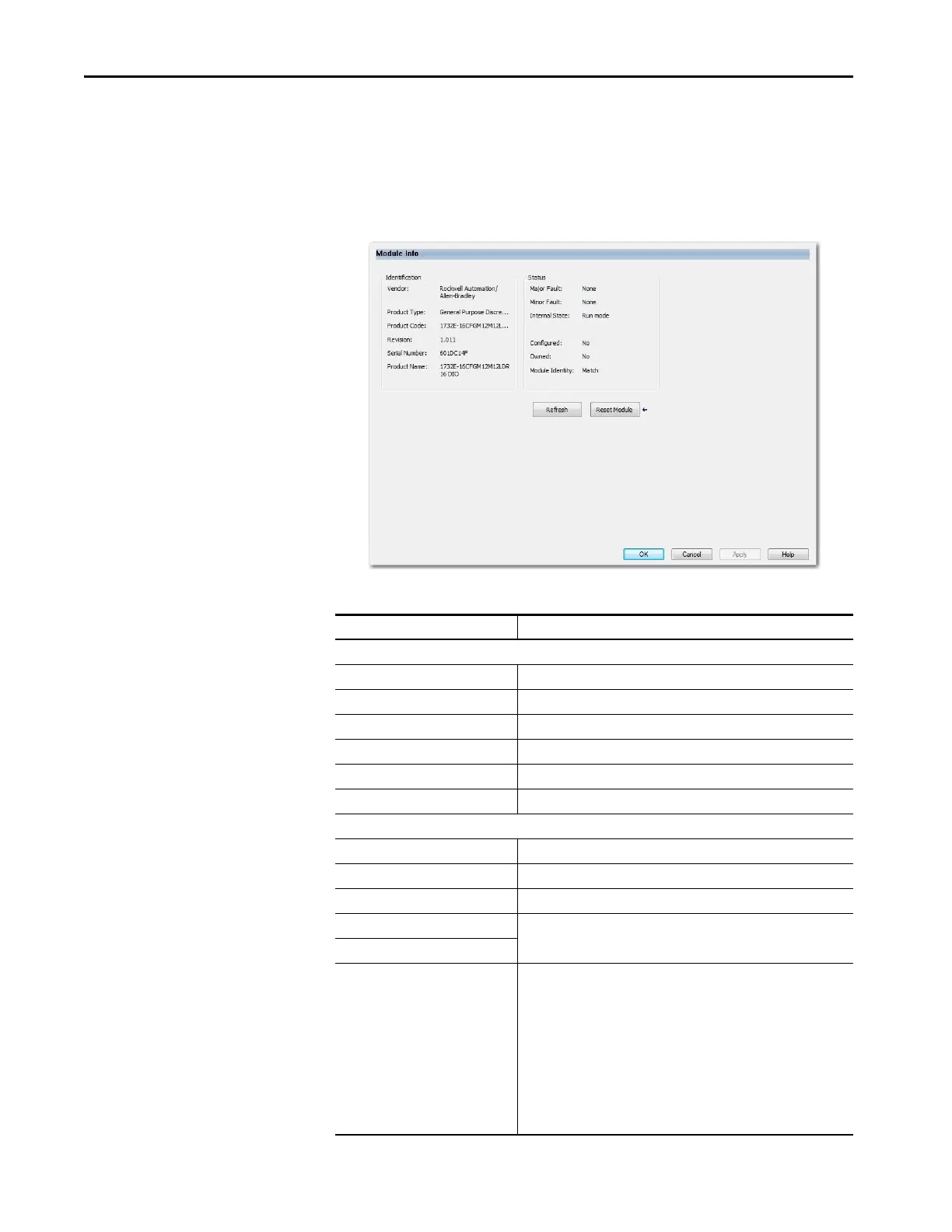

Figure 6 - Example of Module Info Page
Table 13 - Module Info Parameters
Parameter Definition
Identification
Vendor Rockwell Automation/Allen-Bradley
Product Type Module type
Product Code Catalog number of the module
Revision Firmware revision of module
Serial Number CIP serial number
Product Name Name of the module
Status
Major Fault Displays the fault code if a major fault occurs
Minor Fault Displays the fault code if a minor fault occurs
Internal State Displays the current operational state of the module:
Configured For I/O modules only. Does not apply to adapters, scanners, bridges, or other
communication modules
Owned
Module Identity Match
• Agrees with what is specified on the General page.
• For the Match condition to exist, the following must agree:
–Vendor
– Module Type (the combination of Product Type and Product Code for a
particular Vendor)
–Major Revision
Mismatch
• Does not agree with what is specified on the General Tab.
The Module Identity field does not consider the Electronic Keying or Minor
Revision selections for the module that were specified on the General page.
