Allen-Bradley Kinetix 5500 Design Guide

Rockwell Automation Publication KNX-RM009C-EN-P - May 2019 9
Kinetix 5500 Drive Systems
Optional Drive Accessories

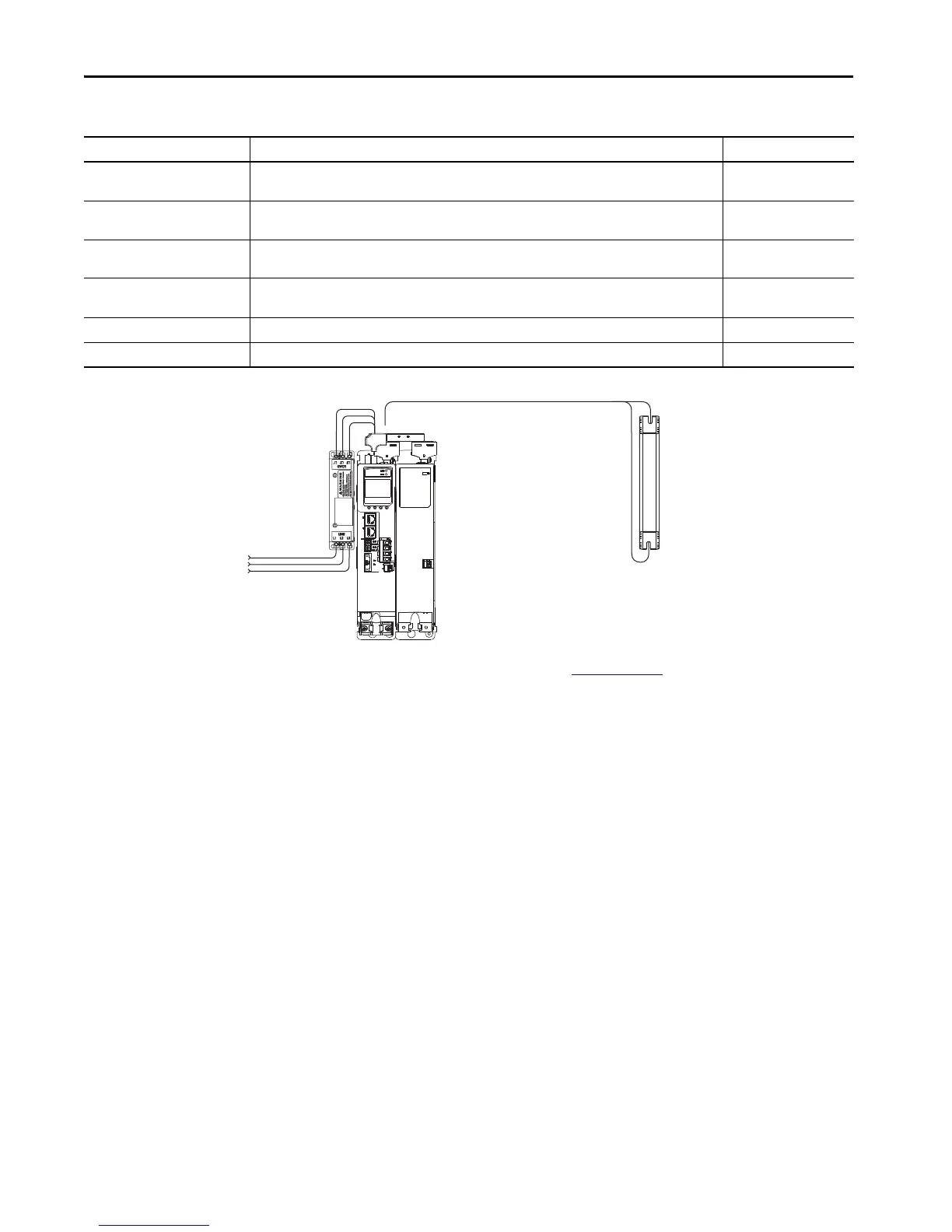

Kinetix 5500 Optional Accessories
Refer to the Kinetix Servo Drives Specifications Technical Data, publication KNX-TD003, for detailed descriptions and
additional specifications for the Kinetix 5500 drive accessories.
Drive Accessory Description Cat. No.
Shared-bus connector kits 24V input wiring connectors, T-connectors, and bus bars for the 24V shared-bus connection system
• 2198-TCON-24VDCIN36
• 2198-xxxx-P-T
Capacitor module
Capacitor bank for energy storage and/or to improve performance in applications that produce regenerative
energy and require shorter duty cycles (1360 μf).
2198-CAPMOD-1300
Encoder output module
The Allen-Bradley encoder output module is a DIN-rail mounted EtherNet/IP network-based standalone
module capable of outputting encoder pulses to a customer-supplied peripheral device.
2198-ABQE
AC line filters AC line conditioning for EMC.
• 2198-DBRxx-F
• 2198-DBxx-F
Bulletin 2097 shunt resistor Panel-mount shunt resistor. 2097-Rx
External auxiliary encoders Allen-Bradley Integrated Motion encoder on the EtherNet/IP network provides a feedback-only axis. Bulletin 842E-CM
Single-phase or Three-phase
AC Input Power
2097-Rx Shunt Resistor
Bulletin 2198 AC Line Filter
(required for CE)
2198-CAPMOD-1300
Capacitor Module
2198-Hxxx-ERSx
Kinetix 5500 Servo Drive
Bulletin 2198 shared-bus connection
system for bus-sharing configurations.
