Allen-Bradley LOGIX 5000 User Manual

Process Control Instructions
Chapter 1
Rockwell Automation Publication 1756-RM006K-EN-P - November 2018 239
Output
Parameters
Data
Type
Description Values
CV2PV2RespTCInv BOOL Entered value for CV2-PV2 Response Time Constant
< 0.
Bit 16 of Status3CV2
CV3PV2RespTCInv BOOL Entered value for CV3 - PV2 Response Time
Constant < 0.
Bit 16 of Status3CV3
CV1TargetInv BOOL Entered value for CV1 Target < 0. or > 100. Bit 17 of Status3CV1
CV2TargetInv BOOL Entered value for CV2 Target < 0. or > 100. Bit 17 of Status3CV2
CV3TargetInv BOOL Entered value for CV3 Target < 0. or > 100. Bit 17 of Status3CV3
Description
The MMC is a flexible model-based algorithm that can be used in two basic
configuration modes:
• Three control variables used to control two interacting process variables
• Two control variables used to control two interacting process variables

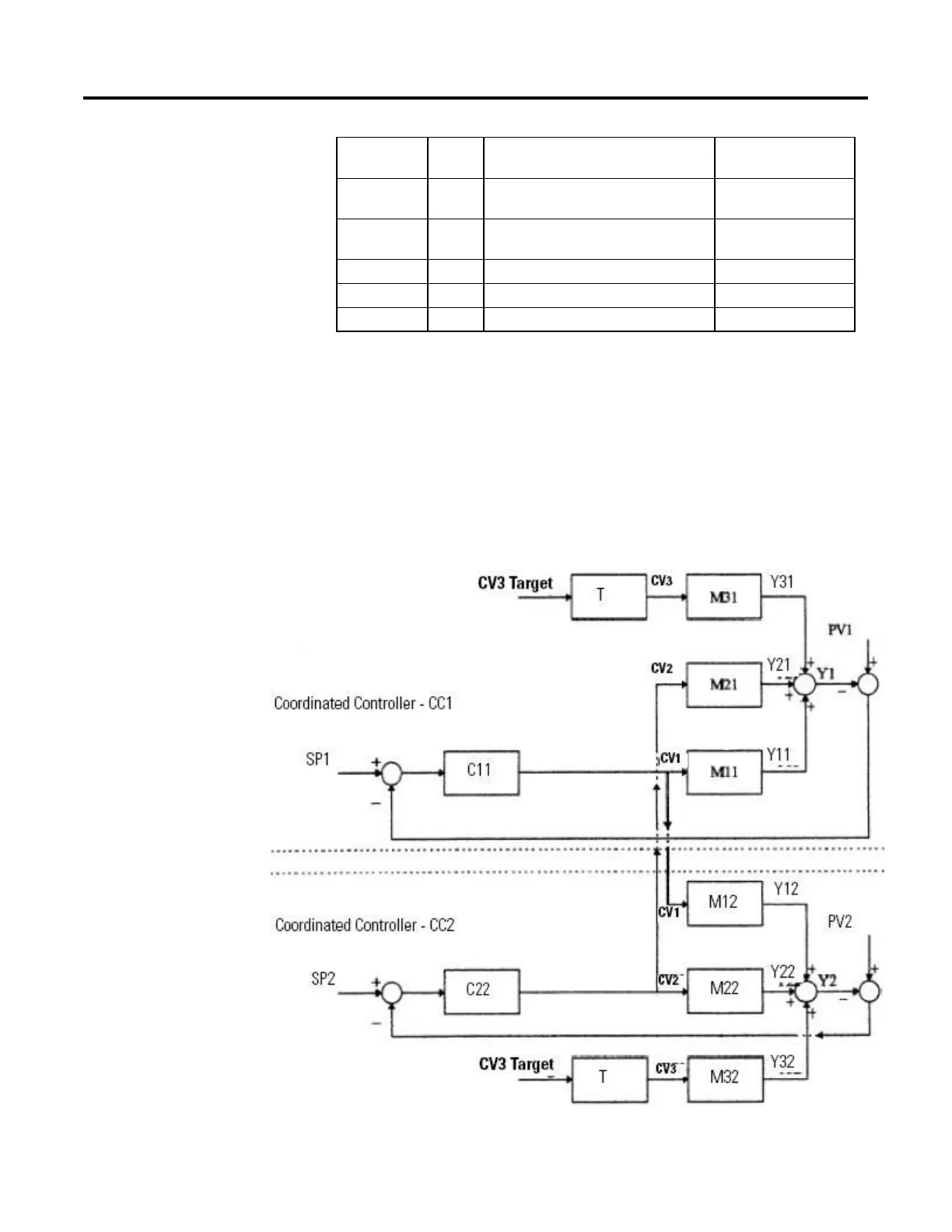

Following is an MMC function block splitter example configuration.
