from "winding-up" in a direction which is already beyond the limits of the
controlled variable.

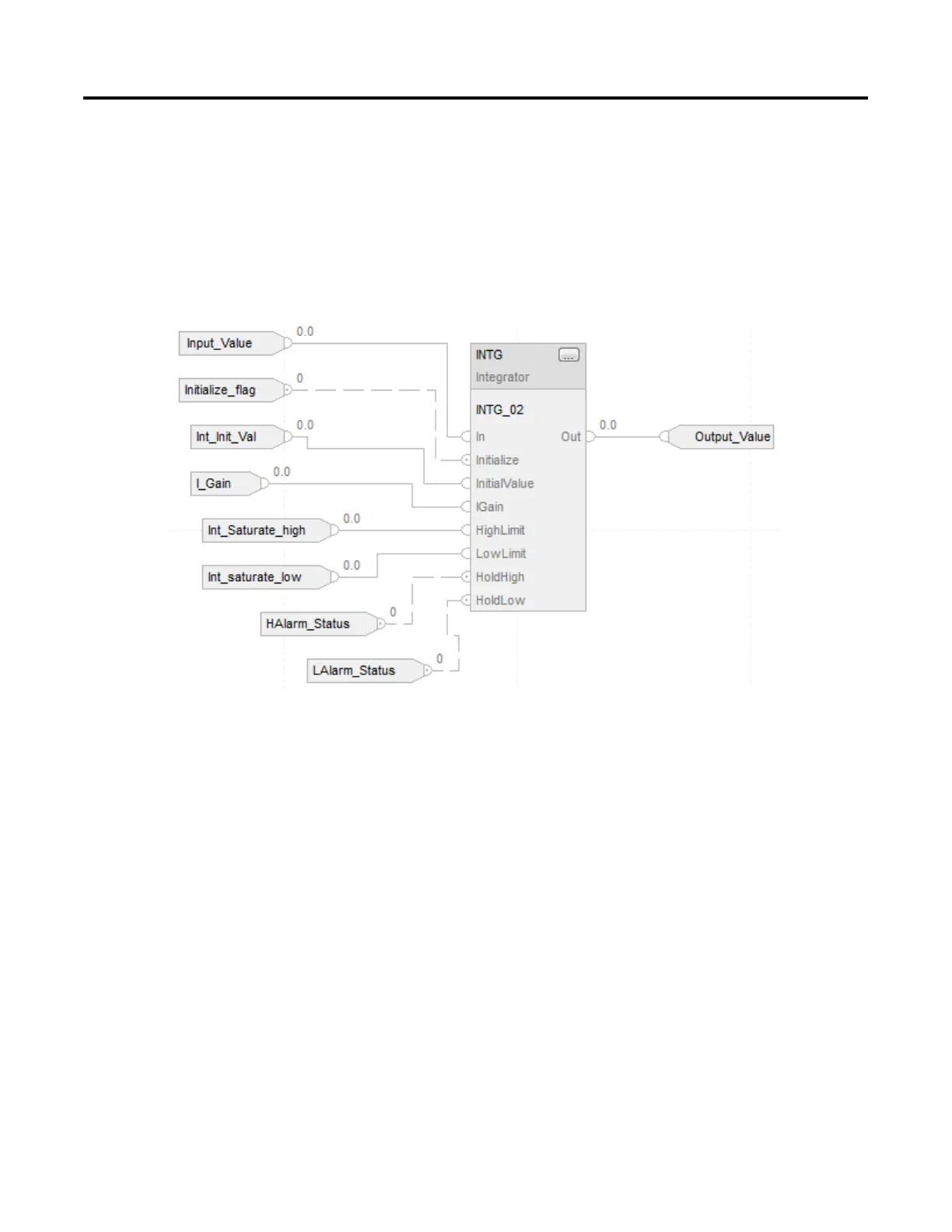

Function Block
This example is the minimal legal programming of the INTG function block and
is only used to show the neutral text and generated code for this instruction. This
is for internal purposes only and is not a testable case.
Structured Text
INTG_01.In := Input_Value;
INTG_01.Initialize := Initialize_flag;
INTG_01.InitialValue := Int_Init_Val;
INTG_01.IGain := I_Gain;
INTG_01.HighLimit := Int_saturate_high;
INTG_01.LowLimit := Int_saturate_low;
INTG_01.HoldHigh :=HAlarm_Status;
INTG_01.HoldLow := LAlarm_Status;
INTG(INTG_01);
