Drives
Chapter 2
Rockwell Automation Publication 1756-RM006K-EN-P - November 2018 307

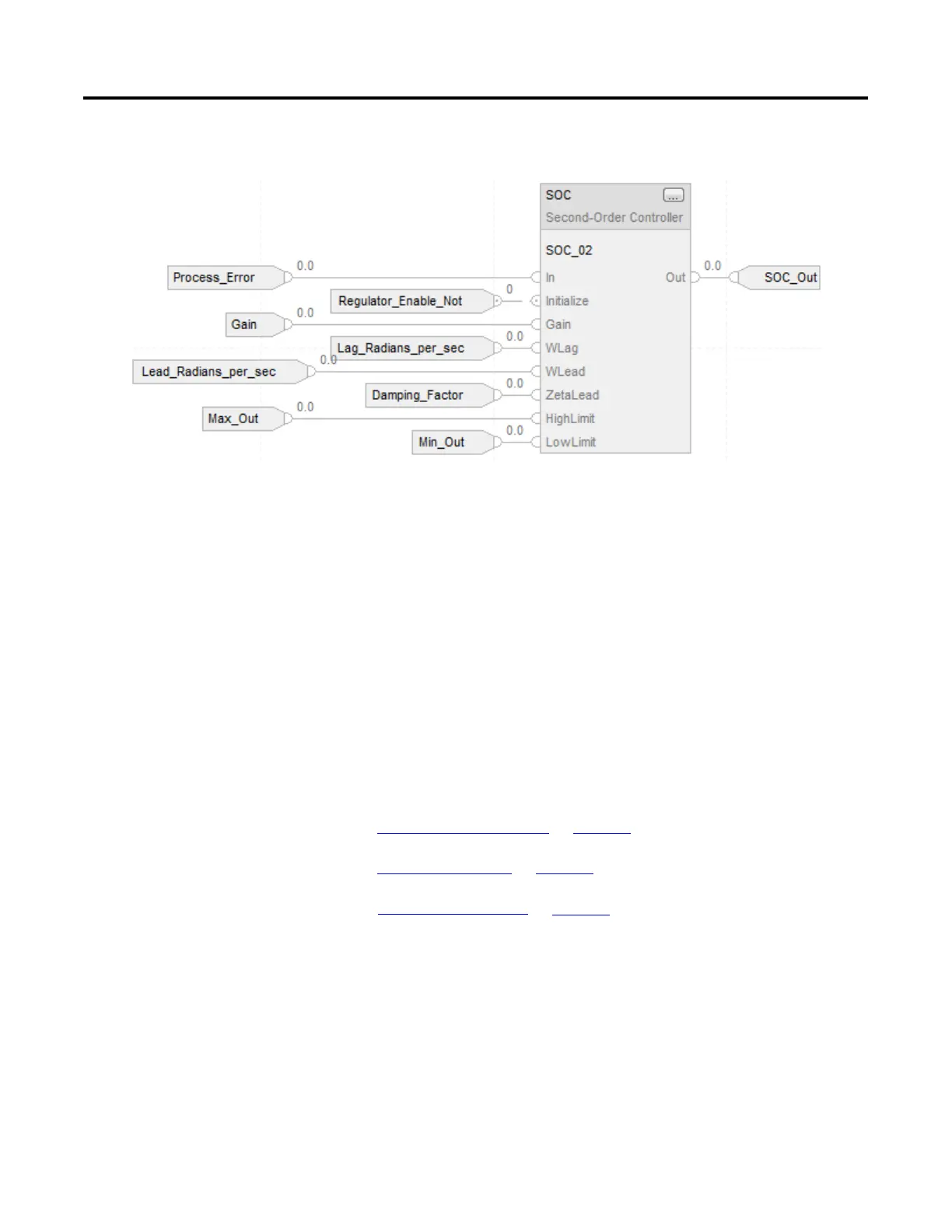

Function Block
Structure
d Text
SOC_01.In := Process_Error;
SOC_01.Initialize := Regulator_Enable_Not;
SOC_01.Gain := Gain;
SOC_01.WLag := Lag_Radians_per_sec;
SOC_01.WLead := Lead_radians_per_sec;
SOC_01.ZetaLead := Damping_Factor;
SOC_01.HighLimit := Max_Out;
SOC_01.LowLimit := Min_Out;
SOC(SOC_01);
SOC_Out := SOC_01.Out;
See also
Function Block Attributes on page 491
Common Attributes on page 537
Structured Text Syntax on page 508
