Select_Limit Instructions
368 Rockwell Automation Publication 1756-RM006K-EN-P - November 2018
Structured Text
Operand Type Format Description
RLIM tag RATE_LIMITER structure RLIM structure
See Structured Text Syntax for more information on the syntax of expressions
within structured text.
Description
The RLIM instruction provides separate increment and decrement rates in per-
second units. The ByPass input lets you stop rate limiting and pass the signal
directly to the output.

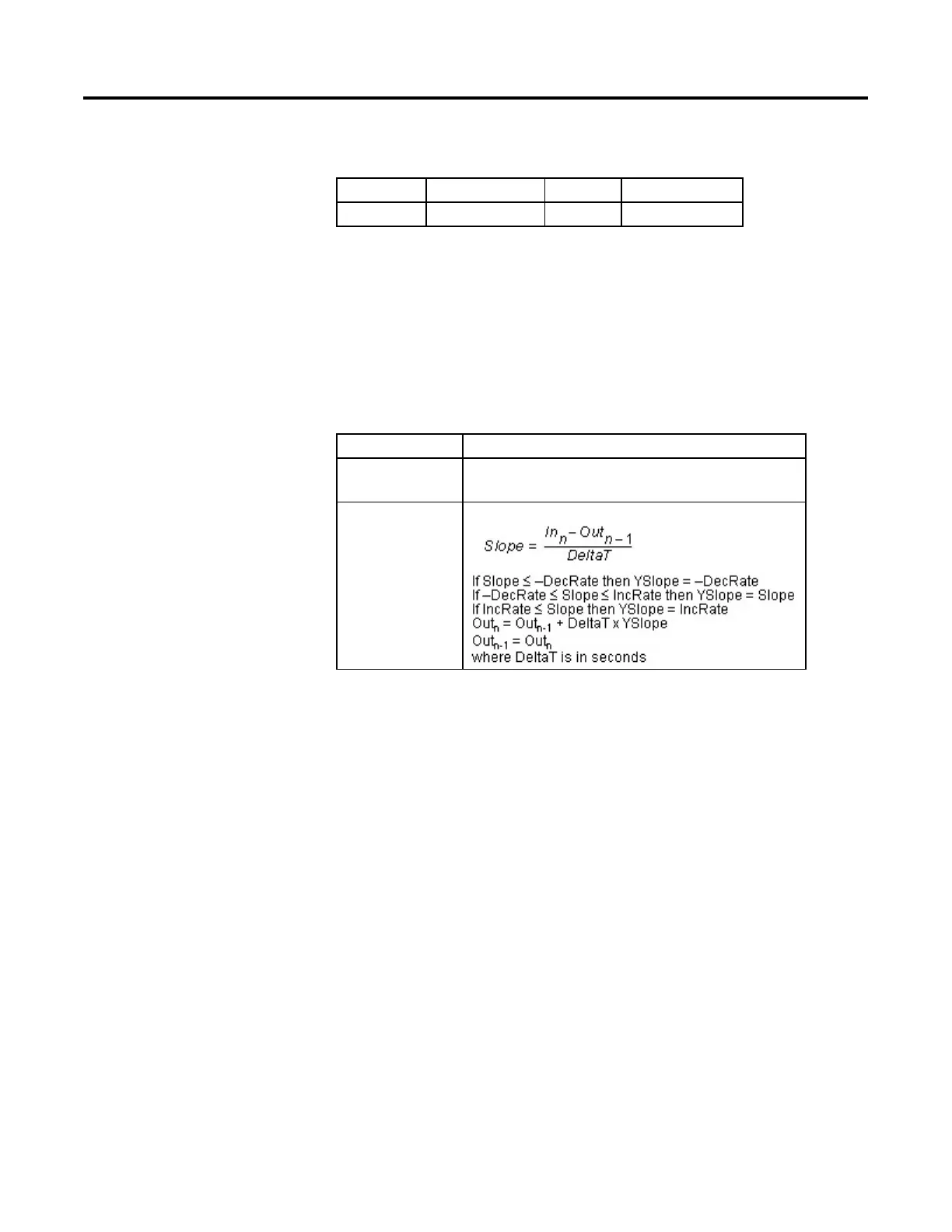

Condition Action
ByPass is true Out
n
= In
n
Out
n-1
= In
n
ByPass is false and
DeltaT > 0
Affects Math Status Flags
No
Major/Minor Faults
None specific to this instruction. See Common Attributes for operand-related
faults.
