Allen-Bradley LOGIX 5000 User Manual

Chapter 6
Logical and Move
408 Rockwell Automation Publication 1756-RM006K-EN-P - November 2018

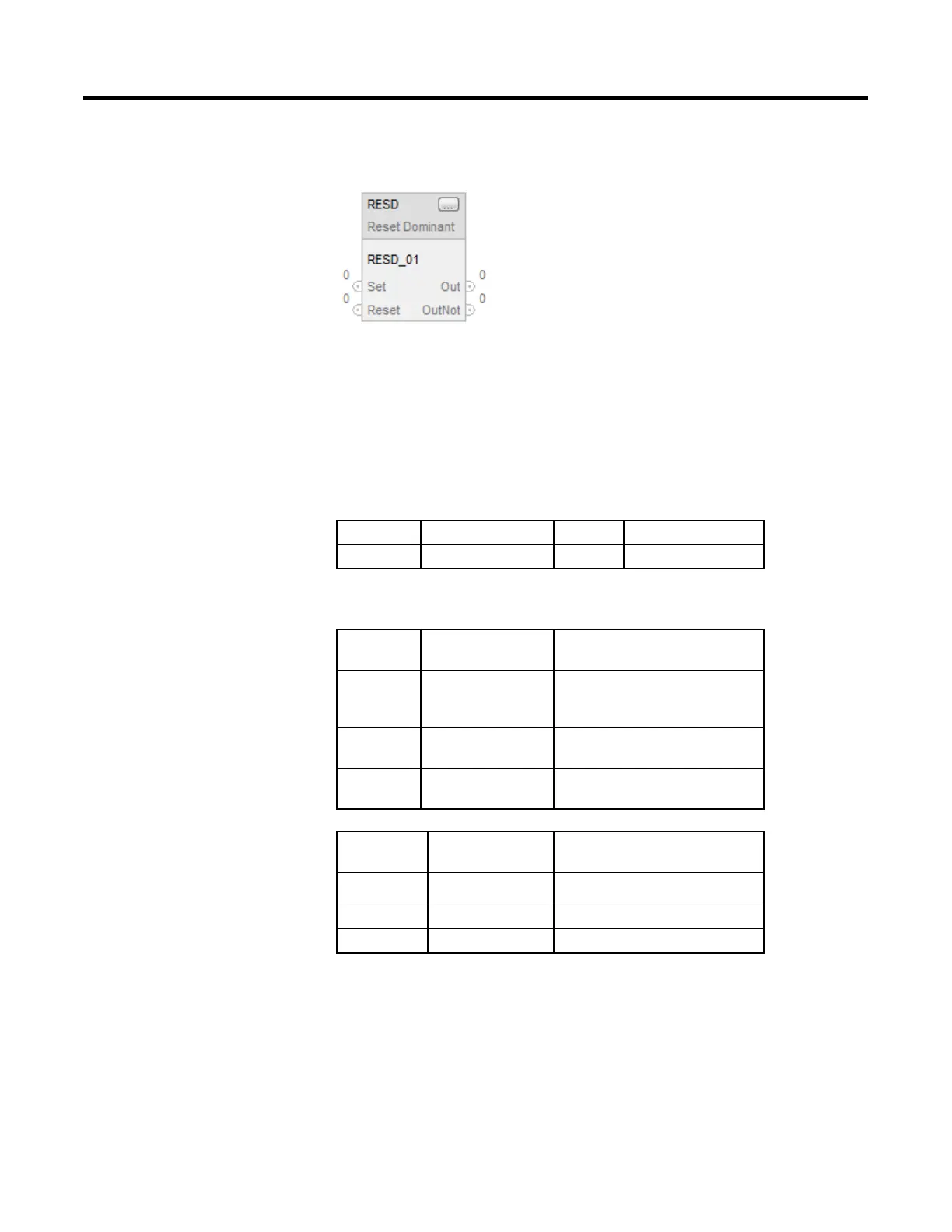

Function Block
Structured Text
RESD(RESD_tag);
Operands
Function Block
Operand Type Format Description
RESD tag DOMINANT_RESET structure RESD structure
DOMINANT_RESET Structure
Input
Parameter
Data Type Description
EnableIn BOOL Enable input. If cleared, the instruction does
not execute and outputs are not updated.
Default is set.
Set BOOL Set input to the instruction.
Default is cleared.
Clear BOOL Reset input to the instruction.
Default is cleared.
Output
Parameter
Data Type Description
EnableOut BOOL Indicates if instruction is enabled.
Out BOOL The output of the instruction.
OutNot BOOL The inverted output of the instruction.
Structured text
See Structured Text Syntax for more information on the syntax of expressions
within structured text.
