Equipment Phase Instructions
426 Rockwell Automation Publication 1756-RM006K-EN-P - November 2018
Example

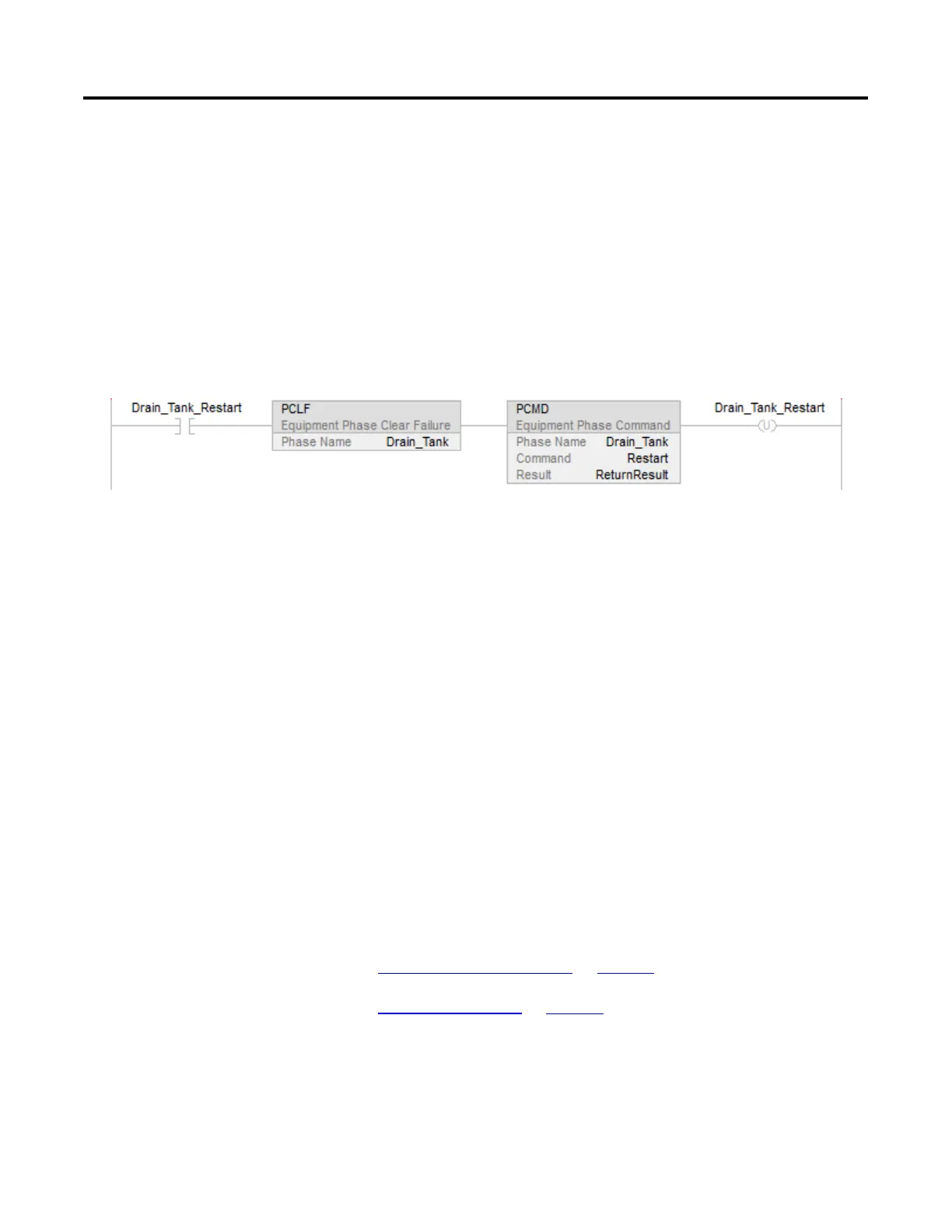

Ladder Diagram
If Drain_Tank_Restart = 1 (restart the Drain_Tank equipment phase) then
Clear the failure code of the Drain_Tank equipment phase
Change the state of the Drain_Tank equipment phase to restarting via the
restart command.
Drain_Tank_Restart = 0;
Structu
red Text
(*If Drain_Tank_Restart = on, then
Clear the failure code for the Drain_Tank equipment phase.
Restart the Drain_Tank equipment phase.
Turn off Drain_Tank_Restart.*)
If Drain_Tank_Restart Then
PCLF(Drain_Tank);
PCMD(Drain_Tank,Restart,0);
Drain_Tank_Restart := 0;
End_If;
See also
Equipment Phase Instructions on page 415
Index Through Arrays on page 551
