Equipment Phase Instructions
Rockwell Automation Publication 1756-RM006K-EN-P - November 2018 431

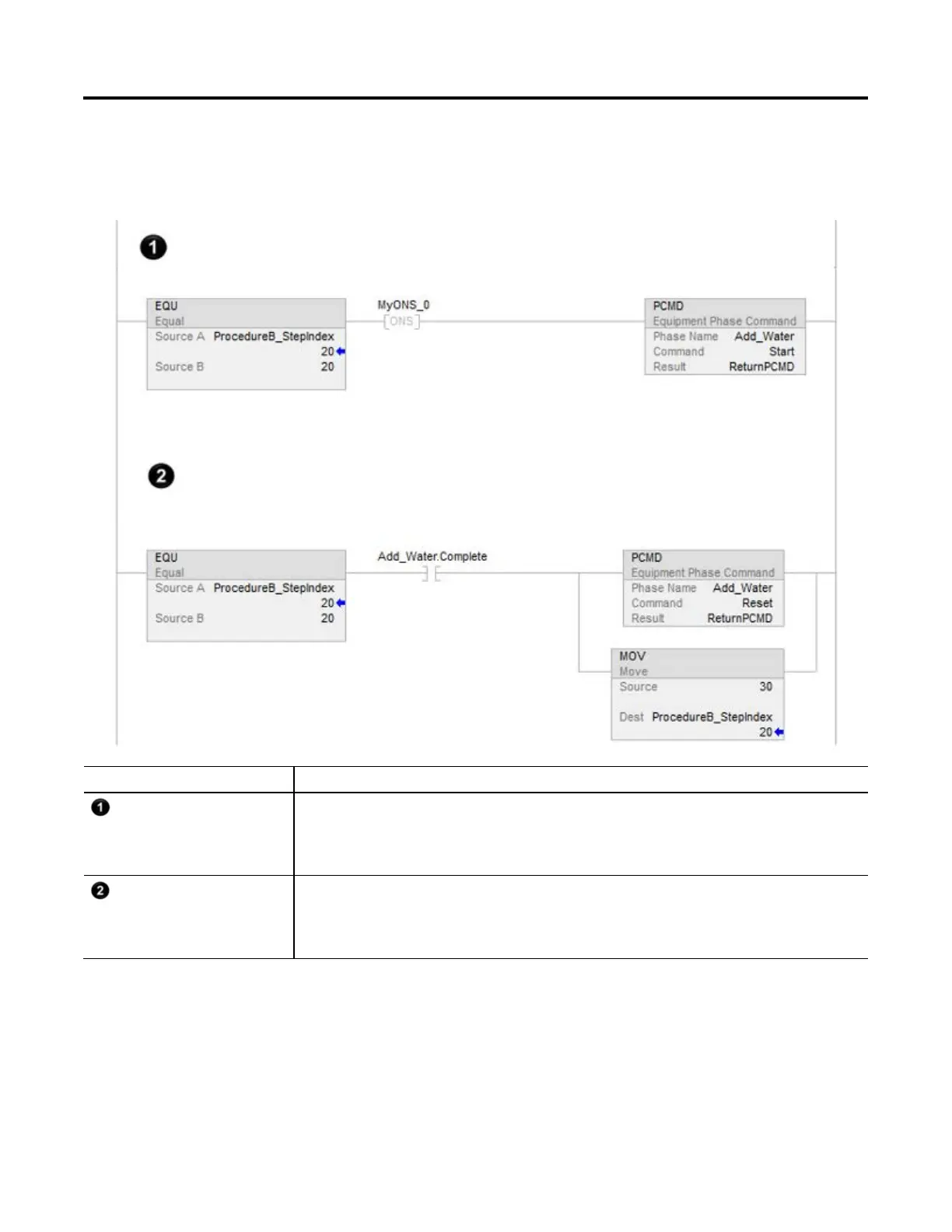

Example 1
Ladder Diagram
Number Description
If ProcedureB_Stepindex = 20 (the routine is at step 20)
And this is the transition to step 20 (the ONS instruction signals that the EQU instruction went from false to true.)
Then
Change the state of the Add_Water equipment phase to running via the start command.
If ProcedureB_Stepindex = 20 (the routine is at step 20)
And the Add_Water equipment phase is complete (Add_Water.Complete = 1)
Then
Change the state of the Add_Water equipment phase to resetting via the reset command. Advance to step 30.
