Allen-Bradley PowerFlex 400 Technical Data

8

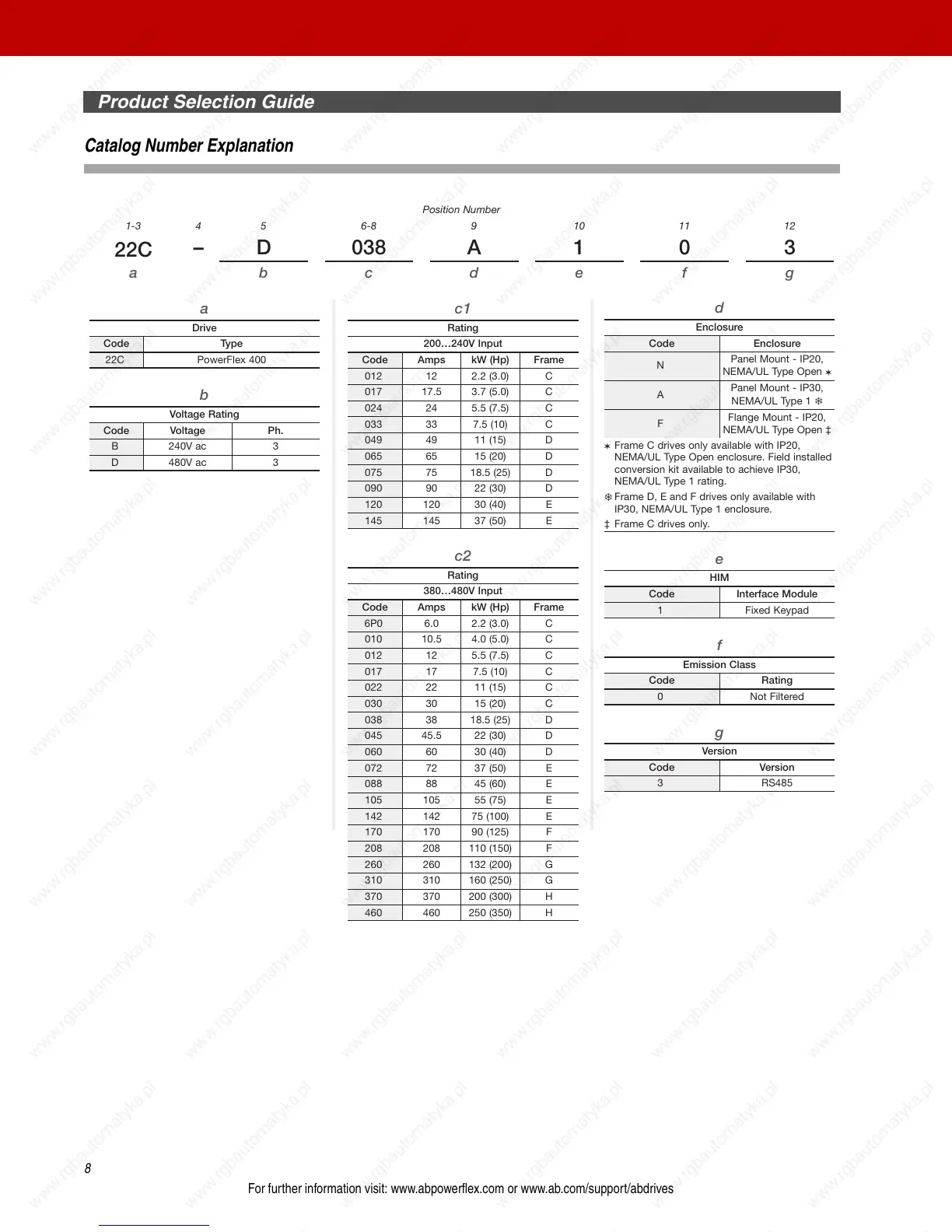

Product Selection Guide
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Catalog Number Explanation
Position Number
1-3 4 5 6-8 9 10 11 12
22C
– D 038 A 1 0 3
a bcde f g
a
Drive
Code Type
22C PowerFlex 400
b
Voltage Rating
Code Voltage Ph.
B 240V ac 3
D 480V ac 3
c1
Rating
200…240V Input
Code Amps kW (Hp) Frame
012 12 2.2 (3.0) C
017 17.5 3.7 (5.0) C
024 24 5.5 (7.5) C
033 33 7.5 (10) C
049 49 11 (15) D
065 65 15 (20) D
075 75 18.5 (25) D
090 90 22 (30) D
120 120 30 (40) E
145 145 37 (50) E
c2
Rating
380…480V Input
Code Amps kW (Hp) Frame
6P0 6.0 2.2 (3.0) C
010 10.5 4.0 (5.0) C
012 12 5.5 (7.5) C
017 17 7.5 (10) C
022 22 11 (15) C
030 30 15 (20) C
038 38 18.5 (25) D
045 45.5 22 (30) D
060 60 30 (40) D
072 72 37 (50) E
088 88 45 (60) E
105 105 55 (75) E
142 142 75 (100) E
170 170 90 (125) F
208 208 110 (150) F
260 260 132 (200) G
310 310 160 (250) G
370 370 200 (300) H
460 460 250 (350) H
d
Enclosure
Code Enclosure
N
Panel Mount - IP20,
NEMA/UL Type Open
A
Panel Mount - IP30,
NEMA/UL Type 1
F
Flange Mount - IP20,
NEMA/UL Type Open ‡
Frame C drives only available with IP20,
NEMA/UL Type Open enclosure. Field installed
conversion kit available to achieve IP30,
NEMA/UL Type 1 rating.
Frame D, E and F drives only available with
IP30, NEMA/UL Type 1 enclosure.
‡ Frame C drives only.
e
HIM
Code Interface Module
1 Fixed Keypad
f
Emission Class
Code Rating
0 Not Filtered
g
Version
Code Version
3 RS485

Allen-Bradley PowerFlex 400 Specifications

General

Input Voltage	200-240VAC, 380-480VAC, 500-600VAC
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Communication	EtherNet/IP
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5-95% non-condensing
Enclosure Rating	IP20
Horsepower	0.5-20 HP
Control Method	V/Hz, Sensorless Vector Control
