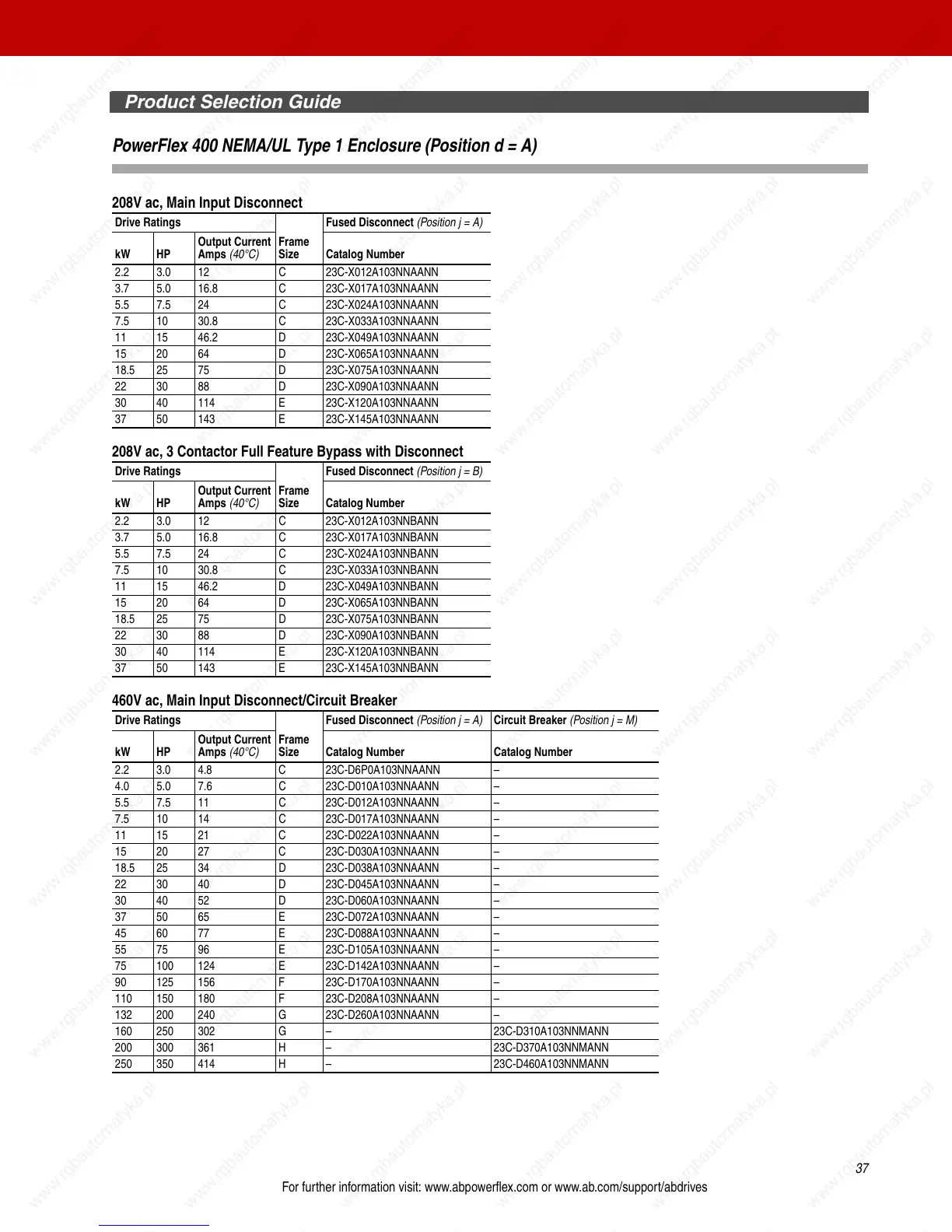

Product Selection Guide
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
PowerFlex 400 NEMA/UL Type 1 Enclosure (Position d = A)
208V ac, Main Input Disconnect
208V ac, 3 Contactor Full Feature Bypass with Disconnect
460V ac, Main Input Disconnect/Circuit Breaker
Drive Ratings
Frame
Size
Fused Disconnect (Position j = A)
kW HP
Output Current
Amps (40°C) Catalog Number
2.2 3.0 12 C 23C-X012A103NNAANN
3.7 5.0 16.8 C 23C-X017A103NNAANN
5.5 7.5 24 C 23C-X024A103NNAANN
7.5 10 30.8 C 23C-X033A103NNAANN
11 15 46.2 D 23C-X049A103NNAANN
15 20 64 D 23C-X065A103NNAANN
18.5 25 75 D 23C-X075A103NNAANN
22 30 88 D 23C-X090A103NNAANN
30 40 114 E 23C-X120A103NNAANN
37 50 143 E 23C-X145A103NNAANN
Drive Ratings
Frame
Size
Fused Disconnect (Position j = B)
kW HP
Output Current
Amps (40°C) Catalog Number
2.2 3.0 12 C 23C-X012A103NNBANN
3.7 5.0 16.8 C 23C-X017A103NNBANN
5.5 7.5 24 C 23C-X024A103NNBANN
7.5 10 30.8 C 23C-X033A103NNBANN
11 15 46.2 D 23C-X049A103NNBANN
15 20 64 D 23C-X065A103NNBANN
18.5 25 75 D 23C-X075A103NNBANN
22 30 88 D 23C-X090A103NNBANN
30 40 114 E 23C-X120A103NNBANN
37 50 143 E 23C-X145A103NNBANN
Drive Ratings
Frame
Size
Fused Disconnect (Position j = A) Circuit Breaker (Position j = M)
kW HP
Output Current
Amps (40°C) Catalog Number Catalog Number
2.2 3.0 4.8 C 23C-D6P0A103NNAANN –
4.0 5.0 7.6 C 23C-D010A103NNAANN –
5.5 7.5 11 C 23C-D012A103NNAANN –
7.5 10 14 C 23C-D017A103NNAANN –
11 15 21 C 23C-D022A103NNAANN –
15 20 27 C 23C-D030A103NNAANN –
18.5 25 34 D 23C-D038A103NNAANN –
22 30 40 D 23C-D045A103NNAANN –
30 40 52 D 23C-D060A103NNAANN –
37 50 65 E 23C-D072A103NNAANN –
45 60 77 E 23C-D088A103NNAANN –
55 75 96 E 23C-D105A103NNAANN –
75 100 124 E 23C-D142A103NNAANN –
90 125 156 F 23C-D170A103NNAANN –
110 150 180 F 23C-D208A103NNAANN –
132 200 240 G 23C-D260A103NNAANN –
160 250 302 G – 23C-D310A103NNMANN
200 300 361 H – 23C-D370A103NNMANN
250 350 414 H – 23C-D460A103NNMANN
