Allen-Bradley PowerFlex 400 Technical Data

13

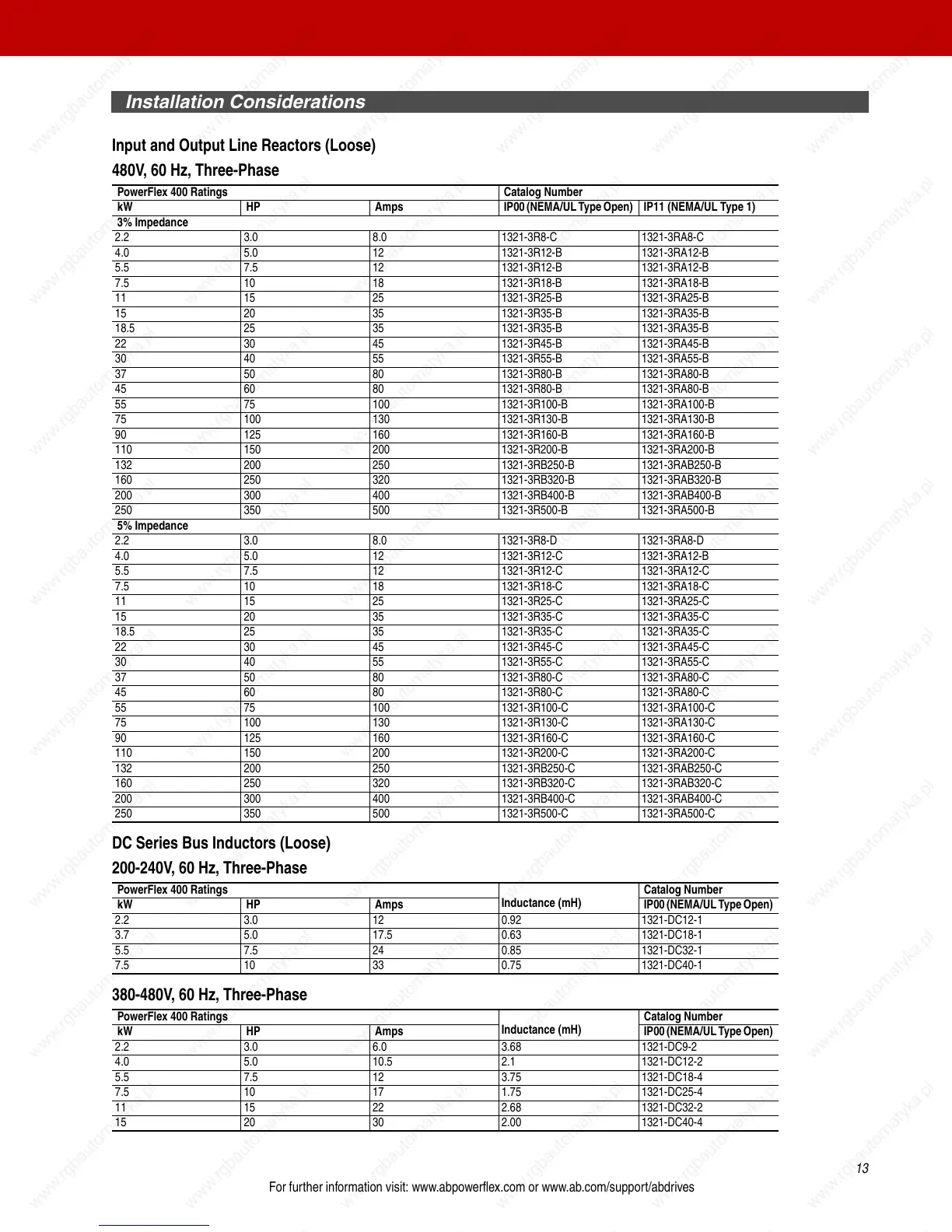

Installation Considerations
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Input and Output Line Reactors (Loose)
480V, 60 Hz, Three-Phase
DC Series Bus Inductors (Loose)
200-240V, 60 Hz, Three-Phase
380-480V, 60 Hz, Three-Phase
PowerFlex 400 Ratings Catalog Number
kW HP Amps IP00 (NEMA/UL Type Open) IP11 (NEMA/UL Type 1)
3% Impedance
2.2 3.0 8.0 1321-3R8-C 1321-3RA8-C
4.0 5.0 12 1321-3R12-B 1321-3RA12-B
5.5 7.5 12 1321-3R12-B 1321-3RA12-B
7.5 10 18 1321-3R18-B 1321-3RA18-B
11 15 25 1321-3R25-B 1321-3RA25-B
15 20 35 1321-3R35-B 1321-3RA35-B
18.5 25 35 1321-3R35-B 1321-3RA35-B
22 30 45 1321-3R45-B 1321-3RA45-B
30 40 55 1321-3R55-B 1321-3RA55-B
37 50 80 1321-3R80-B 1321-3RA80-B
45 60 80 1321-3R80-B 1321-3RA80-B
55 75 100 1321-3R100-B 1321-3RA100-B
75 100 130 1321-3R130-B 1321-3RA130-B
90 125 160 1321-3R160-B 1321-3RA160-B
110 150 200 1321-3R200-B 1321-3RA200-B
132 200 250 1321-3RB250-B 1321-3RAB250-B
160 250 320 1321-3RB320-B 1321-3RAB320-B
200 300 400 1321-3RB400-B 1321-3RAB400-B
250 350 500 1321-3R500-B 1321-3RA500-B
5% Impedance
2.2 3.0 8.0 1321-3R8-D 1321-3RA8-D
4.0 5.0 12 1321-3R12-C 1321-3RA12-B
5.5 7.5 12 1321-3R12-C 1321-3RA12-C
7.5 10 18 1321-3R18-C 1321-3RA18-C
11 15 25 1321-3R25-C 1321-3RA25-C
15 20 35 1321-3R35-C 1321-3RA35-C
18.5 25 35 1321-3R35-C 1321-3RA35-C
22 30 45 1321-3R45-C 1321-3RA45-C
30 40 55 1321-3R55-C 1321-3RA55-C
37 50 80 1321-3R80-C 1321-3RA80-C
45 60 80 1321-3R80-C 1321-3RA80-C
55 75 100 1321-3R100-C 1321-3RA100-C
75 100 130 1321-3R130-C 1321-3RA130-C
90 125 160 1321-3R160-C 1321-3RA160-C
110 150 200 1321-3R200-C 1321-3RA200-C
132 200 250 1321-3RB250-C 1321-3RAB250-C
160 250 320 1321-3RB320-C 1321-3RAB320-C
200 300 400 1321-3RB400-C 1321-3RAB400-C
250 350 500 1321-3R500-C 1321-3RA500-C
PowerFlex 400 Ratings
Inductance (mH)
Catalog Number
kW HP Amps IP00 (NEMA/UL Type Open)
2.2 3.0 12 0.92 1321-DC12-1
3.7 5.0 17.5 0.63 1321-DC18-1
5.5 7.5 24 0.85 1321-DC32-1
7.5 10 33 0.75 1321-DC40-1
PowerFlex 400 Ratings
Inductance (mH)
Catalog Number
kW HP Amps IP00 (NEMA/UL Type Open)
2.2 3.0 6.0 3.68 1321-DC9-2
4.0 5.0 10.5 2.1 1321-DC12-2
5.5 7.5 12 3.75 1321-DC18-4
7.5 10 17 1.75 1321-DC25-4
11 15 22 2.68 1321-DC32-2
15 20 30 2.00 1321-DC40-4

Allen-Bradley PowerFlex 400 Specifications

General

Input Voltage	200-240VAC, 380-480VAC, 500-600VAC
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Communication	EtherNet/IP
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5-95% non-condensing
Enclosure Rating	IP20
Horsepower	0.5-20 HP
Control Method	V/Hz, Sensorless Vector Control
