35

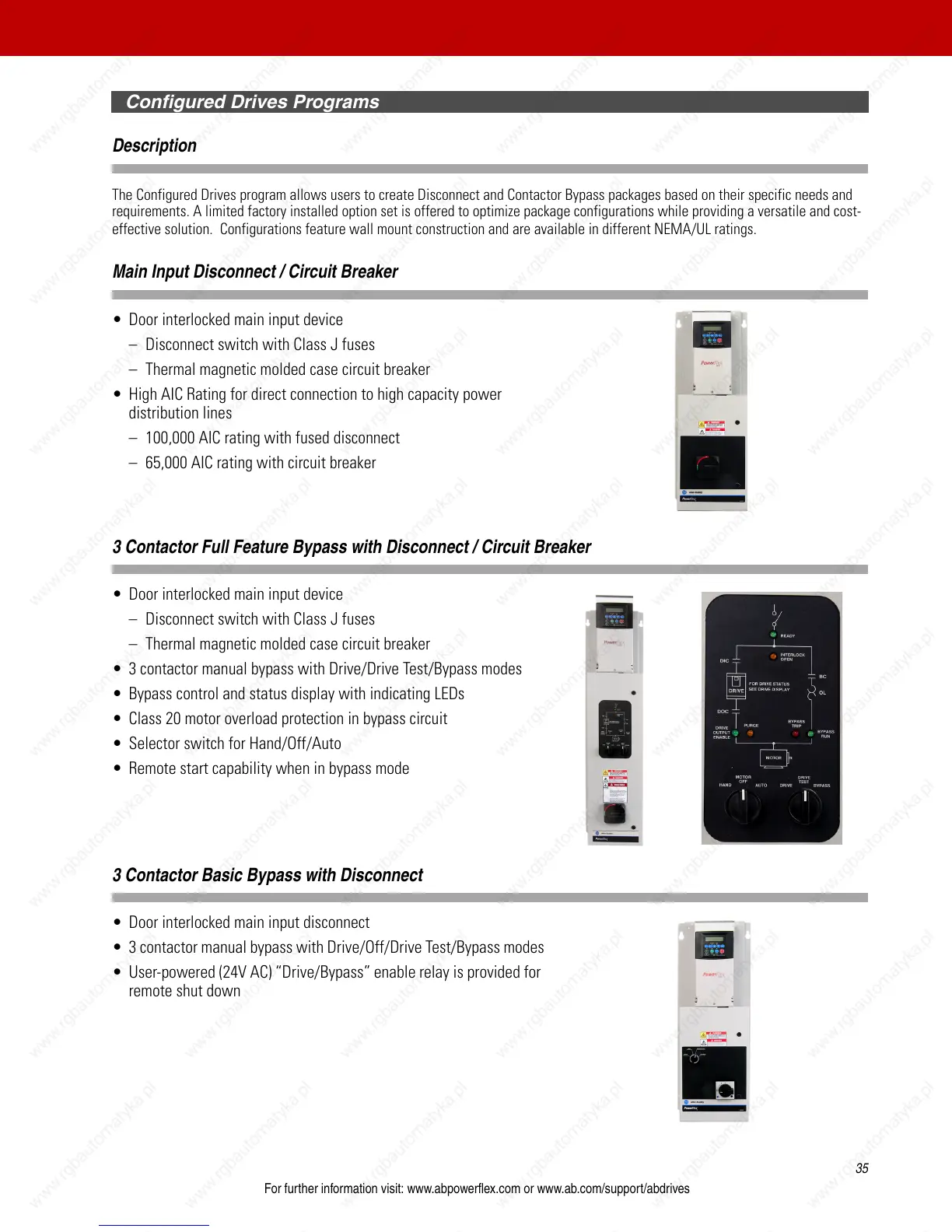

Configured Drives Programs
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Description
The Configured Drives program allows users to create Disconnect and Contactor Bypass packages based on their specific needs and
requirements. A limited factory installed option set is offered to optimize package configurations while providing a versatile and cost-
effective solution. Configurations feature wall mount construction and are available in different NEMA/UL ratings.
Main Input Disconnect / Circuit Breaker
• Door interlocked main input device
– Disconnect switch with Class J fuses
– Thermal magnetic molded case circuit breaker
• High AIC Rating for direct connection to high capacity power
distribution lines
– 100,000 AIC rating with fused disconnect
– 65,000 AIC rating with circuit breaker
3 Contactor Full Feature Bypass with Disconnect / Circuit Breaker
• Door interlocked main input device
– Disconnect switch with Class J fuses
– Thermal magnetic molded case circuit breaker
• 3 contactor manual bypass with Drive/Drive Test/Bypass modes
• Bypass control and status display with indicating LEDs
• Class 20 motor overload protection in bypass circuit
• Selector switch for Hand/Off/Auto
• Remote start capability when in bypass mode
3 Contactor Basic Bypass with Disconnect
• Door interlocked main input disconnect
• 3 contactor manual bypass with Drive/Off/Drive Test/Bypass modes
• User-powered (24V AC) “Drive/Bypass” enable relay is provided for
remote shut down
