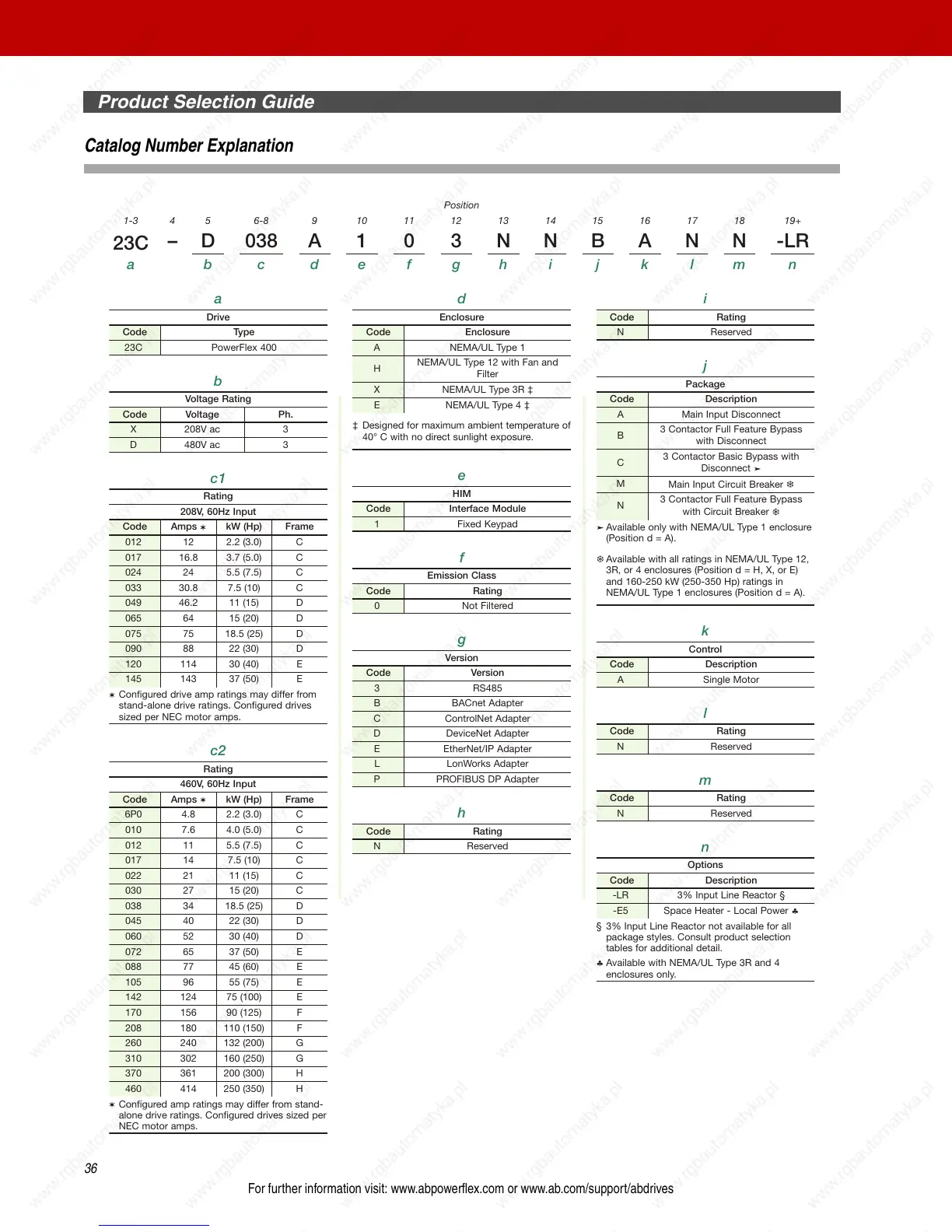

Position
1-345 6-8 9 101112131415161718 19+
23C
– D 038 A 1 0 3 N N B A N N -LR
a bcdefghijklmn
a
Drive
Code Type
23C PowerFlex 400
b
Voltage Rating
Code Voltage Ph.
X 208V ac 3
D 480V ac 3
e
HIM
Code Interface Module
1 Fixed Keypad
f
Emission Class
Code Rating
0 Not Filtered
g
Version
Code Version
3RS485
B BACnet Adapter
C ControlNet Adapter
D DeviceNet Adapter
E EtherNet/IP Adapter
L LonWorks Adapter
P PROFIBUS DP Adapter
h
Code Rating
N Reserved
i
Code Rating
N Reserved
j
Package
Code Description
A Main Input Disconnect
B
3 Contactor Full Feature Bypass
with Disconnect
C
3 Contactor Basic Bypass with
Disconnect
M
Main Input Circuit Breaker
N
3 Contactor Full Feature Bypass
with Circuit Breaker
Available only with NEMA/UL Type 1 enclosure
(Position d = A).
Available with all ratings in NEMA/UL Type 12,
3R, or 4 enclosures (Position d = H, X, or E)
and 160-250 kW (250-350 Hp) ratings in
NEMA/UL Type 1 enclosures (Position d = A).
k
Control
Code Description
A Single Motor
l
Code Rating
N Reserved
m
Code Rating
N Reserved
c2
Rating
460V, 60Hz Input
Code
Amps
kW (Hp) Frame
6P0 4.8 2.2 (3.0) C
010 7.6 4.0 (5.0) C
012 11 5.5 (7.5) C
017 14 7.5 (10) C
022 21 11 (15) C
030 27 15 (20) C
038 34 18.5 (25) D
045 40 22 (30) D
060 52 30 (40) D
072 65 37 (50) E
088 77 45 (60) E
105 96 55 (75) E
142 124 75 (100) E
170 156 90 (125) F
208 180 110 (150) F
260 240 132 (200) G
310 302 160 (250) G
370 361 200 (300) H
460 414 250 (350) H
Configured amp ratings may differ from stand-
alone drive ratings. Configured drives sized per
NEC motor amps.
c1
Rating
208V, 60Hz Input
Code
Amps
kW (Hp) Frame
012 12 2.2 (3.0) C
017 16.8 3.7 (5.0) C
024 24 5.5 (7.5) C
033 30.8 7.5 (10) C
049 46.2 11 (15) D
065 64 15 (20) D
075 75 18.5 (25) D
090 88 22 (30) D
120 114 30 (40) E
145 143 37 (50) E
Configured drive amp ratings may differ from
stand-alone drive ratings. Configured drives
sized per NEC motor amps.
d
Enclosure
Code Enclosure
A NEMA/UL Type 1
H
NEMA/UL Type 12 with Fan and
Filter
X NEMA/UL Type 3R ‡
E NEMA/UL Type 4 ‡
‡ Designed for maximum ambient temperature of
40° C with no direct sunlight exposure.
n
Options
Code Description
-LR 3% Input Line Reactor §
-E5
Space Heater - Local Power ♣
§ 3% Input Line Reactor not available for all
package styles. Consult product selection
tables for additional detail.
♣ Available with NEMA/UL Type 3R and 4
enclosures only.
