Allen-Bradley PowerFlex 400 Technical Data

12

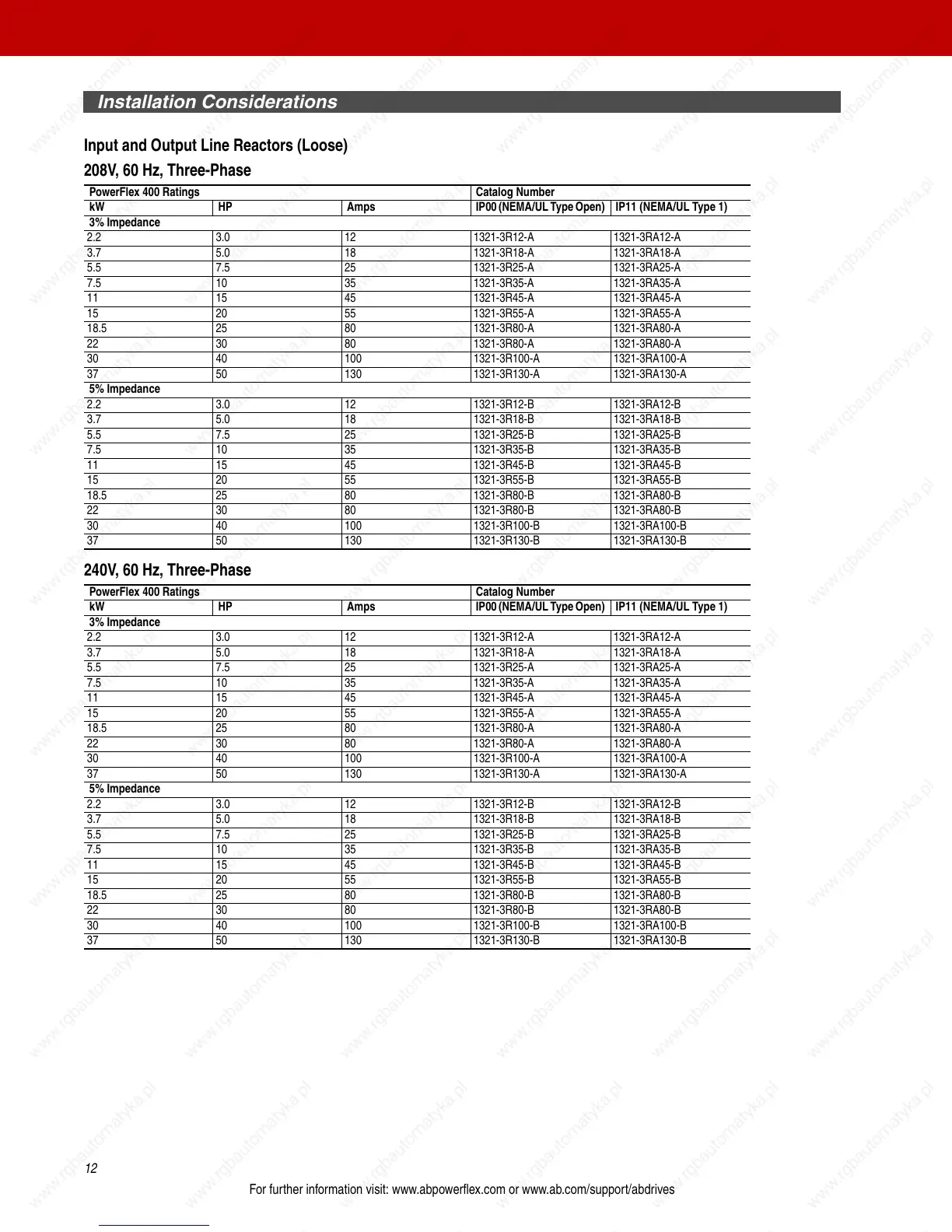

Installation Considerations
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Input and Output Line Reactors (Loose)
208V, 60 Hz, Three-Phase
240V, 60 Hz, Three-Phase
PowerFlex 400 Ratings Catalog Number
kW HP Amps IP00 (NEMA/UL Type Open) IP11 (NEMA/UL Type 1)
3% Impedance
2.2 3.0 12 1321-3R12-A 1321-3RA12-A
3.7 5.0 18 1321-3R18-A 1321-3RA18-A
5.5 7.5 25 1321-3R25-A 1321-3RA25-A
7.5 10 35 1321-3R35-A 1321-3RA35-A
11 15 45 1321-3R45-A 1321-3RA45-A
15 20 55 1321-3R55-A 1321-3RA55-A
18.5 25 80 1321-3R80-A 1321-3RA80-A
22 30 80 1321-3R80-A 1321-3RA80-A
30 40 100 1321-3R100-A 1321-3RA100-A
37 50 130 1321-3R130-A 1321-3RA130-A
5% Impedance
2.2 3.0 12 1321-3R12-B 1321-3RA12-B
3.7 5.0 18 1321-3R18-B 1321-3RA18-B
5.5 7.5 25 1321-3R25-B 1321-3RA25-B
7.5 10 35 1321-3R35-B 1321-3RA35-B
11 15 45 1321-3R45-B 1321-3RA45-B
15 20 55 1321-3R55-B 1321-3RA55-B
18.5 25 80 1321-3R80-B 1321-3RA80-B
22 30 80 1321-3R80-B 1321-3RA80-B
30 40 100 1321-3R100-B 1321-3RA100-B
37 50 130 1321-3R130-B 1321-3RA130-B
PowerFlex 400 Ratings Catalog Number
kW HP Amps IP00 (NEMA/UL Type Open) IP11 (NEMA/UL Type 1)
3% Impedance
2.2 3.0 12 1321-3R12-A 1321-3RA12-A
3.7 5.0 18 1321-3R18-A 1321-3RA18-A
5.5 7.5 25 1321-3R25-A 1321-3RA25-A
7.5 10 35 1321-3R35-A 1321-3RA35-A
11 15 45 1321-3R45-A 1321-3RA45-A
15 20 55 1321-3R55-A 1321-3RA55-A
18.5 25 80 1321-3R80-A 1321-3RA80-A
22 30 80 1321-3R80-A 1321-3RA80-A
30 40 100 1321-3R100-A 1321-3RA100-A
37 50 130 1321-3R130-A 1321-3RA130-A
5% Impedance
2.2 3.0 12 1321-3R12-B 1321-3RA12-B
3.7 5.0 18 1321-3R18-B 1321-3RA18-B
5.5 7.5 25 1321-3R25-B 1321-3RA25-B
7.5 10 35 1321-3R35-B 1321-3RA35-B
11 15 45 1321-3R45-B 1321-3RA45-B
15 20 55 1321-3R55-B 1321-3RA55-B
18.5 25 80 1321-3R80-B 1321-3RA80-B
22 30 80 1321-3R80-B 1321-3RA80-B
30 40 100 1321-3R100-B 1321-3RA100-B
37 50 130 1321-3R130-B 1321-3RA130-B

Allen-Bradley PowerFlex 400 Specifications

General

Input Voltage	200-240VAC, 380-480VAC, 500-600VAC
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Communication	EtherNet/IP
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5-95% non-condensing
Enclosure Rating	IP20
Horsepower	0.5-20 HP
Control Method	V/Hz, Sensorless Vector Control
