Allen-Bradley PowerFlex 400 Technical Data

14

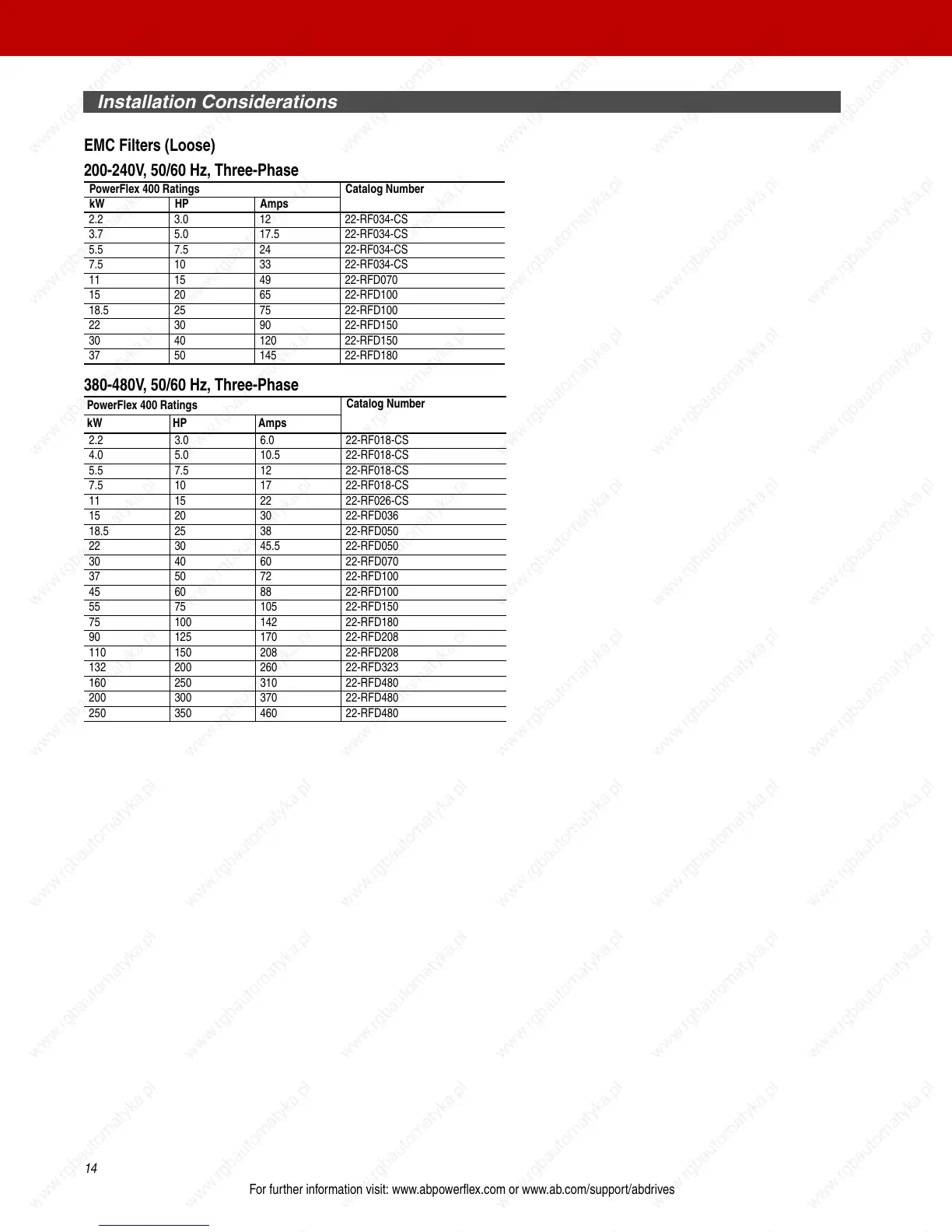

Installation Considerations
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
EMC Filters (Loose)
200-240V, 50/60 Hz, Three-Phase
380-480V, 50/60 Hz, Three-Phase
PowerFlex 400 Ratings Catalog Number
kW HP Amps
2.2 3.0 12 22-RF034-CS
3.7 5.0 17.5 22-RF034-CS
5.5 7.5 24 22-RF034-CS
7.5 10 33 22-RF034-CS
11 15 49 22-RFD070
15 20 65 22-RFD100
18.5 25 75 22-RFD100
22 30 90 22-RFD150
30 40 120 22-RFD150
37 50 145 22-RFD180
PowerFlex 400 Ratings
Catalog Number
kW HP Amps
2.2 3.0 6.0 22-RF018-CS
4.0 5.0 10.5 22-RF018-CS
5.5 7.5 12 22-RF018-CS
7.5 10 17 22-RF018-CS
11 15 22 22-RF026-CS
15 20 30 22-RFD036
18.5 25 38 22-RFD050
22 30 45.5 22-RFD050
30 40 60 22-RFD070
37 50 72 22-RFD100
45 60 88 22-RFD100
55 75 105 22-RFD150
75 100 142 22-RFD180
90 125 170 22-RFD208
110 150 208 22-RFD208
132 200 260 22-RFD323
160 250 310 22-RFD480
200 300 370 22-RFD480
250 350 460 22-RFD480

Allen-Bradley PowerFlex 400 Specifications

General

Input Voltage	200-240VAC, 380-480VAC, 500-600VAC
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Communication	EtherNet/IP
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5-95% non-condensing
Enclosure Rating	IP20
Horsepower	0.5-20 HP
Control Method	V/Hz, Sensorless Vector Control
