Allen-Bradley PowerFlex 400 Technical Data

21
Specifications
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives

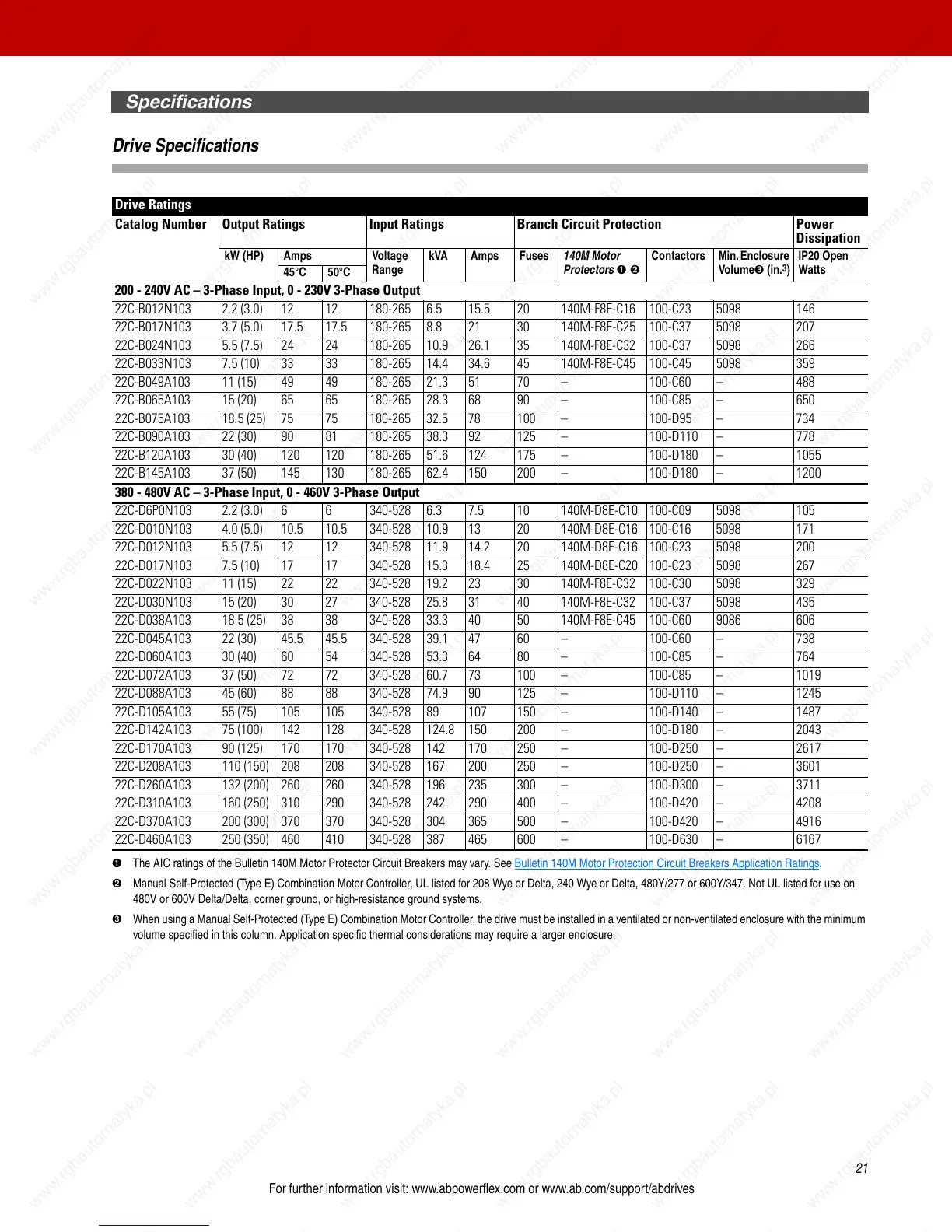

Drive Specifications
➊ The AIC ratings of the Bulletin 140M Motor Protector Circuit Breakers may vary. See Bulletin 140M Motor Protection Circuit Breakers Application Ratings.
➋ Manual Self-Protected (Type E) Combination Motor Controller, UL listed for 208 Wye or Delta, 240 Wye or Delta, 480Y/277 or 600Y/347. Not UL listed for use on
480V or 600V Delta/Delta, corner ground, or high-resistance ground systems.
➌ When using a Manual Self-Protected (Type E) Combination Motor Controller, the drive must be installed in a ventilated or non-ventilated enclosure with the minimum
volume specified in this column. Application specific thermal considerations may require a larger enclosure.
Drive Ratings
Catalog Number Output Ratings Input Ratings Branch Circuit Protection Power
Dissipation
kW (HP) Amps Voltage
Range
kVA Amps Fuses 140M Motor
Protectors ➊ ➋
Contactors Min. Enclosure
Volume➌ (in.
3
)
IP20 Open
Watts
45°C 50°C
200 - 240V AC – 3-Phase Input, 0 - 230V 3-Phase Output
22C-B012N103 2.2 (3.0) 12 12 180-265 6.5 15.5 20 140M-F8E-C16 100-C23 5098 146
22C-B017N103 3.7 (5.0) 17.5 17.5 180-265 8.8 21 30 140M-F8E-C25 100-C37 5098 207
22C-B024N103 5.5 (7.5) 24 24 180-265 10.9 26.1 35 140M-F8E-C32 100-C37 5098 266
22C-B033N103 7.5 (10) 33 33 180-265 14.4 34.6 45 140M-F8E-C45 100-C45 5098 359
22C-B049A103 11 (15) 49 49 180-265 21.3 51 70 – 100-C60 – 488
22C-B065A103 15 (20) 65 65 180-265 28.3 68 90 – 100-C85 – 650
22C-B075A103 18.5 (25) 75 75 180-265 32.5 78 100 – 100-D95 – 734
22C-B090A103 22 (30) 90 81 180-265 38.3 92 125 – 100-D110 – 778
22C-B120A103 30 (40) 120 120 180-265 51.6 124 175 – 100-D180 – 1055
22C-B145A103 37 (50) 145 130 180-265 62.4 150 200 – 100-D180 – 1200
380 - 480V AC – 3-Phase
Input, 0 - 460V 3-Phase Output
22C-D6P0N103 2.2 (3.0) 6 6 340-528 6.3 7.5 10 140M-D8E-C10 100-C09 5098 105
22C-D010N103 4.0 (5.0) 10.5 10.5 340-528 10.9 13 20 140M-D8E-C16 100-C16 5098 171
22C-D012N103 5.5 (7.5) 12 12 340-528 11.9 14.2 20 140M-D8E-C16 100-C23 5098 200
22C-D017N103 7.5 (10) 17 17 340-528 15.3 18.4 25 140M-D8E-C20 100-C23 5098 267
22C-D022N103 11 (15) 22 22 340-528 19.2 23 30 140M-F8E-C32 100-C30 5098 329
22C-D030N103 15 (20) 30 27 340-528 25.8 31 40 140M-F8E-C32 100-C37 5098 435
22C-D038A103 18.5 (25) 38 38 340-528 33.3 40 50 140M-F8E-C45 100-C60 9086 606
22C-D045A103 22 (30) 45.5 45.5 340-528 39.1 47 60 – 100-C60 – 738
22C-D060A103 30 (40) 60 54 340-528 53.3 64 80 – 100-C85 – 764
22C-D072A103 37 (50) 72 72 340-528 60.7 73 100 – 100-C85 – 1019
22C-D088A103 45 (60) 88 88 340-528 74.9 90 125 – 100-D110 – 1245
22C-D105A103 55 (75) 105 105 340-528 89 107 150 – 100-D140 – 1487
22C-D142A103 75 (100) 142 128 340-528 124.8 150 200 – 100-D180 – 2043
22C-D170A103 90 (125) 170 170 340-528 142 170 250 – 100-D250 – 2617
22C-D208A103 110 (150) 208 208 340-528 167 200 250 – 100-D250 – 3601
22C-D260A103 132 (200) 260 260 340-528 196 235 300 – 100-D300 – 3711
22C-D310A103 160 (250) 310 290 340-528 242 290 400 – 100-D420 – 4208
22C-D370A103 200 (300) 370 370 340-528 304 365 500 – 100-D420 – 4916
22C-D460A103 250 (350) 460 410 340-528 387 465 600 – 100-D630 – 6167

Allen-Bradley PowerFlex 400 Specifications

General

Input Voltage	200-240VAC, 380-480VAC, 500-600VAC
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Communication	EtherNet/IP
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5-95% non-condensing
Enclosure Rating	IP20
Horsepower	0.5-20 HP
Control Method	V/Hz, Sensorless Vector Control
