9

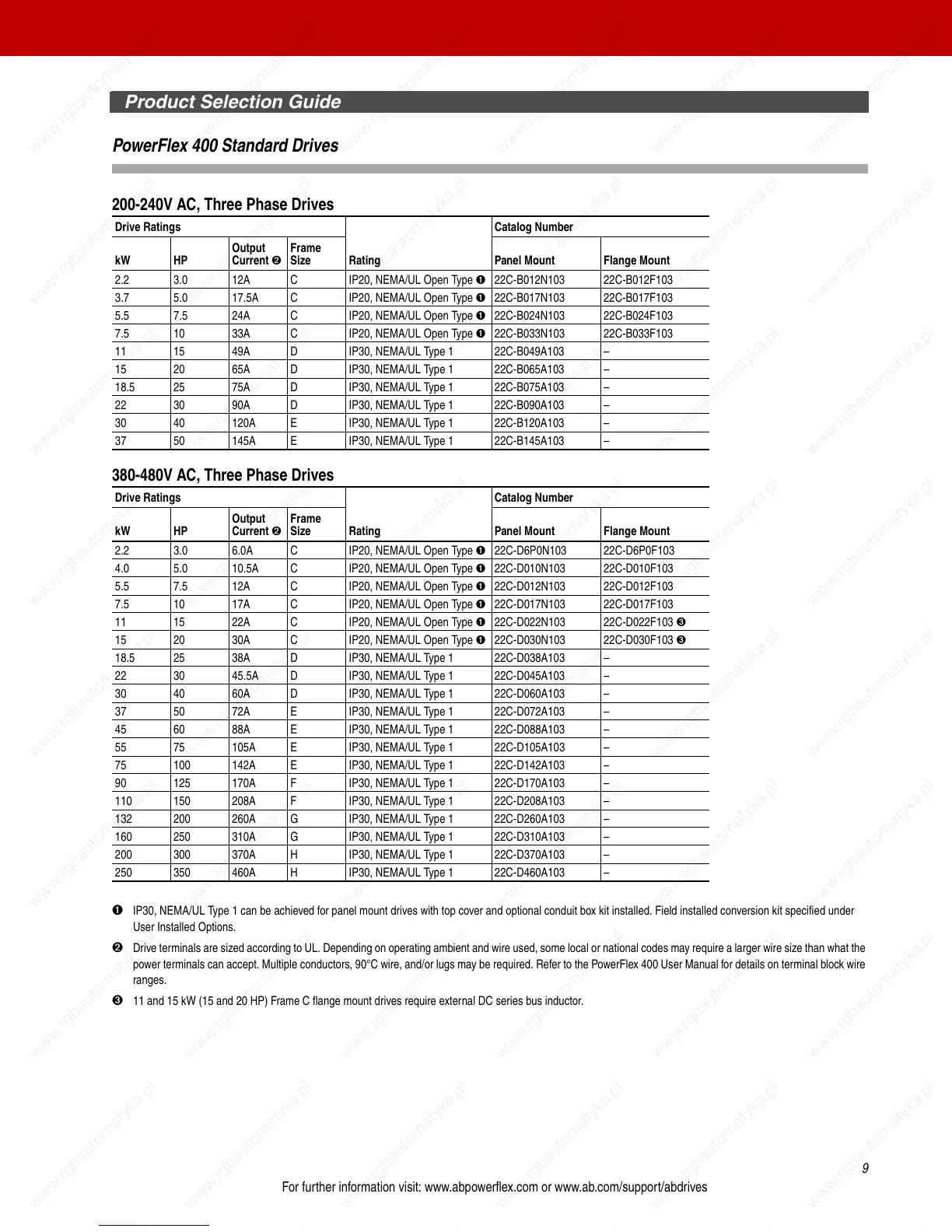

Product Selection Guide
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
PowerFlex 400 Standard Drives
200-240V AC, Three Phase Drives
380-480V AC, Three Phase Drives
IP30, NEMA/UL Type 1 can be achieved for panel mount drives with top cover and optional conduit box kit installed. Field installed conversion kit specified under
User Installed Options.
Drive terminals are sized according to UL. Depending on operating ambient and wire used, some local or national codes may require a larger wire size than what the
power terminals can accept. Multiple conductors, 90°C wire, and/or lugs may be required. Refer to the PowerFlex 400 User Manual for details on terminal block wire
ranges.
11 and 15 kW (15 and 20 HP) Frame C flange mount drives require external DC series bus inductor.
Drive Ratings
Rating
Catalog Number
kW HP
Output
Current
Frame
Size Panel Mount Flange Mount
2.2 3.0 12A C IP20, NEMA/UL Open Type 22C-B012N103 22C-B012F103
3.7 5.0 17.5A C IP20, NEMA/UL Open Type 22C-B017N103 22C-B017F103
5.5 7.5 24A C IP20, NEMA/UL Open Type 22C-B024N103 22C-B024F103
7.5 10 33A C IP20, NEMA/UL Open Type 22C-B033N103 22C-B033F103
11 15 49A D IP30, NEMA/UL Type 1 22C-B049A103
15 20 65A D IP30, NEMA/UL Type 1 22C-B065A103
18.5 25 75A D IP30, NEMA/UL Type 1 22C-B075A103
22 30 90A D IP30, NEMA/UL Type 1 22C-B090A103
30 40 120A E IP30, NEMA/UL Type 1 22C-B120A103
37 50 145A E IP30, NEMA/UL Type 1 22C-B145A103
Drive Ratings
Rating
Catalog Number
kW HP
Output
Current
Frame
Size Panel Mount Flange Mount
2.2 3.0 6.0A C IP20, NEMA/UL Open Type 22C-D6P0N103 22C-D6P0F103
4.0 5.0 10.5A C IP20, NEMA/UL Open Type 22C-D010N103 22C-D010F103
5.5 7.5 12A C IP20, NEMA/UL Open Type 22C-D012N103 22C-D012F103
7.5 10 17A C IP20, NEMA/UL Open Type 22C-D017N103 22C-D017F103
11 15 22A C IP20, NEMA/UL Open Type 22C-D022N103 22C-D022F103
15 20 30A C IP20, NEMA/UL Open Type 22C-D030N103 22C-D030F103
18.5 25 38A D IP30, NEMA/UL Type 1 22C-D038A103
22 30 45.5A D IP30, NEMA/UL Type 1 22C-D045A103
30 40 60A D IP30, NEMA/UL Type 1 22C-D060A103
37 50 72A E IP30, NEMA/UL Type 1 22C-D072A103
45 60 88A E IP30, NEMA/UL Type 1 22C-D088A103
55 75 105A E IP30, NEMA/UL Type 1 22C-D105A103
75 100 142A E IP30, NEMA/UL Type 1 22C-D142A103
90 125 170A F IP30, NEMA/UL Type 1 22C-D170A103
110 150 208A F IP30, NEMA/UL Type 1 22C-D208A103
132 200 260A G IP30, NEMA/UL Type 1 22C-D260A103
160 250 310A G IP30, NEMA/UL Type 1 22C-D310A103
200 300 370A H IP30, NEMA/UL Type 1 22C-D370A103
250 350 460A H IP30, NEMA/UL Type 1 22C-D460A103
