Specifications
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives

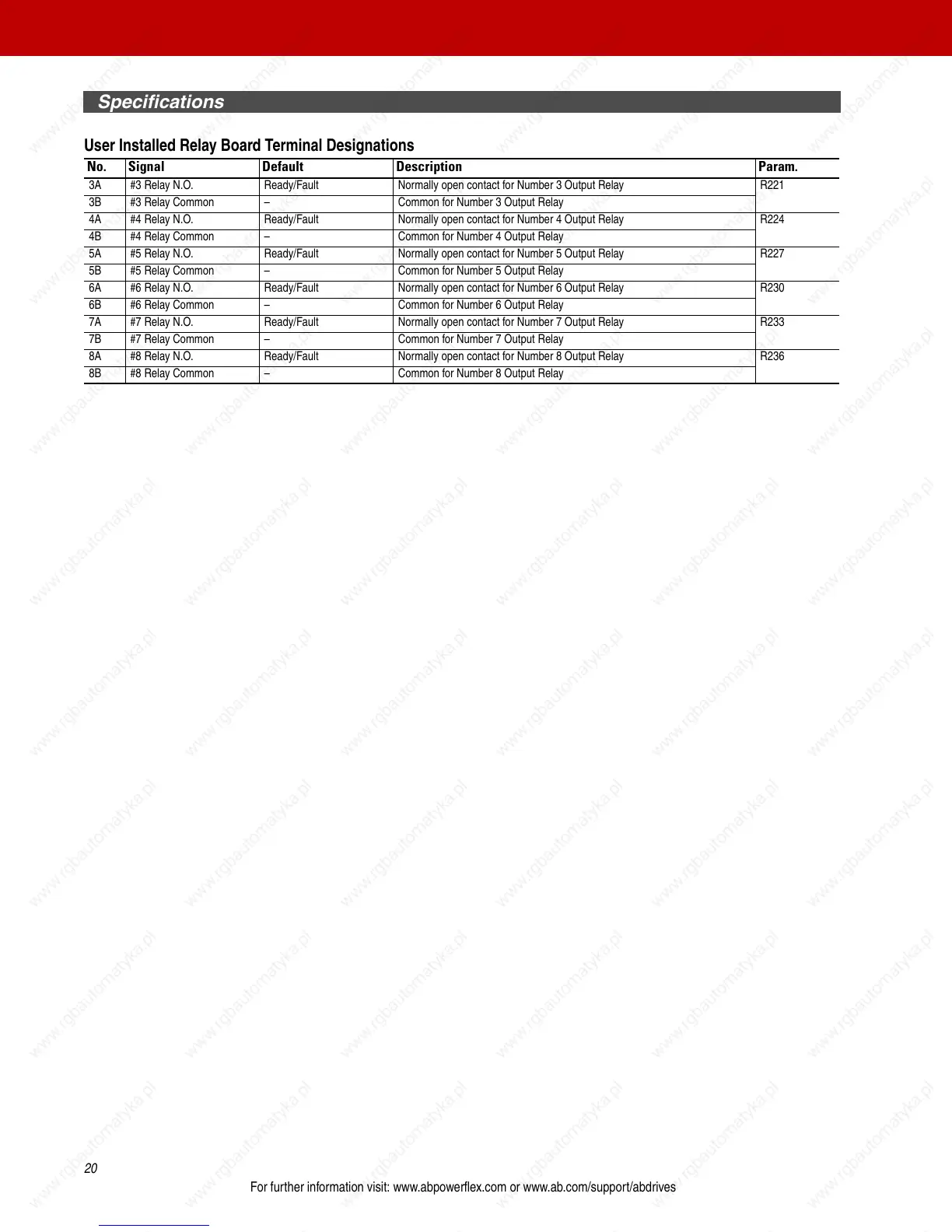

User Installed Relay Board Terminal Designations
No. Signal Default Description Param.
3A #3 Relay N.O. Ready/Fault Normally open contact for Number 3 Output Relay R221
3B #3 Relay Common – Common for Number 3 Output Relay
4A #4 Relay N.O. Ready/Fault Normally open contact for Number 4 Output Relay R224
4B #4 Relay Common – Common for Number 4 Output Relay
5A #5 Relay N.O. Ready/Fault Normally open contact for Number 5 Output Relay R227
5B #5 Relay Common – Common for Number 5 Output Relay
6A #6 Relay N.O. Ready/Fault Normally open contact for Number 6 Output Relay R230
6B #6 Relay Common – Common for Number 6 Output Relay
7A #7 Relay N.O. Ready/Fault Normally open contact for Number 7 Output Relay R233
7B #7 Relay Common – Common for Number 7 Output Relay
8A #8 Relay N.O. Ready/Fault Normally open contact for Number 8 Output Relay R236
8B #8 Relay Common – Common for Number 8 Output Relay

Allen-Bradley PowerFlex 400 Specifications

General

Input Voltage	200-240VAC, 380-480VAC, 500-600VAC
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Communication	EtherNet/IP
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5-95% non-condensing
Enclosure Rating	IP20
Horsepower	0.5-20 HP
Control Method	V/Hz, Sensorless Vector Control
