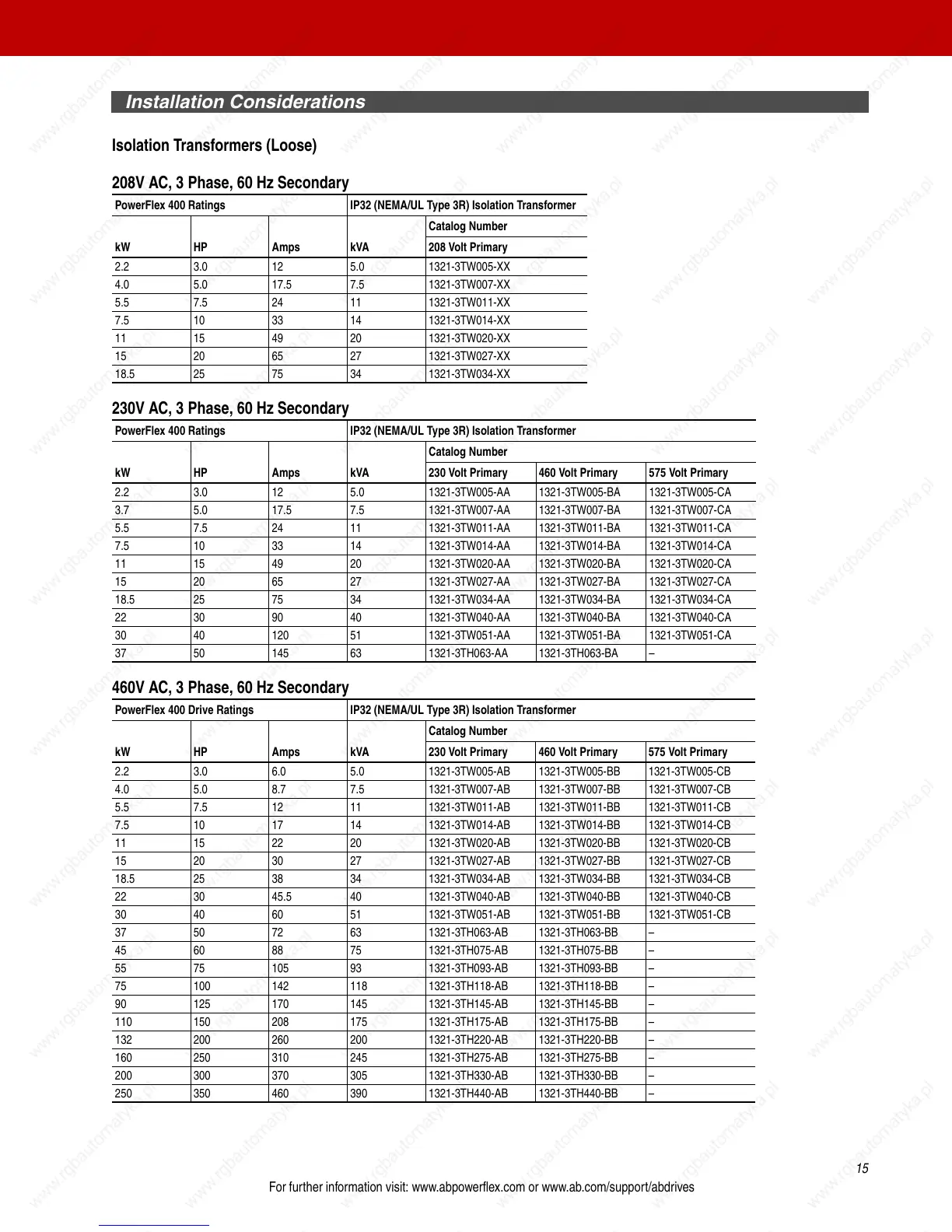

Allen-Bradley PowerFlex 400 Technical Data

15
Installation Considerations
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Isolation Transformers (Loose)
208V AC, 3 Phase, 60 Hz Secondary
230V AC, 3 Phase, 60 Hz Secondary
460V AC, 3 Phase, 60 Hz Secondary
PowerFlex 400 Ratings IP32 (NEMA/UL Type 3R) Isolation Transformer
kW HP Amps kVA
Catalog Number
208 Volt Primary
2.2 3.0 12 5.0 1321-3TW005-XX
4.0 5.0 17.5 7.5 1321-3TW007-XX
5.5 7.5 24 11 1321-3TW011-XX
7.5 10 33 14 1321-3TW014-XX
11 15 49 20 1321-3TW020-XX
15 20 65 27 1321-3TW027-XX
18.5 25 75 34 1321-3TW034-XX
PowerFlex 400 Ratings IP32 (NEMA/UL Type 3R) Isolation Transformer
kW HP Amps kVA
Catalog Number
230 Volt Primary 460 Volt Primary 575 Volt Primary
2.2 3.0 12 5.0 1321-3TW005-AA 1321-3TW005-BA 1321-3TW005-CA
3.7 5.0 17.5 7.5 1321-3TW007-AA 1321-3TW007-BA 1321-3TW007-CA
5.5 7.5 24 11 1321-3TW011-AA 1321-3TW011-BA 1321-3TW011-CA
7.5 10 33 14 1321-3TW014-AA 1321-3TW014-BA 1321-3TW014-CA
11 15 49 20 1321-3TW020-AA 1321-3TW020-BA 1321-3TW020-CA
15 20 65 27 1321-3TW027-AA 1321-3TW027-BA 1321-3TW027-CA
18.5 25 75 34 1321-3TW034-AA 1321-3TW034-BA 1321-3TW034-CA
22 30 90 40 1321-3TW040-AA 1321-3TW040-BA 1321-3TW040-CA
30 40 120 51 1321-3TW051-AA 1321-3TW051-BA 1321-3TW051-CA
37 50 145 63 1321-3TH063-AA 1321-3TH063-BA –
PowerFlex 400 Drive Ratings IP32 (NEMA/UL Type 3R) Isolation Transformer
kW HP Amps kVA
Catalog Number
230 Volt Primary 460 Volt Primary 575 Volt Primary
2.2 3.0 6.0 5.0 1321-3TW005-AB 1321-3TW005-BB 1321-3TW005-CB
4.0 5.0 8.7 7.5 1321-3TW007-AB 1321-3TW007-BB 1321-3TW007-CB
5.5 7.5 12 11 1321-3TW011-AB 1321-3TW011-BB 1321-3TW011-CB
7.5 10 17 14 1321-3TW014-AB 1321-3TW014-BB 1321-3TW014-CB
11 15 22 20 1321-3TW020-AB 1321-3TW020-BB 1321-3TW020-CB
15 20 30 27 1321-3TW027-AB 1321-3TW027-BB 1321-3TW027-CB
18.5 25 38 34 1321-3TW034-AB 1321-3TW034-BB 1321-3TW034-CB
22 30 45.5 40 1321-3TW040-AB 1321-3TW040-BB 1321-3TW040-CB
30 40 60 51 1321-3TW051-AB 1321-3TW051-BB 1321-3TW051-CB
37 50 72 63 1321-3TH063-AB 1321-3TH063-BB –
45 60 88 75 1321-3TH075-AB 1321-3TH075-BB –
55 75 105 93 1321-3TH093-AB 1321-3TH093-BB –
75 100 142 118 1321-3TH118-AB 1321-3TH118-BB –
90 125 170 145 1321-3TH145-AB 1321-3TH145-BB –
110 150 208 175 1321-3TH175-AB 1321-3TH175-BB –
132 200 260 200 1321-3TH220-AB 1321-3TH220-BB –
160 250 310 245 1321-3TH275-AB 1321-3TH275-BB –
200 300 370 305 1321-3TH330-AB 1321-3TH330-BB –
250 350 460 390 1321-3TH440-AB 1321-3TH440-BB –

Allen-Bradley PowerFlex 400 Specifications

General

Input Voltage	200-240VAC, 380-480VAC, 500-600VAC
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Communication	EtherNet/IP
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5-95% non-condensing
Enclosure Rating	IP20
Horsepower	0.5-20 HP
Control Method	V/Hz, Sensorless Vector Control
