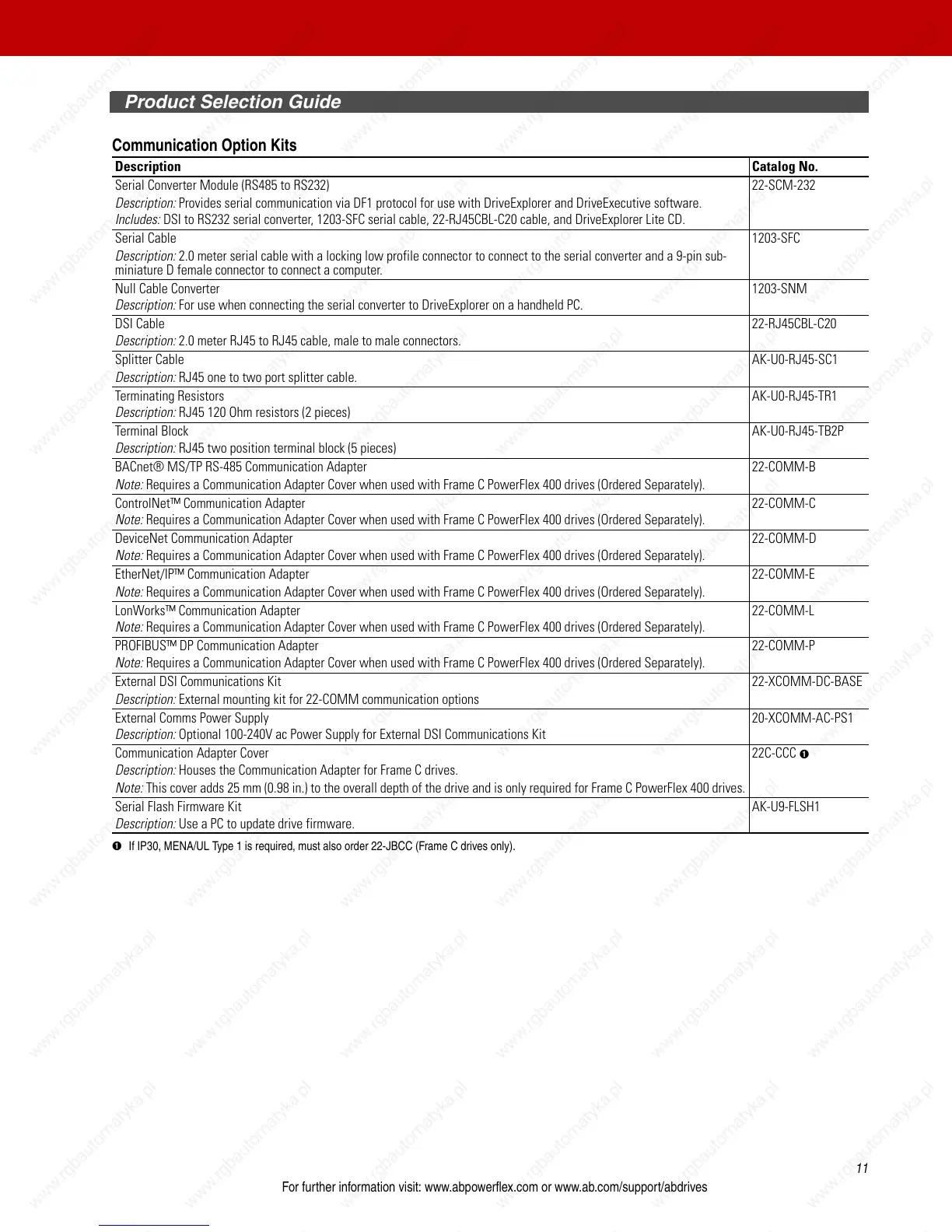

Product Selection Guide
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Communication Option Kits
➊ If IP30, MENA/UL Type 1 is required, must also order 22-JBCC (Frame C drives only).
Description Catalog No.
Serial Converter Module (RS485 to RS232)
Description: Provides serial communication via DF1 protocol for use with DriveExplorer and DriveExecutive software.
Includes: DSI to RS232 serial converter, 1203-SFC serial cable, 22-RJ45CBL-C20 cable, and DriveExplorer Lite CD.
22-SCM-232
Serial Cable
Description: 2.0 meter serial cable with a locking low profile connector to connect to the serial converter and a 9-pin sub-
miniature D female connector to connect a computer.
1203-SFC
Null Cable Converter
Description: For use when connecting the serial converter to DriveExplorer on a handheld PC.
1203-SNM
DSI Cable
Description: 2.0 meter RJ45 to RJ45 cable, male to male connectors.
22-RJ45CBL-C20
Splitter Cable
Description: RJ45 one to two port splitter cable.
AK-U0-RJ45-SC1
Terminating Resistors
Description: RJ45 120 Ohm resistors (2 pieces)
AK-U0-RJ45-TR1
Terminal Block
Description: RJ45 two position terminal block (5 pieces)
AK-U0-RJ45-TB2P
BACnet® MS/TP RS-485 Communication Adapter
Note: Requires a Communication Adapter Cover when used with Frame C PowerFlex 400 drives (Ordered Separately).
22-COMM-B
ControlNet™ Communication Adapter
Note: Requires a Communication Adapter Cover when used with Frame C PowerFlex 400 drives (Ordered Separately).
22-COMM-C
DeviceNet Communication Adapter
Note: Requires a Communication Adapter Cover when used with Frame C PowerFlex 400 drives (Ordered Separately).
22-COMM-D
EtherNet/IP™ Communication Adapter
Note: Requires a Communication Adapter Cover when used with Frame C PowerFlex 400 drives (Ordered Separately).
22-COMM-E
LonWorks™ Communication Adapter
Note: Requires a Communication Adapter Cover when used with Frame C PowerFlex 400 drives (Ordered Separately).
22-COMM-L
PROFIBUS™ DP Communication Adapter
Note: Requires a Communication Adapter Cover when used with Frame C PowerFlex 400 drives (Ordered Separately).
22-COMM-P
External DSI Communications Kit
Description: External mounting kit for 22-COMM communication options
22-XCOMM-DC-BASE
External Comms Power Supply
Description: Optional 100-240V ac Power Supply for External DSI Communications Kit
20-XCOMM-AC-PS1
Communication Adapter Cover
Description: Houses the Communication Adapter for Frame C drives.
Note: This cover adds 25 mm (0.98 in.) to the overall depth of the drive and is only required for Frame C PowerFlex 400 drives.
22C-CCC
➊
Serial Flash Firmware Kit
Description: Use a PC to update drive firmware.
AK-U9-FLSH1

Allen-Bradley PowerFlex 400 Specifications

General

Input Voltage	200-240VAC, 380-480VAC, 500-600VAC
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Communication	EtherNet/IP
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5-95% non-condensing
Enclosure Rating	IP20
Horsepower	0.5-20 HP
Control Method	V/Hz, Sensorless Vector Control
