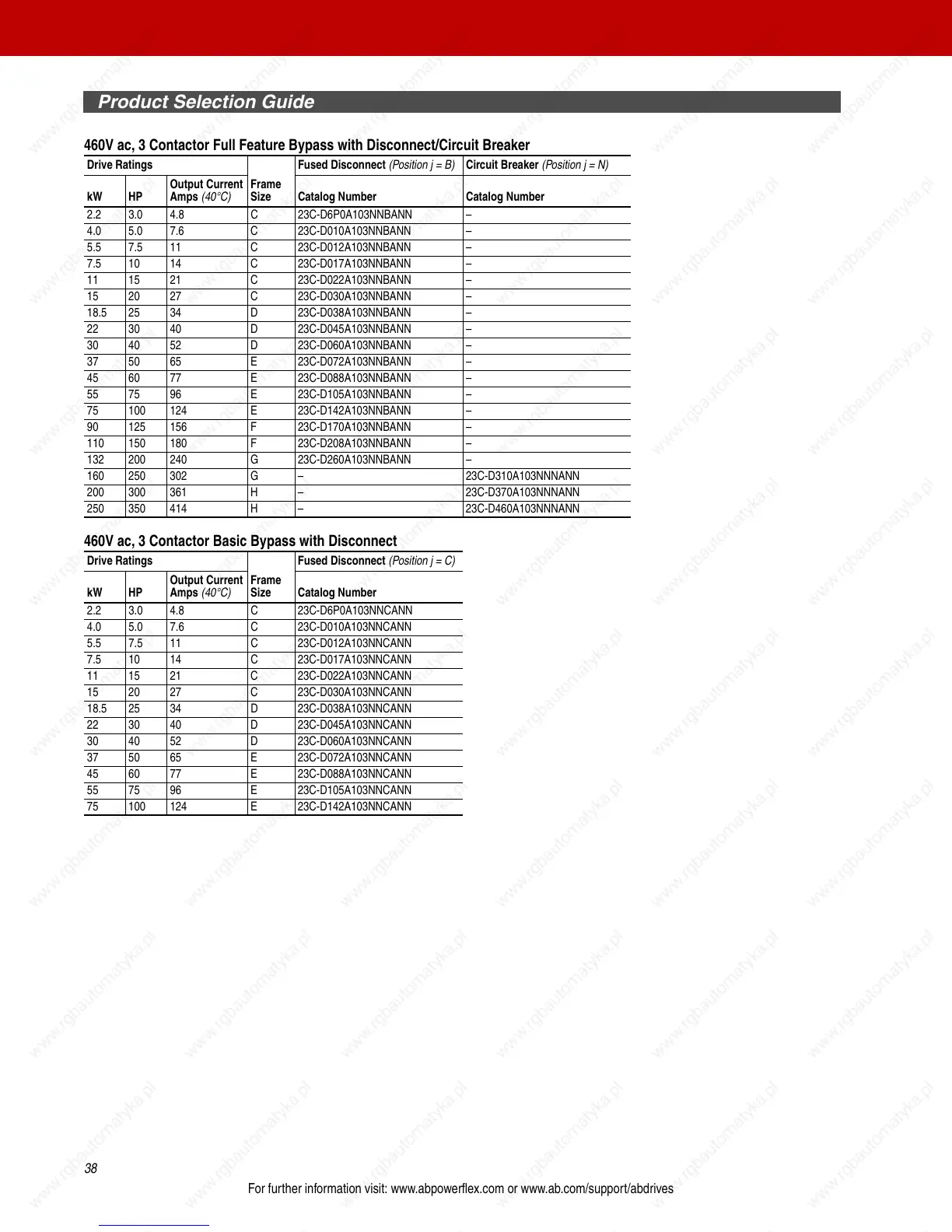

Product Selection Guide
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
460V ac, 3 Contactor Full Feature Bypass with Disconnect/Circuit Breaker
460V ac, 3 Contactor Basic Bypass with Disconnect
Drive Ratings
Frame
Size
Fused Disconnect (Position j = B) Circuit Breaker (Position j = N)
kW HP
Output Current
Amps (40°C) Catalog Number Catalog Number
2.2 3.0 4.8 C 23C-D6P0A103NNBANN –
4.0 5.0 7.6 C 23C-D010A103NNBANN –
5.5 7.5 11 C 23C-D012A103NNBANN –
7.5 10 14 C 23C-D017A103NNBANN –
11 15 21 C 23C-D022A103NNBANN –
15 20 27 C 23C-D030A103NNBANN –
18.5 25 34 D 23C-D038A103NNBANN –
22 30 40 D 23C-D045A103NNBANN –
30 40 52 D 23C-D060A103NNBANN –
37 50 65 E 23C-D072A103NNBANN –
45 60 77 E 23C-D088A103NNBANN –
55 75 96 E 23C-D105A103NNBANN –
75 100 124 E 23C-D142A103NNBANN –
90 125 156 F 23C-D170A103NNBANN –
110 150 180 F 23C-D208A103NNBANN –
132 200 240 G 23C-D260A103NNBANN –
160 250 302 G – 23C-D310A103NNNANN
200 300 361 H – 23C-D370A103NNNANN
250 350 414 H – 23C-D460A103NNNANN
Drive Ratings
Frame
Size
Fused Disconnect (Position j = C)
kW HP
Output Current
Amps (40°C) Catalog Number
2.2 3.0 4.8 C 23C-D6P0A103NNCANN
4.0 5.0 7.6 C 23C-D010A103NNCANN
5.5 7.5 11 C 23C-D012A103NNCANN
7.5 10 14 C 23C-D017A103NNCANN
11 15 21 C 23C-D022A103NNCANN
15 20 27 C 23C-D030A103NNCANN
18.5 25 34 D 23C-D038A103NNCANN
22 30 40 D 23C-D045A103NNCANN
30 40 52 D 23C-D060A103NNCANN
37 50 65 E 23C-D072A103NNCANN
45 60 77 E 23C-D088A103NNCANN
55 75 96 E 23C-D105A103NNCANN
75 100 124 E 23C-D142A103NNCANN
