39

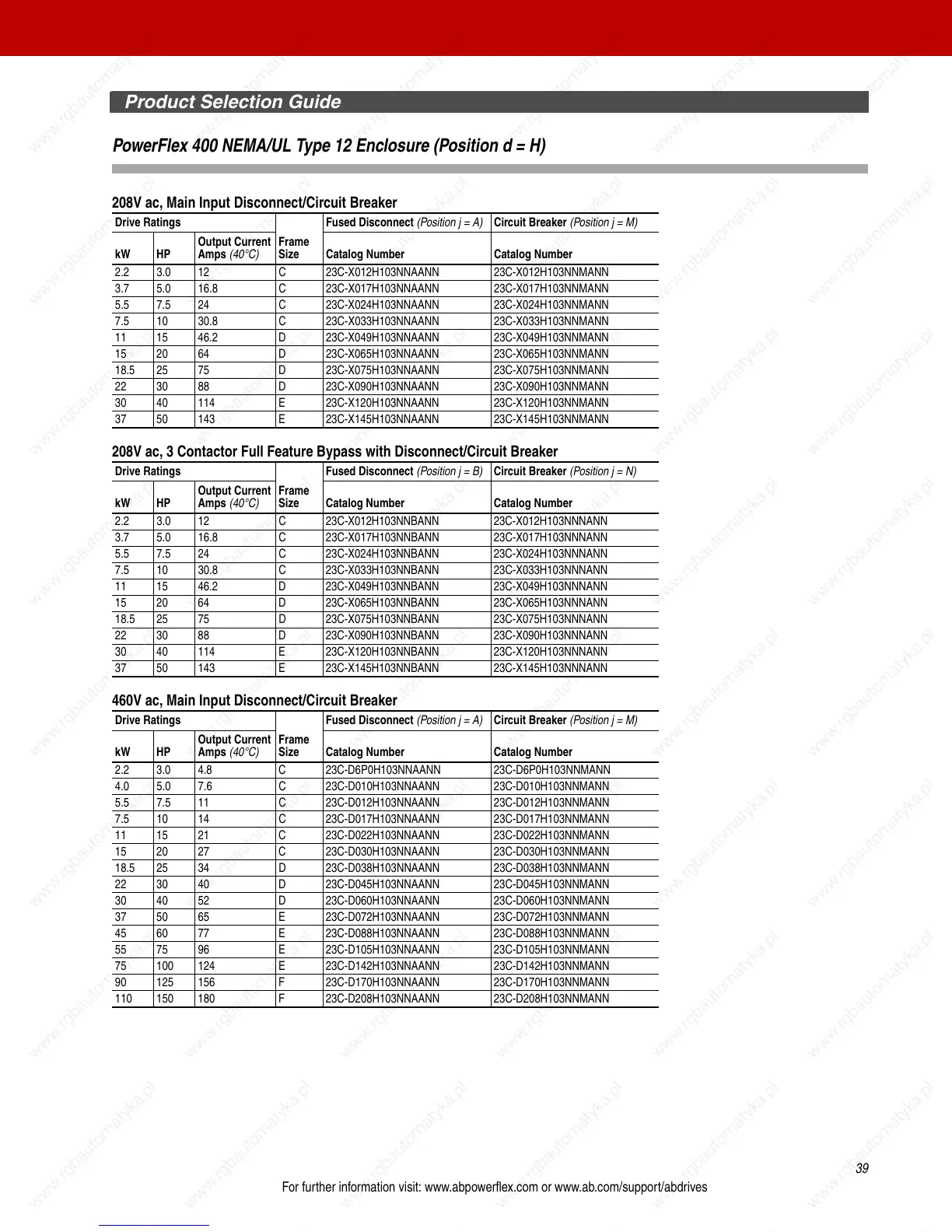

Product Selection Guide
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
PowerFlex 400 NEMA/UL Type 12 Enclosure (Position d = H)
208V ac, Main Input Disconnect/Circuit Breaker
208V ac, 3 Contactor Full Feature Bypass with Disconnect/Circuit Breaker
460V ac, Main Input Disconnect/Circuit Breaker
Drive Ratings
Frame
Size
Fused Disconnect (Position j = A) Circuit Breaker (Position j = M)
kW HP
Output Current
Amps (40°C) Catalog Number Catalog Number
2.2 3.0 12 C 23C-X012H103NNAANN 23C-X012H103NNMANN
3.7 5.0 16.8 C 23C-X017H103NNAANN 23C-X017H103NNMANN
5.5 7.5 24 C 23C-X024H103NNAANN 23C-X024H103NNMANN
7.5 10 30.8 C 23C-X033H103NNAANN 23C-X033H103NNMANN
11 15 46.2 D 23C-X049H103NNAANN 23C-X049H103NNMANN
15 20 64 D 23C-X065H103NNAANN 23C-X065H103NNMANN
18.5 25 75 D 23C-X075H103NNAANN 23C-X075H103NNMANN
22 30 88 D 23C-X090H103NNAANN 23C-X090H103NNMANN
30 40 114 E 23C-X120H103NNAANN 23C-X120H103NNMANN
37 50 143 E 23C-X145H103NNAANN 23C-X145H103NNMANN
Drive Ratings
Frame
Size
Fused Disconnect (Position j = B) Circuit Breaker (Position j = N)
kW HP
Output Current
Amps (40°C) Catalog Number Catalog Number
2.2 3.0 12 C 23C-X012H103NNBANN 23C-X012H103NNNANN
3.7 5.0 16.8 C 23C-X017H103NNBANN 23C-X017H103NNNANN
5.5 7.5 24 C 23C-X024H103NNBANN 23C-X024H103NNNANN
7.5 10 30.8 C 23C-X033H103NNBANN 23C-X033H103NNNANN
11 15 46.2 D 23C-X049H103NNBANN 23C-X049H103NNNANN
15 20 64 D 23C-X065H103NNBANN 23C-X065H103NNNANN
18.5 25 75 D 23C-X075H103NNBANN 23C-X075H103NNNANN
22 30 88 D 23C-X090H103NNBANN 23C-X090H103NNNANN
30 40 114 E 23C-X120H103NNBANN 23C-X120H103NNNANN
37 50 143 E 23C-X145H103NNBANN 23C-X145H103NNNANN
Drive Ratings
Frame
Size
Fused Disconnect (Position j = A) Circuit Breaker (Position j = M)
kW HP
Output Current
Amps (40°C) Catalog Number Catalog Number
2.2 3.0 4.8 C 23C-D6P0H103NNAANN 23C-D6P0H103NNMANN
4.0 5.0 7.6 C 23C-D010H103NNAANN 23C-D010H103NNMANN
5.5 7.5 11 C 23C-D012H103NNAANN 23C-D012H103NNMANN
7.5 10 14 C 23C-D017H103NNAANN 23C-D017H103NNMANN
11 15 21 C 23C-D022H103NNAANN 23C-D022H103NNMANN
15 20 27 C 23C-D030H103NNAANN 23C-D030H103NNMANN
18.5 25 34 D 23C-D038H103NNAANN 23C-D038H103NNMANN
22 30 40 D 23C-D045H103NNAANN 23C-D045H103NNMANN
30 40 52 D 23C-D060H103NNAANN 23C-D060H103NNMANN
37 50 65 E 23C-D072H103NNAANN 23C-D072H103NNMANN
45 60 77 E 23C-D088H103NNAANN 23C-D088H103NNMANN
55 75 96 E 23C-D105H103NNAANN 23C-D105H103NNMANN
75 100 124 E 23C-D142H103NNAANN 23C-D142H103NNMANN
90 125 156 F 23C-D170H103NNAANN 23C-D170H103NNMANN
110 150 180 F 23C-D208H103NNAANN 23C-D208H103NNMANN
