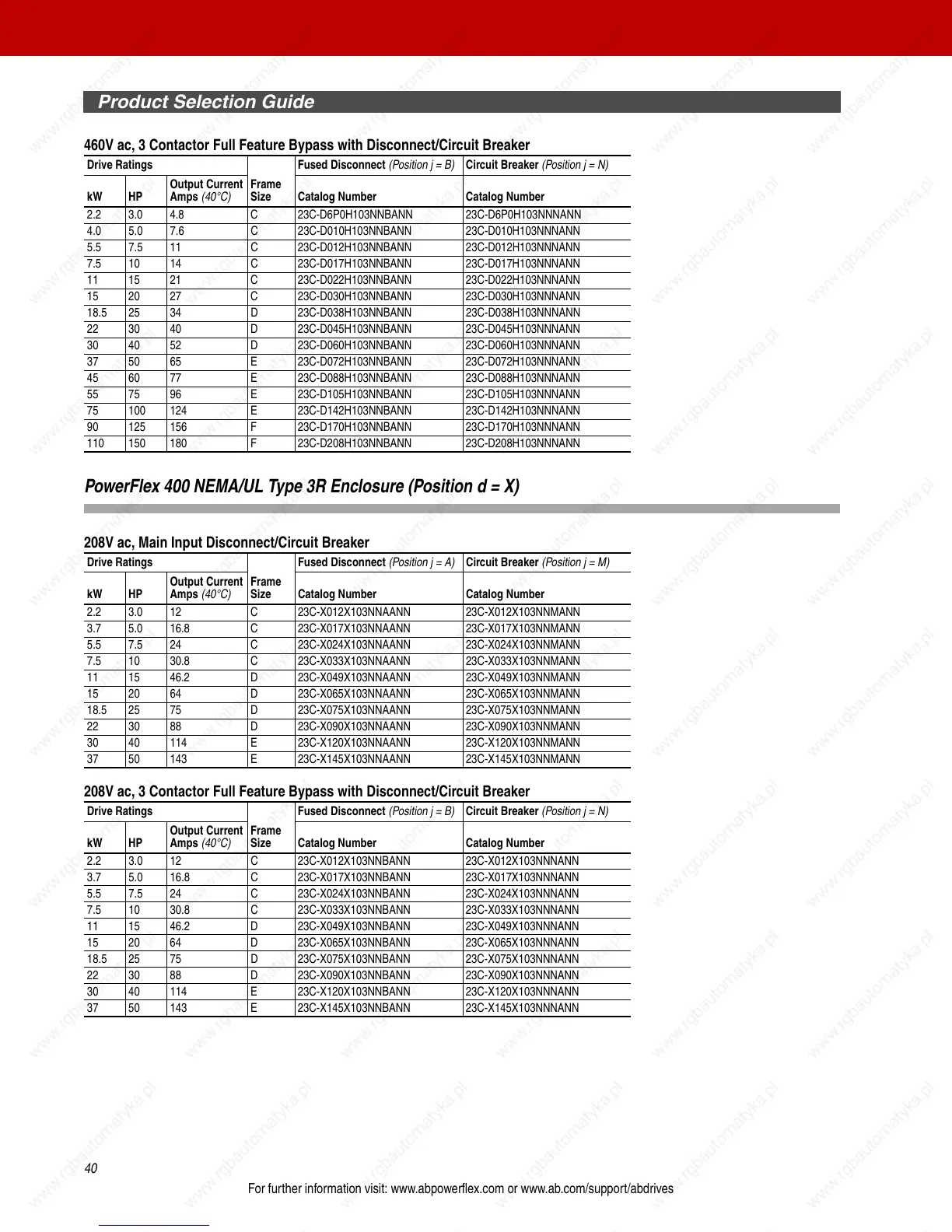

Product Selection Guide
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
460V ac, 3 Contactor Full Feature Bypass with Disconnect/Circuit Breaker
PowerFlex 400 NEMA/UL Type 3R Enclosure (Position d = X)
208V ac, Main Input Disconnect/Circuit Breaker
208V ac, 3 Contactor Full Feature Bypass with Disconnect/Circuit Breaker
Drive Ratings
Frame
Size
Fused Disconnect (Position j = B) Circuit Breaker (Position j = N)
kW HP
Output Current
Amps (40°C) Catalog Number Catalog Number
2.2 3.0 4.8 C 23C-D6P0H103NNBANN 23C-D6P0H103NNNANN
4.0 5.0 7.6 C 23C-D010H103NNBANN 23C-D010H103NNNANN
5.5 7.5 11 C 23C-D012H103NNBANN 23C-D012H103NNNANN
7.5 10 14 C 23C-D017H103NNBANN 23C-D017H103NNNANN
11 15 21 C 23C-D022H103NNBANN 23C-D022H103NNNANN
15 20 27 C 23C-D030H103NNBANN 23C-D030H103NNNANN
18.5 25 34 D 23C-D038H103NNBANN 23C-D038H103NNNANN
22 30 40 D 23C-D045H103NNBANN 23C-D045H103NNNANN
30 40 52 D 23C-D060H103NNBANN 23C-D060H103NNNANN
37 50 65 E 23C-D072H103NNBANN 23C-D072H103NNNANN
45 60 77 E 23C-D088H103NNBANN 23C-D088H103NNNANN
55 75 96 E 23C-D105H103NNBANN 23C-D105H103NNNANN
75 100 124 E 23C-D142H103NNBANN 23C-D142H103NNNANN
90 125 156 F 23C-D170H103NNBANN 23C-D170H103NNNANN
110 150 180 F 23C-D208H103NNBANN 23C-D208H103NNNANN
Drive Ratings
Frame
Size
Fused Disconnect (Position j = A) Circuit Breaker (Position j = M)
kW HP
Output Current
Amps (40°C) Catalog Number Catalog Number
2.2 3.0 12 C 23C-X012X103NNAANN 23C-X012X103NNMANN
3.7 5.0 16.8 C 23C-X017X103NNAANN 23C-X017X103NNMANN
5.5 7.5 24 C 23C-X024X103NNAANN 23C-X024X103NNMANN
7.5 10 30.8 C 23C-X033X103NNAANN 23C-X033X103NNMANN
11 15 46.2 D 23C-X049X103NNAANN 23C-X049X103NNMANN
15 20 64 D 23C-X065X103NNAANN 23C-X065X103NNMANN
18.5 25 75 D 23C-X075X103NNAANN 23C-X075X103NNMANN
22 30 88 D 23C-X090X103NNAANN 23C-X090X103NNMANN
30 40 114 E 23C-X120X103NNAANN 23C-X120X103NNMANN
37 50 143 E 23C-X145X103NNAANN 23C-X145X103NNMANN
Drive Ratings
Frame
Size
Fused Disconnect (Position j = B) Circuit Breaker (Position j = N)
kW HP
Output Current
Amps (40°C) Catalog Number Catalog Number
2.2 3.0 12 C 23C-X012X103NNBANN 23C-X012X103NNNANN
3.7 5.0 16.8 C 23C-X017X103NNBANN 23C-X017X103NNNANN
5.5 7.5 24 C 23C-X024X103NNBANN 23C-X024X103NNNANN
7.5 10 30.8 C 23C-X033X103NNBANN 23C-X033X103NNNANN
11 15 46.2 D 23C-X049X103NNBANN 23C-X049X103NNNANN
15 20 64 D 23C-X065X103NNBANN 23C-X065X103NNNANN
18.5 25 75 D 23C-X075X103NNBANN 23C-X075X103NNNANN
22 30 88 D 23C-X090X103NNBANN 23C-X090X103NNNANN
30 40 114 E 23C-X120X103NNBANN 23C-X120X103NNNANN
37 50 143 E 23C-X145X103NNBANN 23C-X145X103NNNANN

Allen-Bradley PowerFlex 400 Specifications

General

Input Voltage	200-240VAC, 380-480VAC, 500-600VAC
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Communication	EtherNet/IP
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5-95% non-condensing
Enclosure Rating	IP20
Horsepower	0.5-20 HP
Control Method	V/Hz, Sensorless Vector Control
