Allen-Bradley PowerFlex 400 Technical Data

41
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives

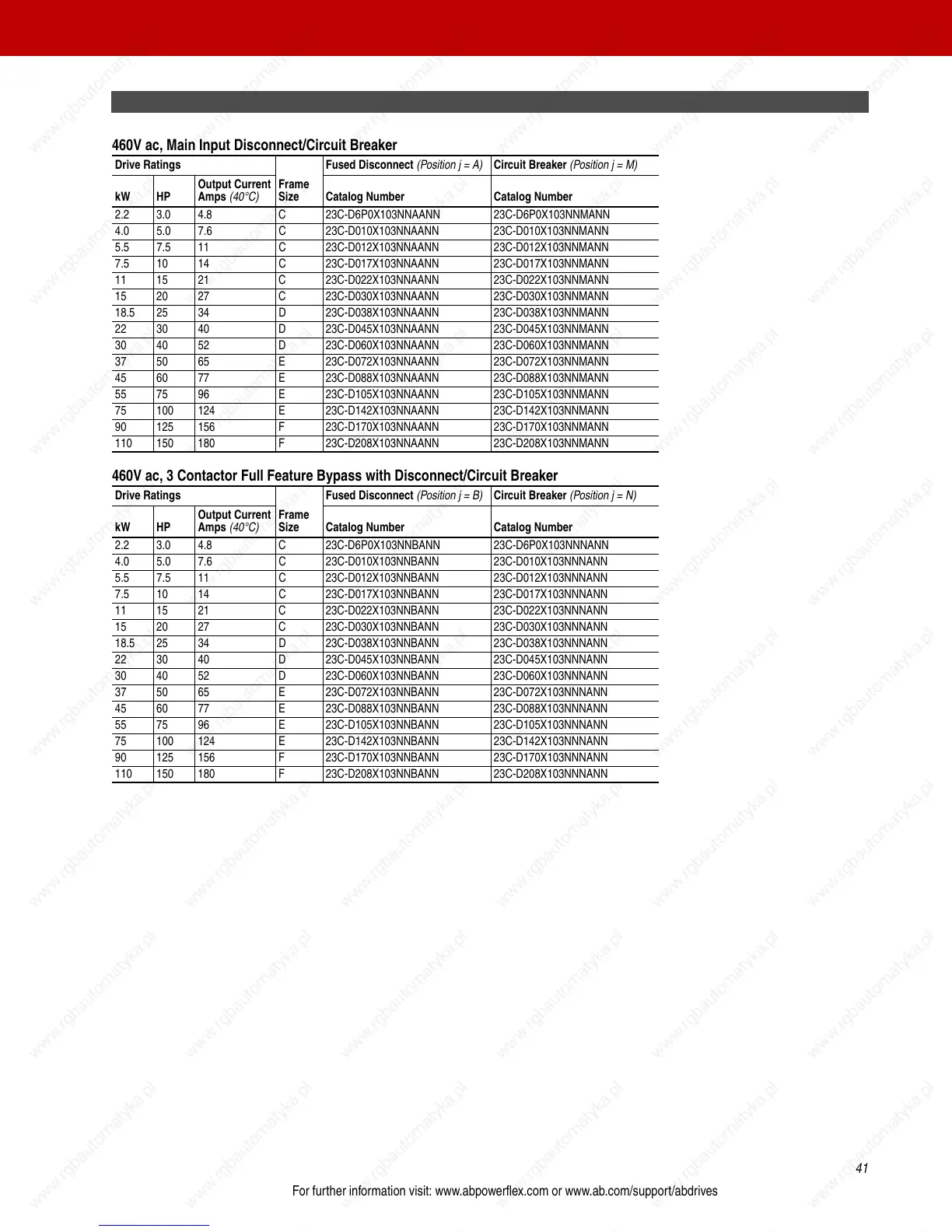

460V ac, Main Input Disconnect/Circuit Breaker
460V ac, 3 Contactor Full Feature Bypass with Disconnect/Circuit Breaker
Drive Ratings
Frame
Size
Fused Disconnect (Position j = A) Circuit Breaker (Position j = M)
kW HP
Output Current
Amps (40°C) Catalog Number Catalog Number
2.2 3.0 4.8 C 23C-D6P0X103NNAANN 23C-D6P0X103NNMANN
4.0 5.0 7.6 C 23C-D010X103NNAANN 23C-D010X103NNMANN
5.5 7.5 11 C 23C-D012X103NNAANN 23C-D012X103NNMANN
7.5 10 14 C 23C-D017X103NNAANN 23C-D017X103NNMANN
11 15 21 C 23C-D022X103NNAANN 23C-D022X103NNMANN
15 20 27 C 23C-D030X103NNAANN 23C-D030X103NNMANN
18.5 25 34 D 23C-D038X103NNAANN 23C-D038X103NNMANN
22 30 40 D 23C-D045X103NNAANN 23C-D045X103NNMANN
30 40 52 D 23C-D060X103NNAANN 23C-D060X103NNMANN
37 50 65 E 23C-D072X103NNAANN 23C-D072X103NNMANN
45 60 77 E 23C-D088X103NNAANN 23C-D088X103NNMANN
55 75 96 E 23C-D105X103NNAANN 23C-D105X103NNMANN
75 100 124 E 23C-D142X103NNAANN 23C-D142X103NNMANN
90 125 156 F 23C-D170X103NNAANN 23C-D170X103NNMANN
110 150 180 F 23C-D208X103NNAANN 23C-D208X103NNMANN
Drive Ratings
Frame
Size
Fused Disconnect (Position j = B) Circuit Breaker (Position j = N)
kW HP
Output Current
Amps (40°C) Catalog Number Catalog Number
2.2 3.0 4.8 C 23C-D6P0X103NNBANN 23C-D6P0X103NNNANN
4.0 5.0 7.6 C 23C-D010X103NNBANN 23C-D010X103NNNANN
5.5 7.5 11 C 23C-D012X103NNBANN 23C-D012X103NNNANN
7.5 10 14 C 23C-D017X103NNBANN 23C-D017X103NNNANN
11 15 21 C 23C-D022X103NNBANN 23C-D022X103NNNANN
15 20 27 C 23C-D030X103NNBANN 23C-D030X103NNNANN
18.5 25 34 D 23C-D038X103NNBANN 23C-D038X103NNNANN
22 30 40 D 23C-D045X103NNBANN 23C-D045X103NNNANN
30 40 52 D 23C-D060X103NNBANN 23C-D060X103NNNANN
37 50 65 E 23C-D072X103NNBANN 23C-D072X103NNNANN
45 60 77 E 23C-D088X103NNBANN 23C-D088X103NNNANN
55 75 96 E 23C-D105X103NNBANN 23C-D105X103NNNANN
75 100 124 E 23C-D142X103NNBANN 23C-D142X103NNNANN
90 125 156 F 23C-D170X103NNBANN 23C-D170X103NNNANN
110 150 180 F 23C-D208X103NNBANN 23C-D208X103NNNANN

Allen-Bradley PowerFlex 400 Specifications

General

Input Voltage	200-240VAC, 380-480VAC, 500-600VAC
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Communication	EtherNet/IP
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5-95% non-condensing
Enclosure Rating	IP20
Horsepower	0.5-20 HP
Control Method	V/Hz, Sensorless Vector Control
