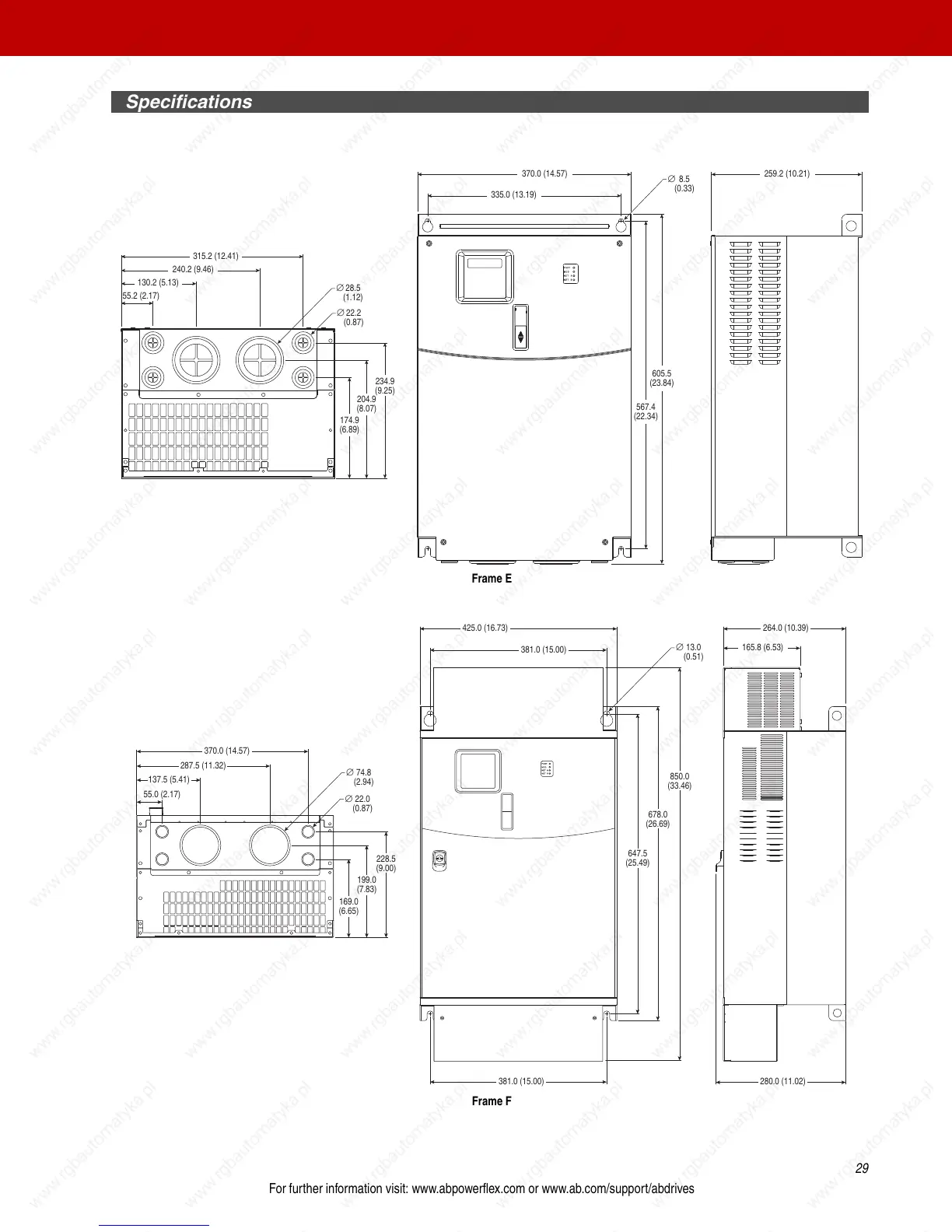

Specifications
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
130.2 (5.13)
240.2 (9.46)
315.2 (12.41)
55.2 (2.17)
174.9
(6.89)
234.9
(9.25)
204.9
(8.07)
∅ 22.2
(0.87)
∅ 28.5
(1.12)
567.4
(22.34)
605.5
(23.84)
335.0 (13.19)
370.0 (14.57) 259.2 (10.21)
∅ 8.5
(0.33)
137.5 (5.41)
287.5 (11.32)
370.0 (14.57)
55.0 (2.17)
169.0
(6.65)
228.5
(9.00)
199.0
(7.83)
∅ 74.8
(2.94)
∅ 22.0
(0.87)
381.0 (15.00)
381.0 (15.00)
425.0 (16.73)
∅ 13.0
(0.51)
850.0
(33.46)
678.0
(26.69)
647.5
(25.49)
264.0 (10.39)
165.8 (6.53)
280.0 (11.02)
Frame F
Frame E
