Allen-Bradley PowerFlex 400 Technical Data

31

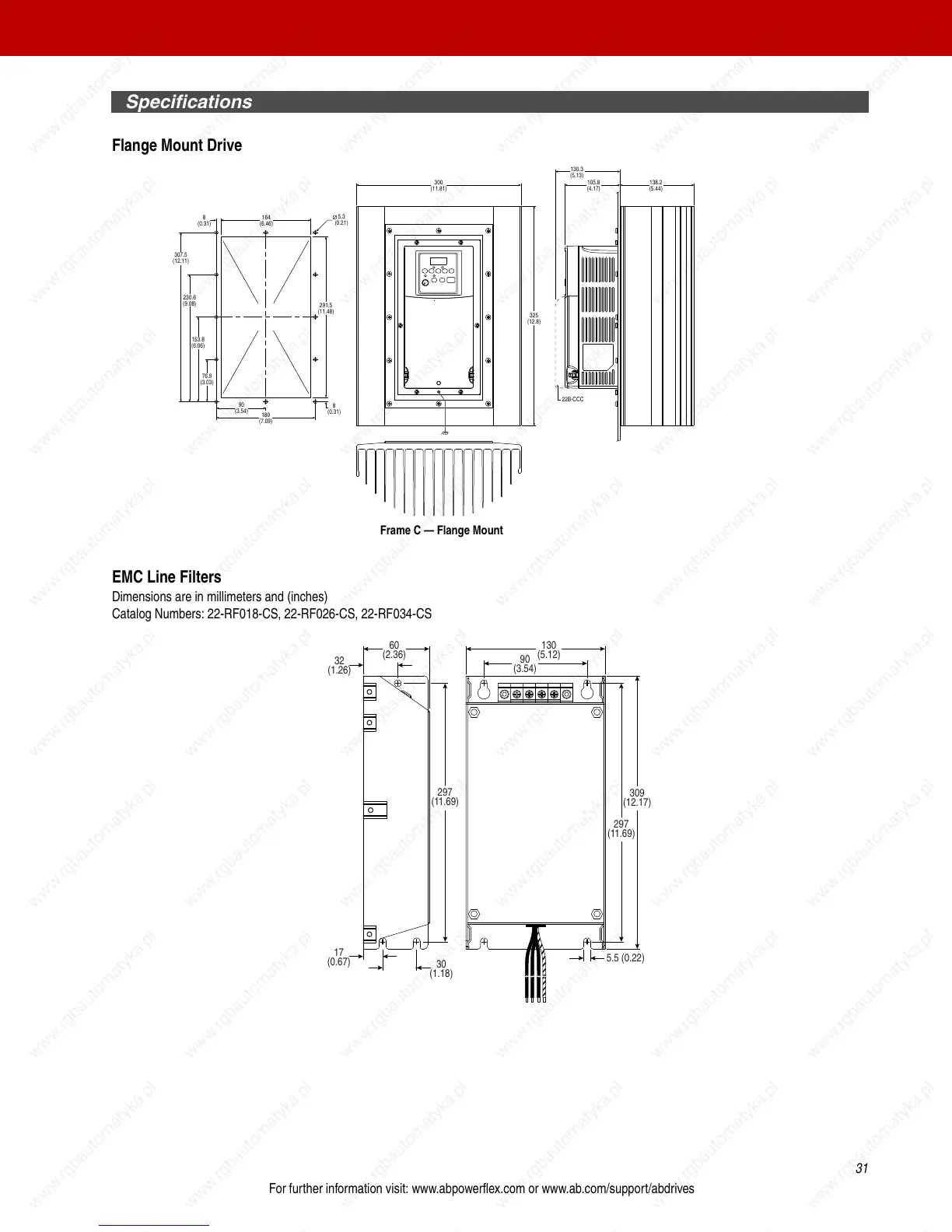

Specifications
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Flange Mount Drive
EMC Line Filters
Dimensions are in millimeters and (inches)
Catalog Numbers: 22-RF018-CS, 22-RF026-CS, 22-RF034-CS
138.2
(5.44)
105.8
(4.17)
325
(12.8)
300
(11.81)
130.3
(5.13)
291.5
(11.48)
164
(6.46)
180
(7.09)
90
(3.54)
307.5
(12.11)
230.6
(9.08)
153.8
(6.06)
76.9
(3.03)
8
(0.31)
8
(0.31)
5.3
(0.21)
22B-CCC
Frame C — Flange Mount
5.5 (0.22)
17
(0.67)
30
(1.18)
90
(3.54)
130
(5.12)
60
(2.36)
32
(1.26)
309
(12.17)
297
(11.69)
297
(11.69)

Allen-Bradley PowerFlex 400 Specifications

General

Input Voltage	200-240VAC, 380-480VAC, 500-600VAC
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Communication	EtherNet/IP
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5-95% non-condensing
Enclosure Rating	IP20
Horsepower	0.5-20 HP
Control Method	V/Hz, Sensorless Vector Control
