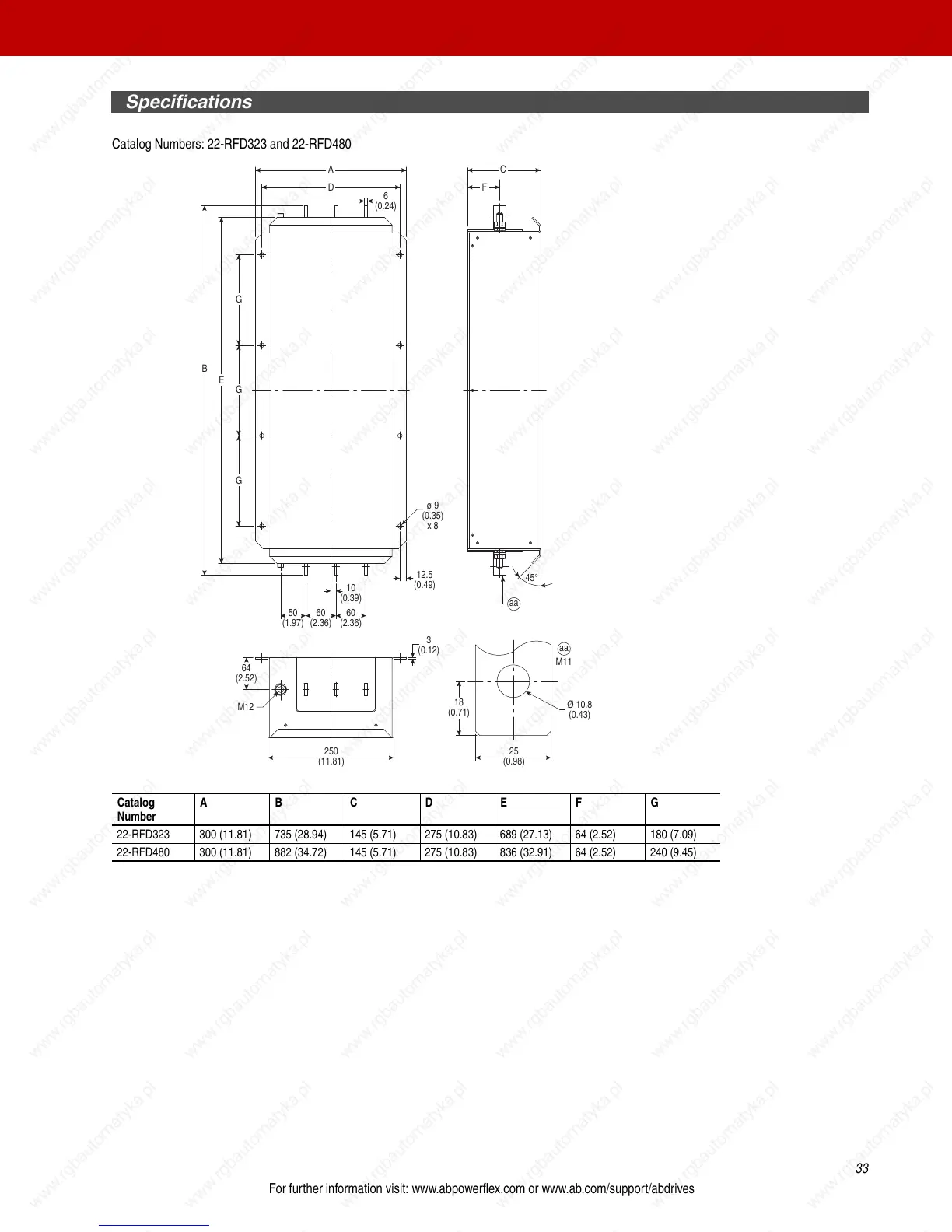

Specifications
For further information visit: www.abpowerflex.com or www.ab.com/support/abdrives
Catalog Numbers: 22-RFD323 and 22-RFD480
Catalog
Number
ABCDEFG
22-RFD323 300 (11.81) 735 (28.94) 145 (5.71) 275 (10.83) 689 (27.13) 64 (2.52) 180 (7.09)
22-RFD480 300 (11.81) 882 (34.72) 145 (5.71) 275 (10.83) 836 (32.91) 64 (2.52) 240 (9.45)
aa
aa
M11
Ø 10.8
(0.43)
45°
A
D
C
F
250
(11.81)
25
(0.98)
60
(2.36)
60
(2.36)
10
(0.39)
50
(1.97)
12.5
(0.49)
6
(0.24)
G
G
G
E
B
M12
ø 9
(0.35)
x 8
3
(0.12)
64
(2.52)
18
(0.71)

Allen-Bradley PowerFlex 400 Specifications

General

Input Voltage	200-240VAC, 380-480VAC, 500-600VAC
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Communication	EtherNet/IP
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5-95% non-condensing
Enclosure Rating	IP20
Horsepower	0.5-20 HP
Control Method	V/Hz, Sensorless Vector Control
