Chapter 8 Configuration Examples for a Kinetix Drive
7. From the Load Feedback Device pull-down menu, choose Aux
Feedback Port.
8. To apply your changes and return to the Load Feedback dialog box, click
OK.

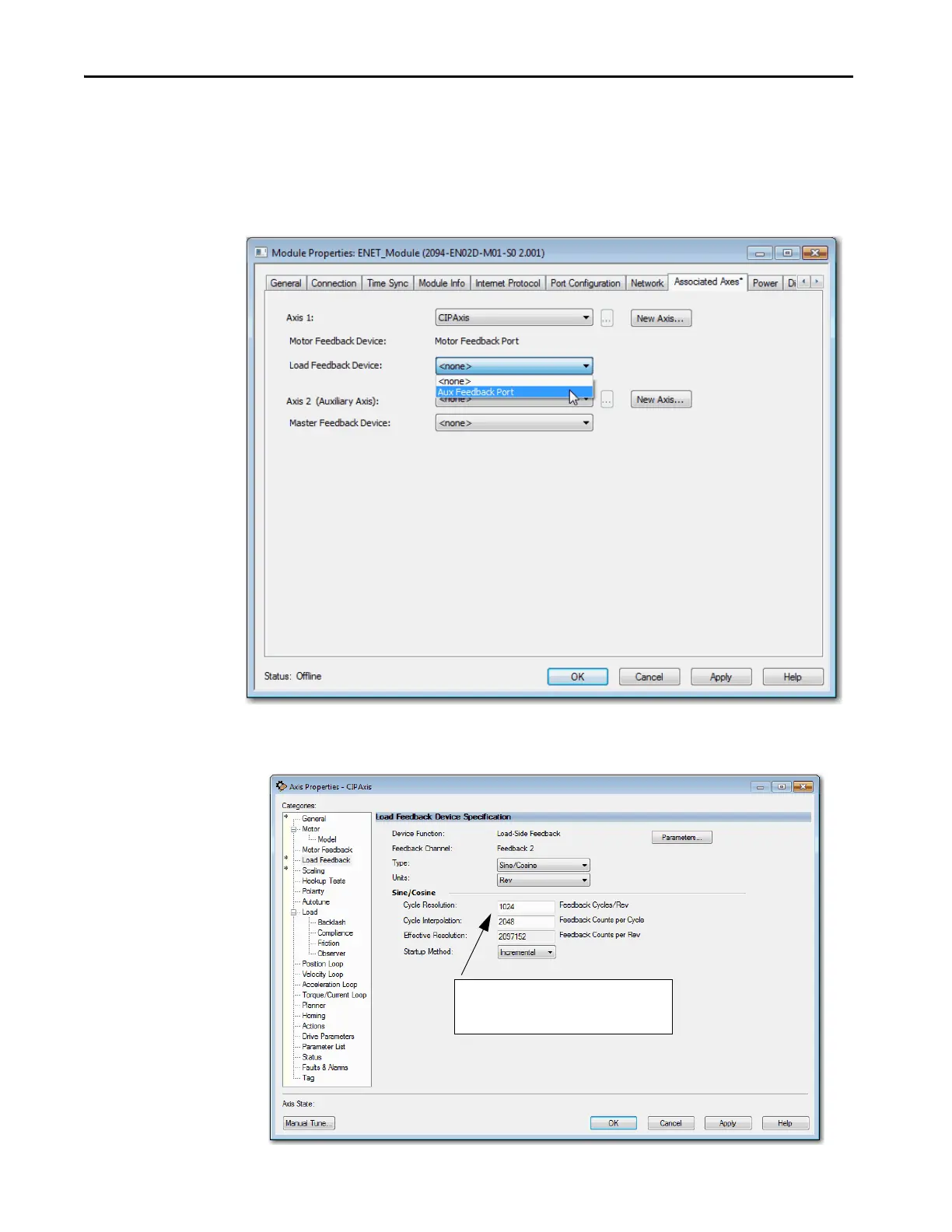

Figure 31 - Example 2: Kinetix 6500 Module Properties, Associated Axis Tab
9. Choose the Feedback Type and Units.
Figure 32 - Example 2: Position Loop with Dual Feedback, Load Feedback Dialog Box
Default values for Resolution and Interpolation
are automatically provided. You must enter the
actual resolution of load-side feedback device.
